Item Name: 60W LED high bay lights
Model No.: CL-HBL001A60-01
Total Lumen: 7,200lm, 120lm/w
Product Size: Φ345.4*321.6 mm
LED Driver: Meanwell HLG or MOSO
LED chips: 60pcs Philips Lumileds 3030
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95 THD: <15% Ra: >80
IP rating: IP44
Color Temperature: 2700-6500K optional
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
Item number: CL-HBL001A60-01

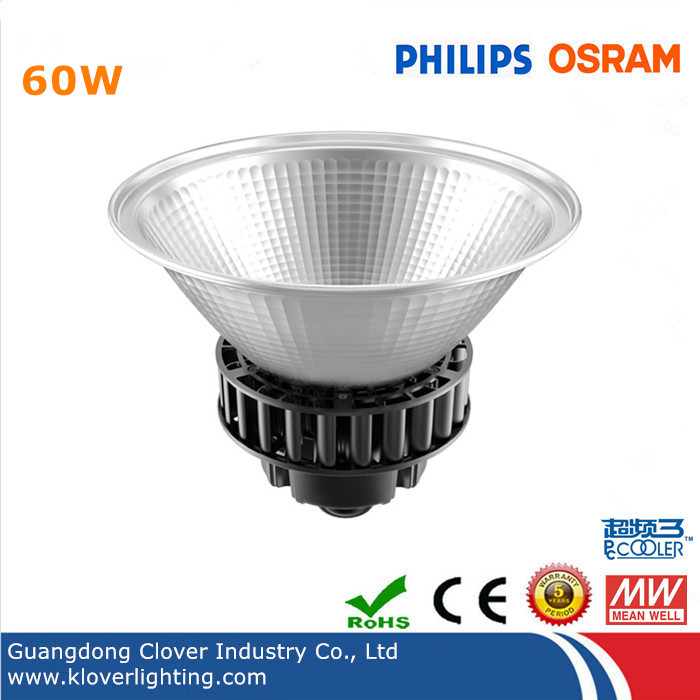

Specification for Philips SMD3030 60W LED high bay lights
| Item Name | 60W LED High Bay Light |
| Model No. | CL-HBL001A60-01 |
| Power | 60W |
| Total Lumen | 7,200lm |
| Product Size(mm) | Φ345.4*321.6 |
| Beam Angle | 25°, 60°, 90°, 100°, 110° optional |
| Input Voltage | AC85-265V 50/60HZ |
| Power Factor | > 0.95 |
| THD | <15% |
| Lightning Protection | 6KV or 10KV optional |
| CCT | 3000-6500K |
| CRI | >75 |
| Luminare Efficiency | >120lm/w; 150lm/w optional |
| IP Rating | IP44 |
| LED Driver | Meanwell HBG/MOSO |
| LED Chips | Philips Lumileds Luxeon 2D 3030/Osram 3030 |
| LED Qty | 60pcs |
| Warranty | 5 Years |
Features for Pilips 3030 60W LED high bay lights

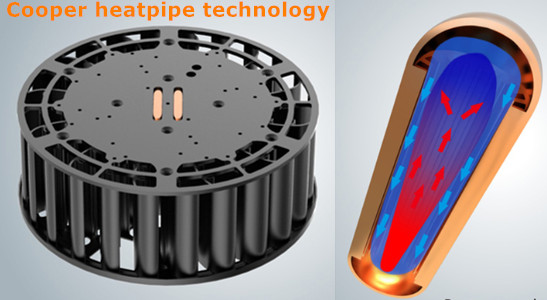

✓ HDT Technology
The copper heat pipe is riveting into the aluminum heat sink, the thermal conductivity is 200 times more efficient than aluminum heat sink.
✓ Different mounting way optional, steel hook, screwed tube, adjustable bracket.

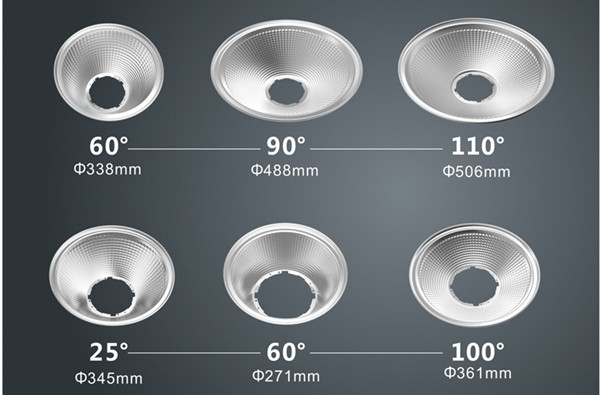

✓ The 60W LED high bay light lamp shade is made from high purity aluminum alloy, flake design, maximum reflection and utilization of light. Different beam angle reflector optional,25°60°90°100°110°optional, improve the lighting efficiency effectively.
✓ High lumen(>120lm/w), high power efficiency, high stable performance, long lighting time over 50,000 hours without replacement or maintenance.

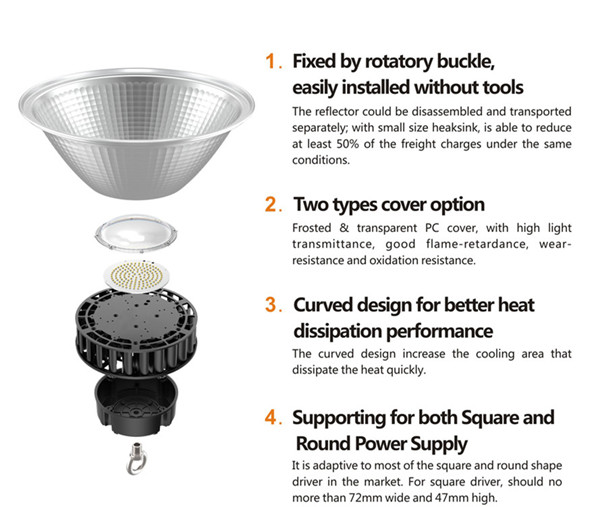

Product breakdown for 60W LED high bay lights
The lamp shade have clear and frosted optional, made from PC, anti-UV and resist high temperature, will not become yellowish after years lighting

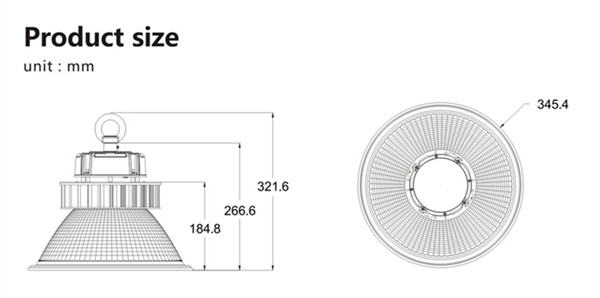

Product size for 60W LED high bay lights

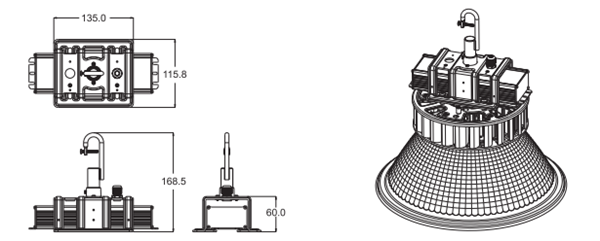

Normal LED driver also workable for this LED high bay light
The main components for 60W LED high bay lights
✓ Phrase change technology, copper heatpipe come with Aluminum, heat dissipation efficiency 200 time better than aluminum radiator.
✓ Meanwell HLG, Meanwell ELG, MOSO, SOSEN LED driver optional, with CE, CB, TUV, UL, etc certifications
✓ LM-80 listed Philips 3030 or Osram 3030 or Nichia 3030 optional
✓ CE, TUV, UL, VDE listed power cables.
✓ 304 stainless steel screws and fixtures, will never rust or corrosion.
The thermal image for 60W LED high bay lights
Thanks to the phrase change technology, the temperature for the lamp body is largely lower down.
To largely reduce LED chips temperature and extend it’s lifespan.

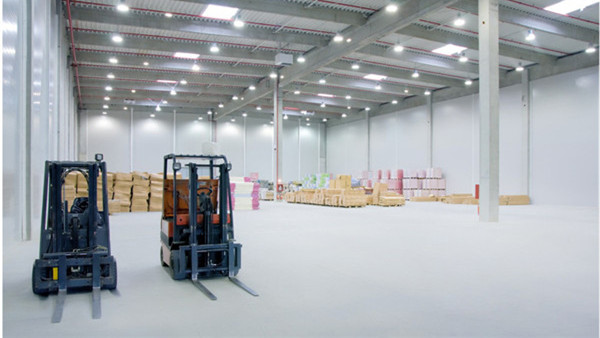

The application for Philips SMD 3030 60W LED high bay lights
