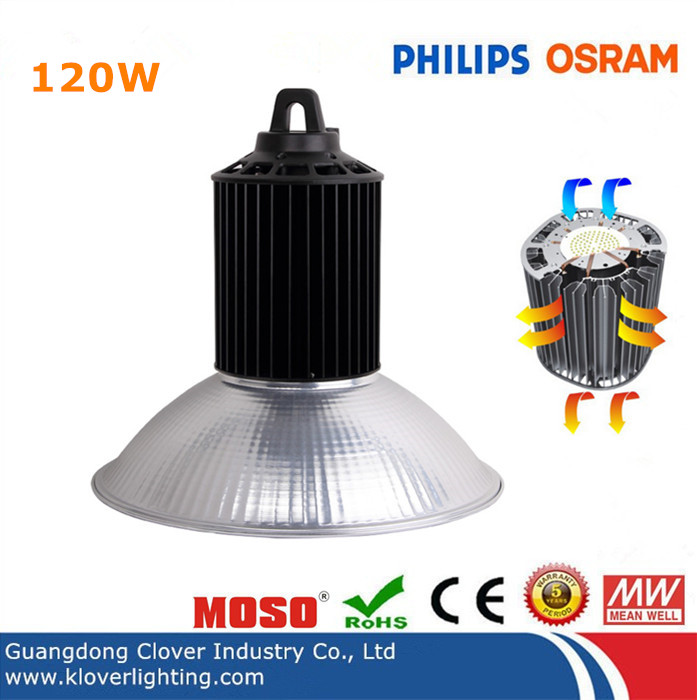

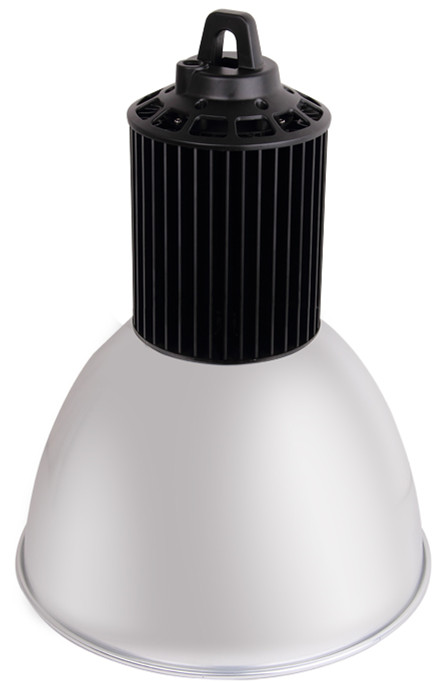

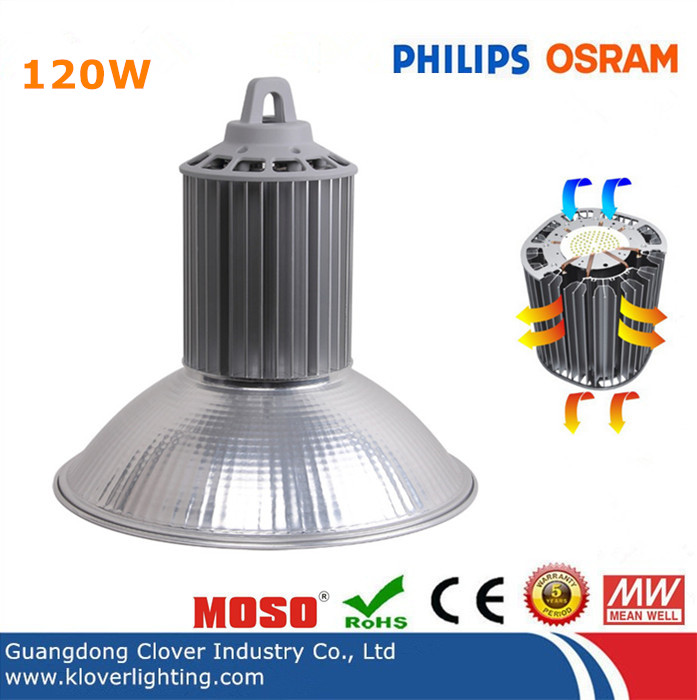

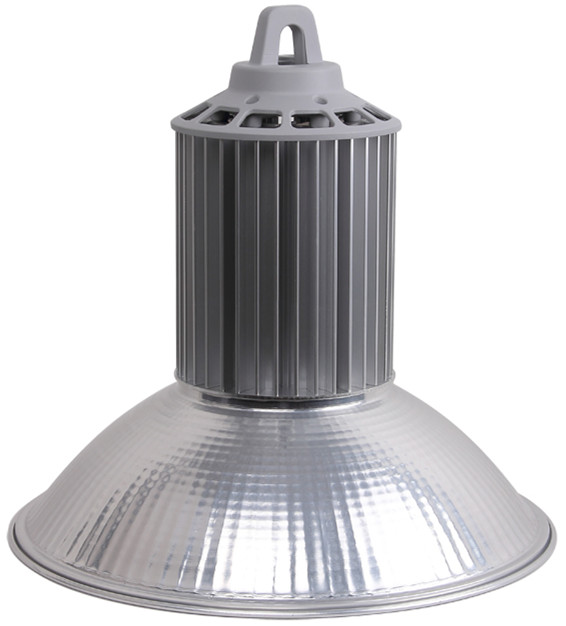

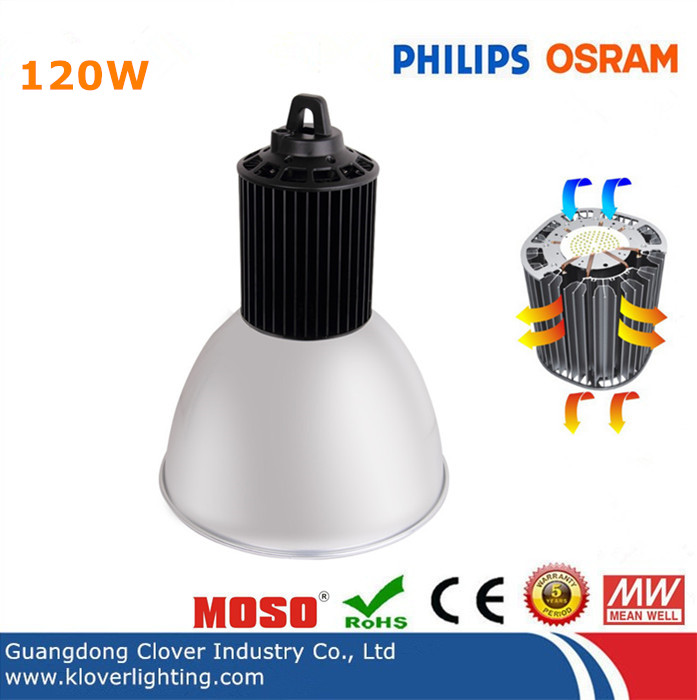

Philips SMD3030 120W LED high bay lighting with Meanwell driver

Item Name: Philips SMD3030 120W LED high bay lights

Item No.: CL-HBL002C120-01

Total Lumen: >13,200lm, 110lm/w, 150lm/w optional

LED Driver: Meanwell ELG/HLG, MOSO, SOSEN

LED chips: Osram SMD3030 or Philips Lumileds 3030.

Lamp reflector: 45°, 60°, 90°, 120°optional

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95 THD: <15%

IP rating: IP44

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

Certifications: CE, RoHs, CB, SAA, TUV

Lifespan: >50,000 Hours

Warranty: 5 Years

LED High Bay lights

Description

Philips SMD3030 120W LED high bay lighting with Meanwell driver

Item No.: CL-HBL002C120-01

Specifications for Philips SMD3030 120W LED high bay lights with Meanwell driver

Item Name	120W LED High Bay Light
Model No.	CL-HBL002C120-01
Power	120W
LED Driver	Meanwell ELG/HLG or MOSO
Input Voltage	AC85-265V 50/60HZ
LED Chips	Osram SMD3030 or Philips Lumileds 3030
Total Lumen	>13,200lm
Luminare Efficiency	>110lm/w; can be 150lm/w
Heat Radiator Size(mm)	Φ182*H200
Beam Angle	45°, 60°, 90°, 120° optional
Power Factor	> 0.95
THD	<15%
Housing	Copper heatpipe aluminum alloy
Power Cable	CE, VDE, TUV, UL listed
Light Color	Warm White	Natural White	Cool White
Color Temperature	2700-3300K	4000-4500K	6000-6500K
CRI	>75, higher CRI optional
IP Rating	IP44
Working Temperature	-35℃ to 60℃
Lifespan	>50,000 hours
Certifications	CE, ROHS
Warranty	5 Years

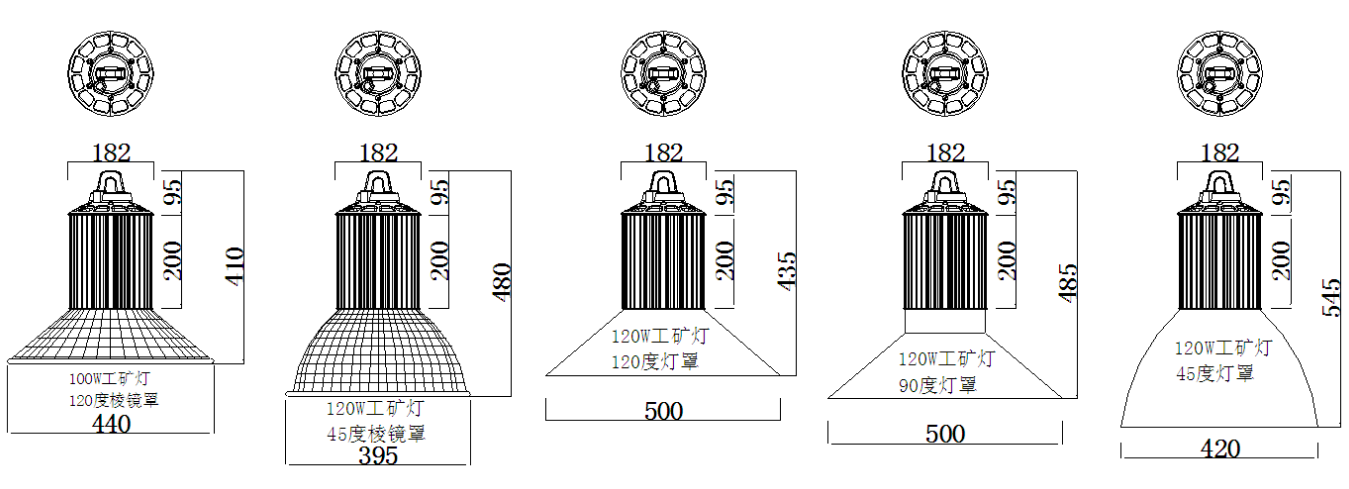

Product size for Philips SMD3030 120W LED high bay lights with Meanwell driver

Main features for 120W LED high bay lights with Philips chips Meanwell driver

✓ Excellent heat dissipation because of using copper heatpipe rivet technology.

✓ High lumen, >110lm/w, maximum 150lm/w by the latest LED technology.

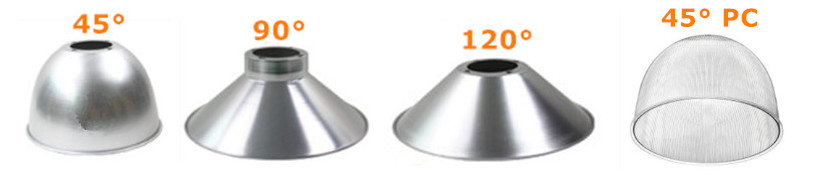

✓ Multi beam angle reflector optional, 45°, 60°, 90°, 120° available, acrylic lamp reflector 45° available. Aluminum reflector can be frosted aluminum alloy, or flake aluminum alloy, with higher reflectance.
