Philips SMD3030 100W LED high bay lights Meanwell driver

Home LED High Bay lights Philips SMD3030 100W LED high bay lights Meanwell driver
100W LED High bay lights

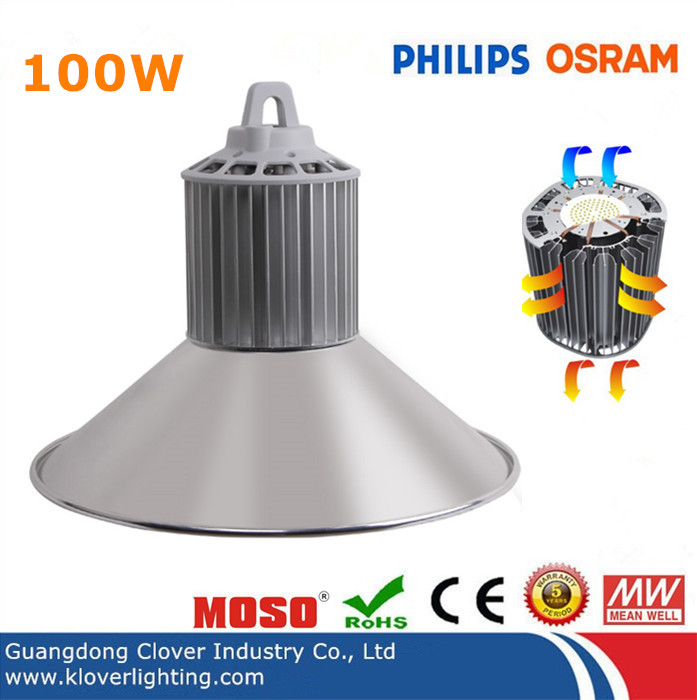

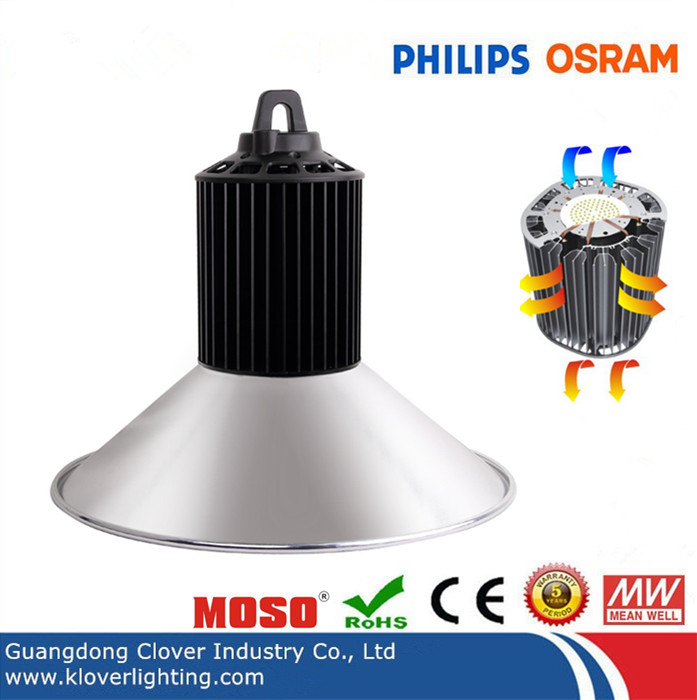

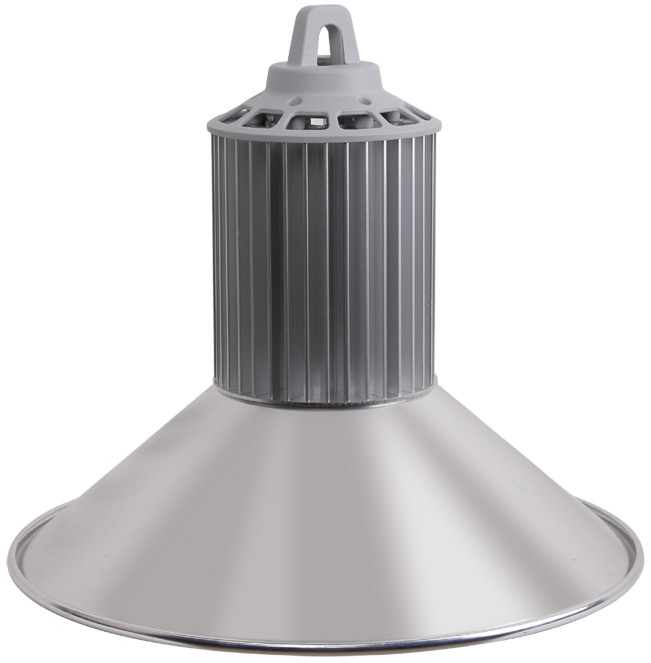

Philips SMD3030 100W LED high bay lights Meanwell driver

Item Name: Philips SMD3030 100W LED high bay lights

Item No.: CL-HBL002B100-01

Total Lumen: >1,100lm, 110lm/w, 150lm/w optional

LED Driver: Meanwell ELG/HLG, MOSO, SOSEN

LED chips: Osram SMD3030 or Philips Lumileds 3030.

Lamp reflector: 45°, 60°, 90°, 120°optional

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95 THD: <15%

IP rating: IP65

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

Certifications: CE, RoHs, CB, SAA, TUV

Lifespan: >50,000 Hours

Warranty: 5 Years

LED High Bay lights

Description

Philips SMD3030 100W LED high bay lights Meanwell driver

Item Number: CL-HBL002B100-01

Philips 3030 100W LED high bay lights



Specification for Philips 3030 100W LED high bay lights



Item Name 100W LED High Bay Light
Model No. CL-HBL002B100-01
Power 100W
LED Driver Meanwell ELG/HLG or MOSO
Input Voltage AC85-265V  50/60HZ
LED Chips Osram SMD3030 or Philips Lumileds 3030
Total Lumen >1,100lm
Luminare Efficiency >110lm/w; can be 150lm/w
Heat Radiator Size(mm) Φ182*H200
Beam Angle 45°, 60°, 90°, 120° optional
Power Factor > 0.95
THD <15%
Housing Copper heatpipe aluminum alloy
Power Cable CE, VDE, TUV, UL listed
Light Color Warm White Natural White Cool White
Color Temperature 2700-3300K 4000-4500K 6000-6500K
CRI >75, higher CRI optional
IP Rating IP44
Working Temperature  -35℃  to  60℃
Lifespan >50,000 hours
Certifications CE, ROHS
Warranty 5 Years

The main components for Philips SMD3030 100W LED high bay lights



✓  Meanwell ELG/HLG driver or MOSO LED driver, 5-7 years warranty

✓  High purity aluminum heat sink with riveted copper heat pipe, the latest LED technology for heat dissipation, much better than aluminum heat sink, or die-casting heat sink.

✓  LM-80 listed Philips Lumileds Luxeon 2D 3030 or Osram 3030 LED chips, luminaire efficiency over 110lm/w, by the latest LED technology, can reach 150lm/w, with the same light maintenance.

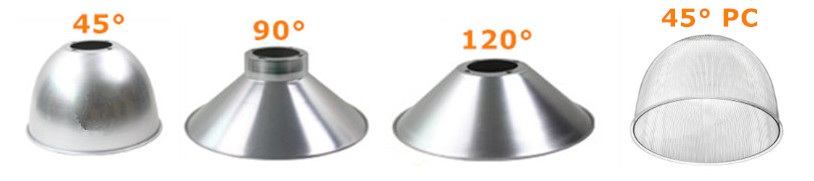

✓  LED high bay light reflector, made from high purity frosted or flake aluminum alloy, 45°, 60°, 90°, 120° optional, acrylic lamp reflector 45° optional.

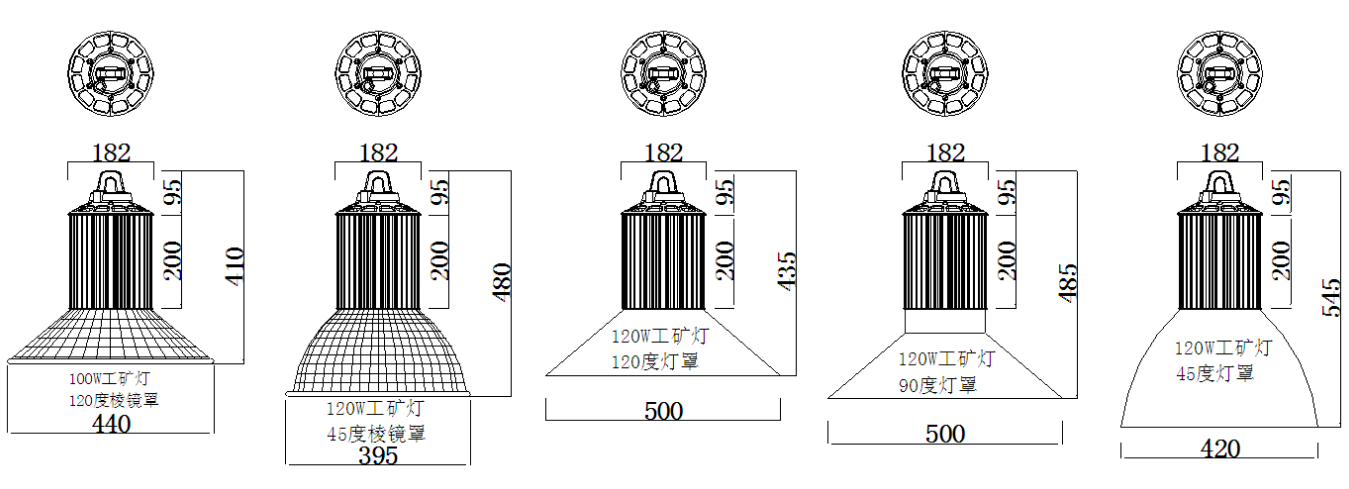

Product size for Philips SMD3030 100W LED high bay lights with Meanwell driver



100W LED high bay lights size

Features for Philips SMD3030 100W LED high bay lights Meanwell driver



✓  High luminaire efficiency, 110lm/w, maxinum 150lm/w; low light decay for copper heatpipe technology

✓  Light weight, much lighter than traditional extruted aluminum alloy LED high bay lights.

✓   High efficiency, high stable performance, 5 years without replacement or maintenance.

✓   Comply with AU, EU, US safety and electric standards

✓   Other power also optional, 60W, 80W, 120W, 150W, 200W, 250W, 300W.
