Osram SMD3030 300W Commercial LED high bay lighting

Home LED High Bay lights Osram SMD3030 300W Commercial LED high bay lighting
Philips 3030 300W commercial LED high bay lighting300W commercial LED high bay lighting

Osram SMD3030 300W Commercial LED high bay lighting

Item Name:  300W commercial LED high bay lighting

Item No.: CL-HBL002G300-01

Total Lumen: >33,000lm; 110lm/w; 150lm/w optional

LED Driver: Meanwell ELG/HLG, MOSO, SOSEN

LED chips: Osram or Philips SMD3030

Lamp reflector: 45°, 60°, 90°, 120°optional, acrylic reflector in 45°

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95 THD: <15%

IP rating: IP44

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

Certifications: CE, RoHs, CB, SAA, TUV

Lifespan: >50,000 Hours

Warranty: 5 Years

LED High Bay lights2017-06-27k705

Description

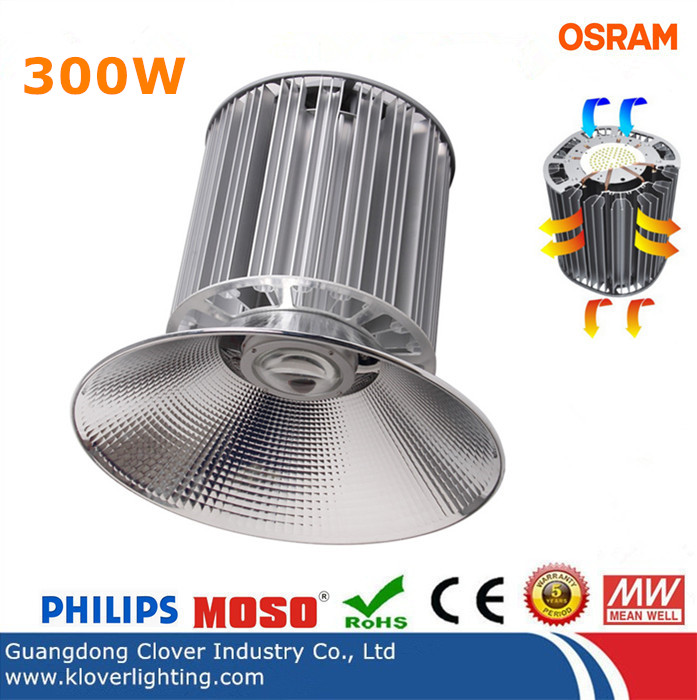

Osram SMD3030 300W Commercial LED high bay lighting

Item Number: CL-HBL002G300-01

Luminaire Effciency: 110lm/w, 150lm/w available

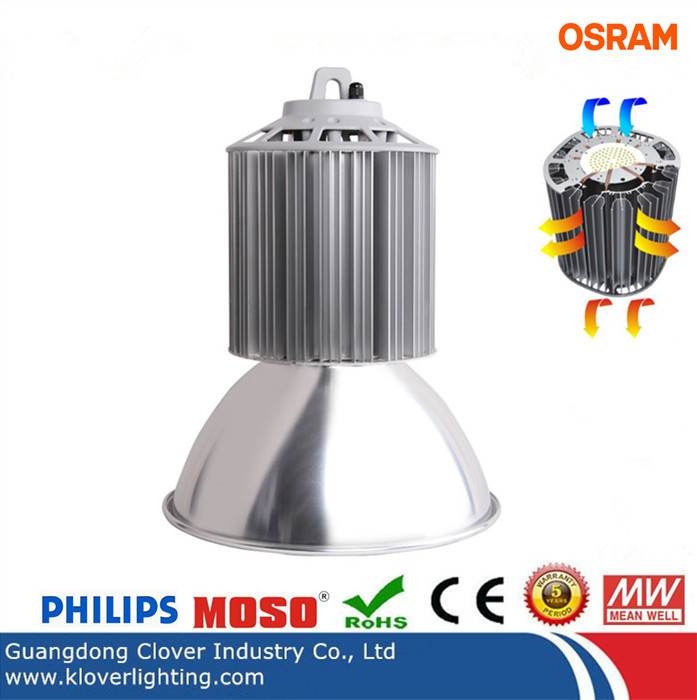

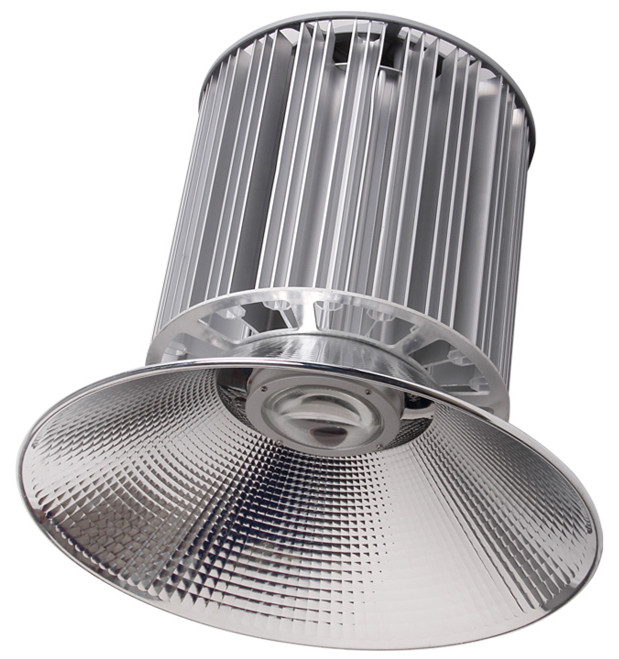

Philps 3030 300W commercial LED high bay light

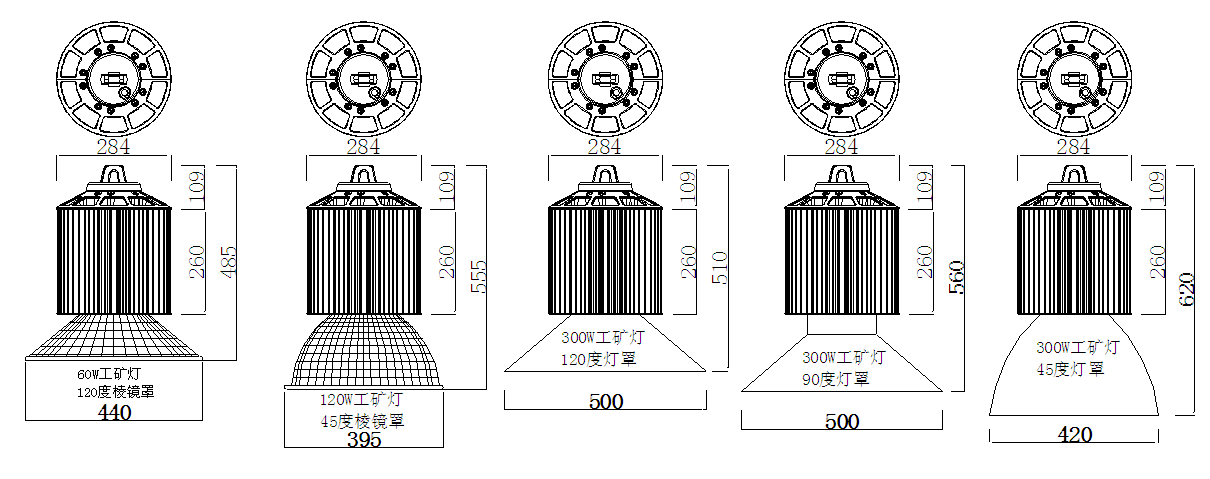

Product size for Osram 3030 300W Commercial LED high bay lighting

size for 300W commercial LED high bay lights

Features for 300W commercial LED high bay lighting

✓  Osram 3030 LED chips, light source 140lm/w, luminaire effciency 110-120lm/w; 150lm/w optional by the latest LED technology

✓  Meanwell HLG/ELG, MOSO driver, stable performance, multi-protection, long service time

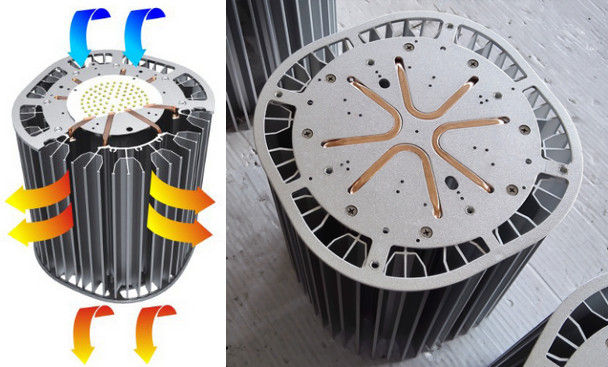

✓  Excellent heat dissipation, with copper heatpipe riveting  technology, allow 3D heat dissipation efficiently.

material for 300W commercial LED high bay lighting

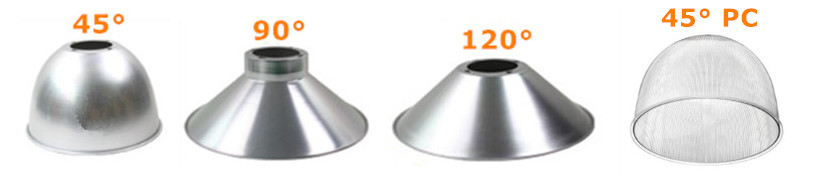

✓  LED high bay lighting reflector available in frosted aluminum, flake design aluminum, both in 45°, 60°, 90°, 120° beam angle; acrylic lamp reflector in 45° angle; different angle for different lighting application.

lamp reflector for 300W commercial LED high bay lighting

✓  Light weight, this series LED high bay light is much lighter in weight than extruted or die-casting aluminum radiators.

✓  This series LED high bay lighting is available in 60W, 80W, 100W, 120W, 150W, 200W, 250W, 300W, 400W.



Specifications for 300W commercial LED high bay lighting

Item Name 300W commercial LED High Bay Light
Model No. CL-HBL002G300-01
Power 300W
LED Driver Meanwell ELG/HLG or MOSO
Input Voltage AC85-265V  50/60HZ
LED Chips Osram SMD3030 or Philips Lumileds 3030
Total Lumen >33,000lm
Luminare Efficiency >110lm/w, 150lm/w optional
Heat Radiator Size(mm) Φ284*H260
Beam Angle 45°, 60°, 90°, 120° optional
Power Factor > 0.95
THD <15%
Housing Copper heatpipe aluminum alloy
Power Cable CE, VDE, TUV, UL listed
Light Color Warm White Natural White Cool White
Color Temperature 2700-3300K 4000-4500K 6000-6500K
CRI >75, higher CRI optional
IP Rating IP44
Working Temperature  -35℃  to  60℃
Lifespan >50,000 hours
Certifications CE, ROHS
Warranty 5 Years
