60-240W Commercial LED high bay lights

China 60W 100W 150W 200W 240W Commerical LED high bay lights

Model No.: CL-HB0475-60W

Luminaire efficiency: >140lm/w

Product Size: Φ350*252mm

LED Driver: Meanwell/Philips/Moso/Sosen optional

LED chips: 60pcs LM-80 listed Philips Lumileds 3030

Input voltage: AC100-305V 50/60HZ

PF: >0.95 THD: <10%

CCT: 2700-6500K, Ra>70,

Water proof: IP65

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

LED High Bay lights

Description

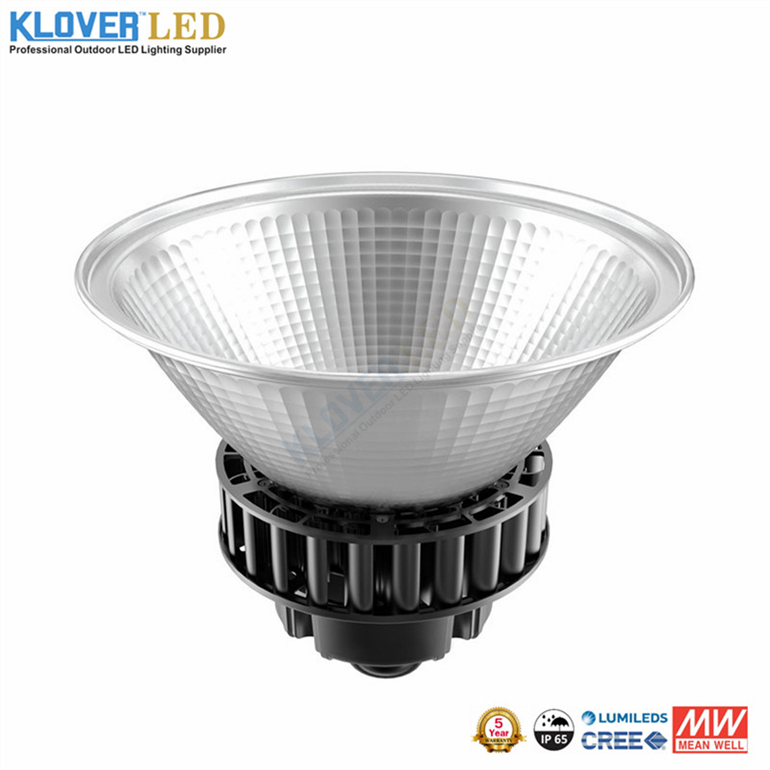

60W-240W Commercial LED High Bay Lights HB0475

Commercial LED high bay light 60-240W

Quick specification

Item Name	60W, 100W, 150W, 200W, 240W commerical LED High Bay Lights
Model No.	HB0475-60W	HB0475-100W	HB0475-150W	HB0475-200W	HB0475-250W
Rated Power	60W	100W	150W	200W	240W
Total Lumen	7,800lm	13,000lm	19,500lm	26,000lm	31,200lm
Product Size(mm)	Φ350*252	Φ350*272	Φ350*302	Φ350*352	Φ350*402
LED Driver	Meanwell HBG/MOSO/Sosen/Inventronics optional
LED Chips	Lumileds Luxeon 2D/Osram/San’an 3030 optional
LED Qty	60pcs	100pcs	154pcs	203pcs	252pcs

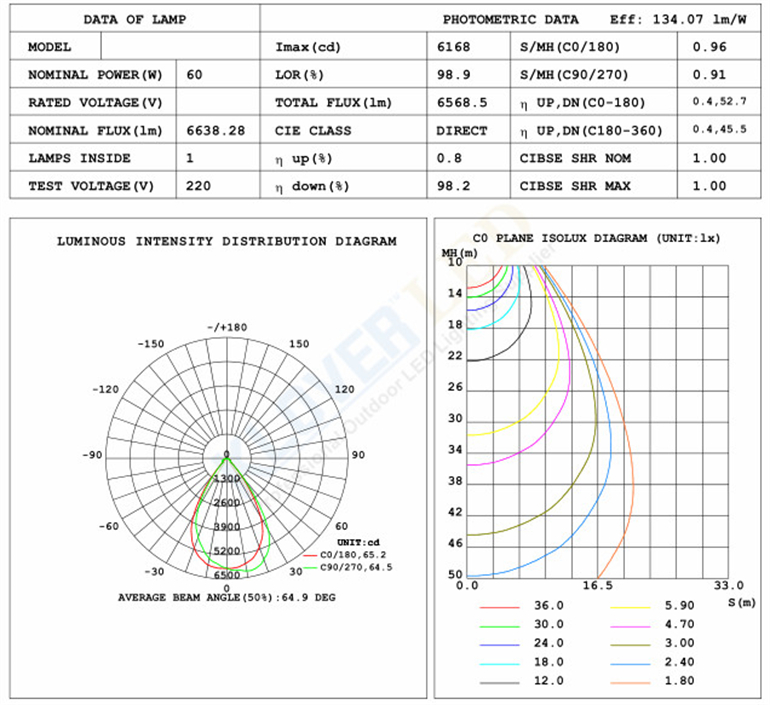

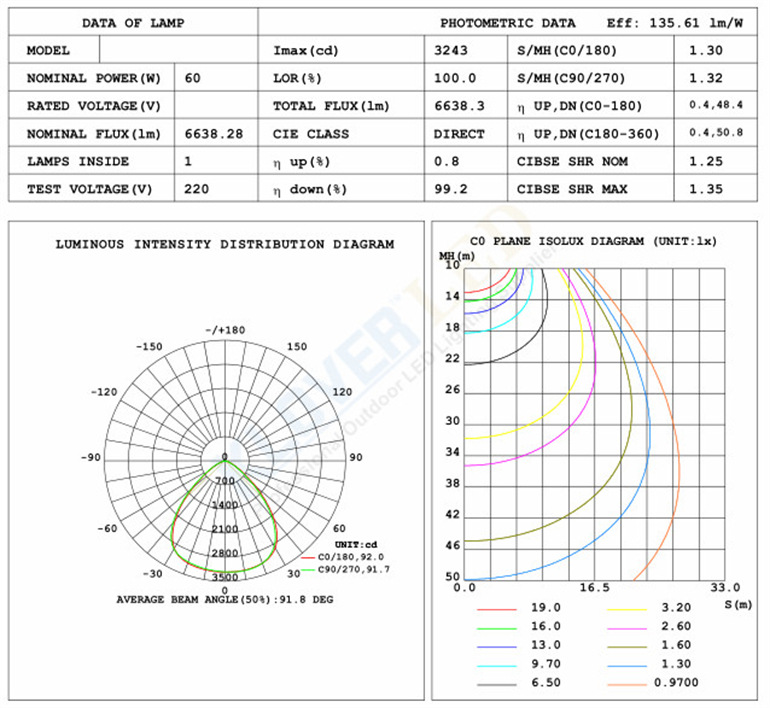

Optical parameters	Beam angle 60°, 90°, 120°optional; CCT: 3000-6500K, Ra>70, >140lm/w
Electric parameters	Input: AC100-305V 50/60HZ; 6KV Surge protection; PF> 0.95; THD: <15%
Material	Die-casting aluminum alloy with copper heatpipe
Water proof	IP65
Warranty	5 Years

Key Features

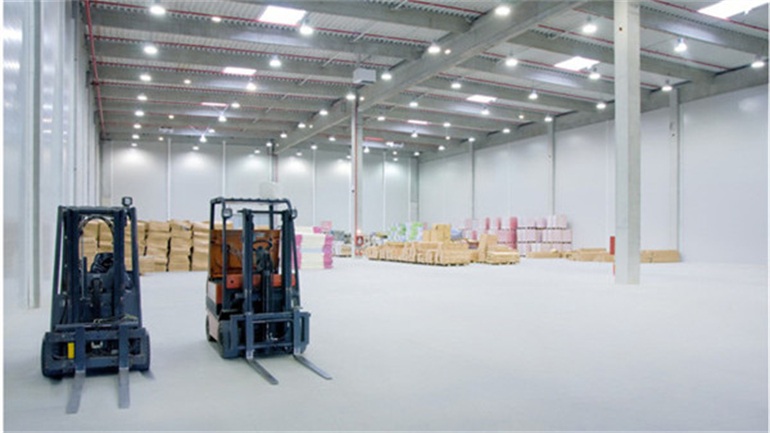

This HB0475 series LED high bay light is suitable for all kinds of commercial lighting purpose, widely used in warehouse, garage, factory, shopping center.,etc. large area with high ceiling lighting to cover large area lighting on the ground or worktop.

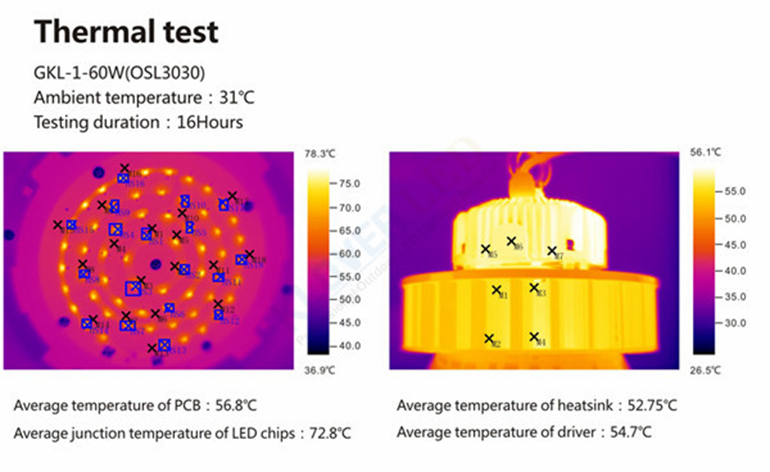

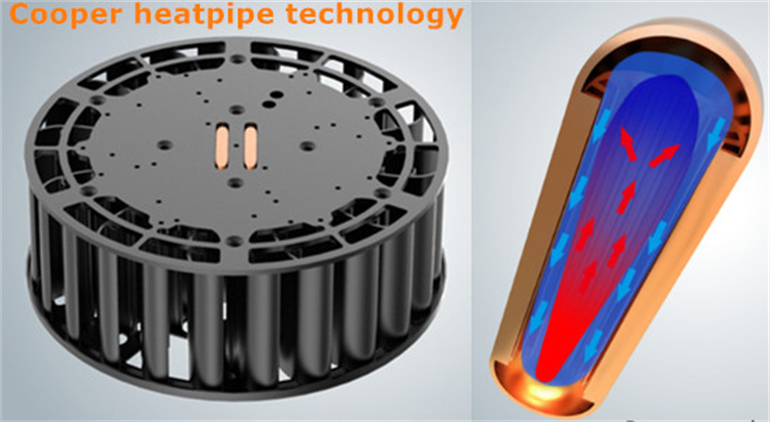

1. Die-casting aluminum alloy combine copper heatpipe technology, excellent heat dissipation.

2. LM-80 listed Lumileds 3030 chips with Meanwell/Sosen/Inventronics/Philips driver, top quality, more safety and long lifespan.

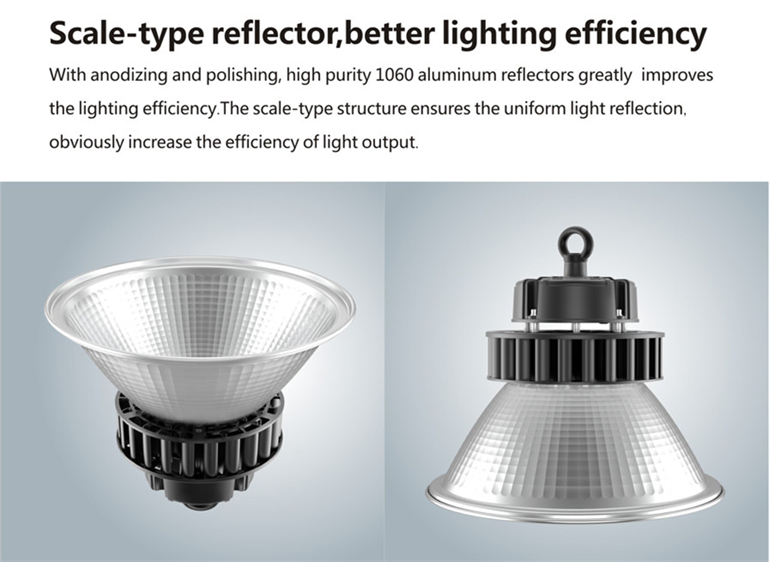

3. Scale type reflector, with better lighting efficiency because of better reflecting ratio, 60/90/120 degree available.

4. Luminaire efficiency >140lm/w.

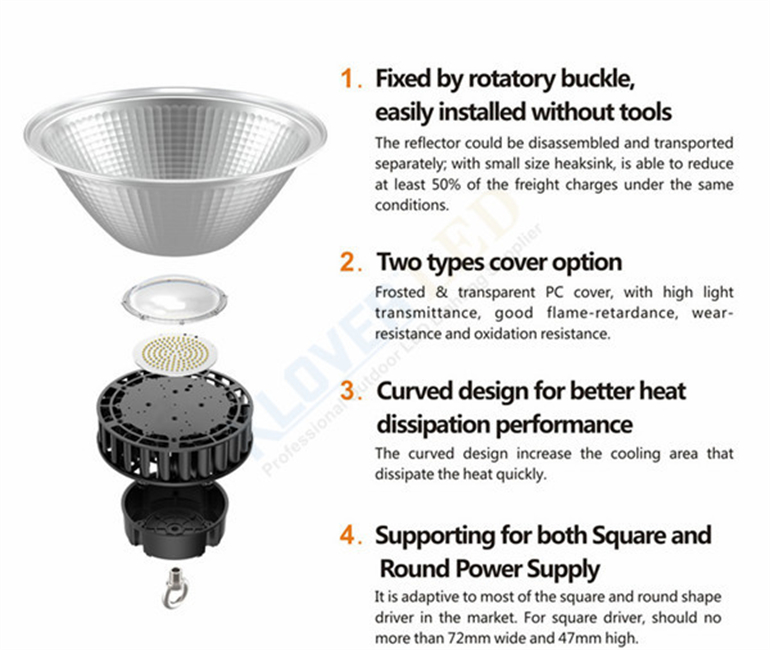

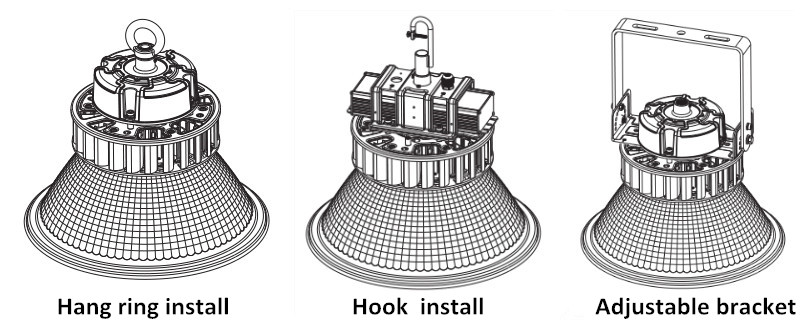

5. Can be hanging ring, hook mounted and adjustable bracket mounted,

6. Lifespan over 50,000 hours and five years warranty and long service time.
