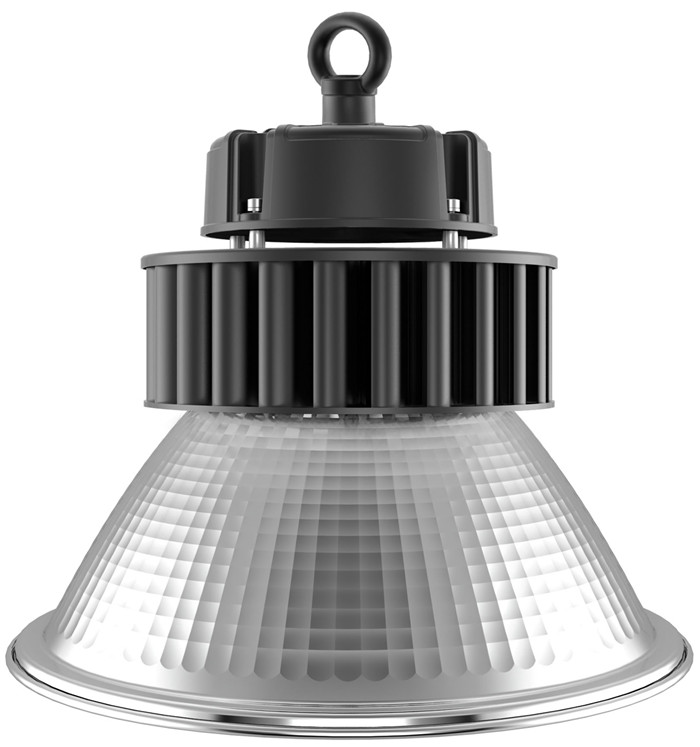

Osram SMD3030 100W LED high bay light with Meanwell driver

Home LED High Bay Lights Osram SMD3030 100W LED high bay light with Meanwell driver

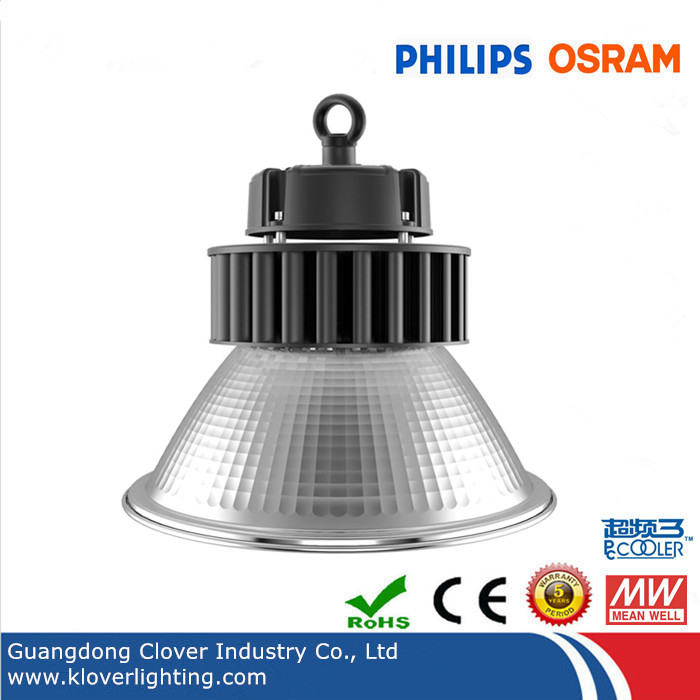

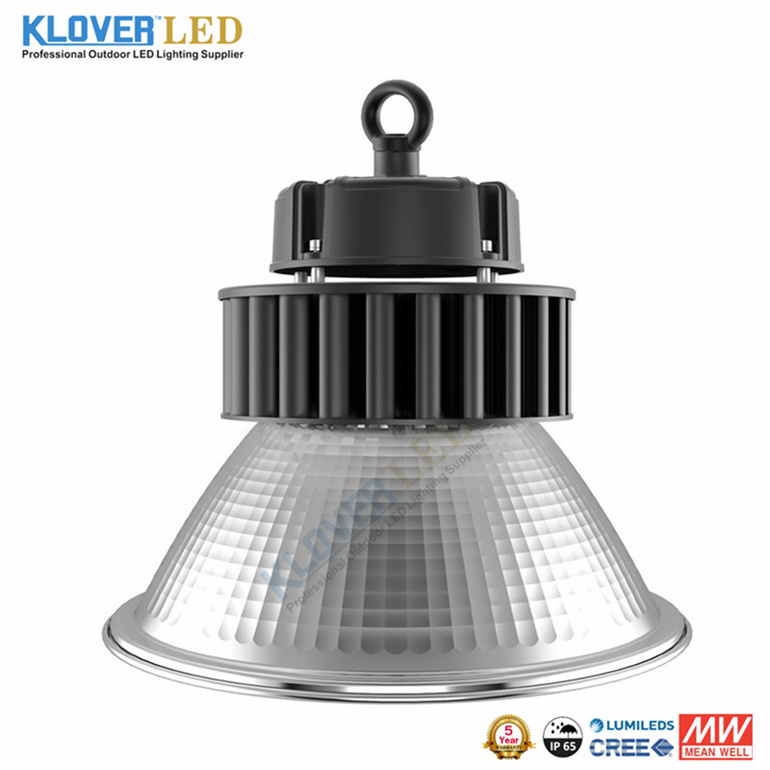

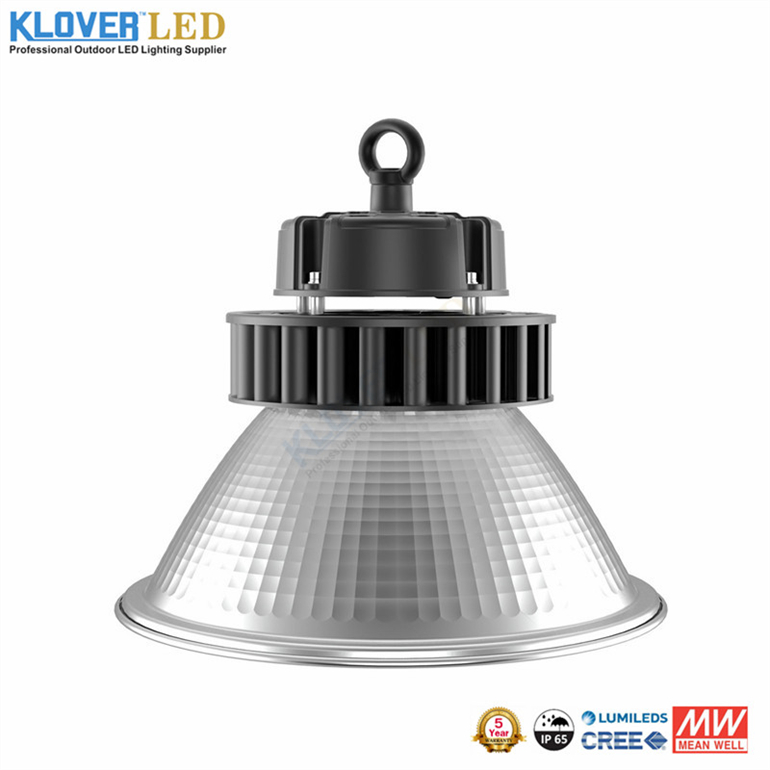

Osram 3030 100W LED high bay lights with Meanwell driver

Osram SMD3030 100W LED high bay light with Meanwell driver

Item Name: Osram SMD3030 100W LED high bay lights

Model No.: CL-HBL001B100-01

Total Lumen: 12,000lm, 120lm/w

Product Size: Φ345.4*341.6 mm

LED Driver: Meanwell HLG or MOSO

LED chips:  100pcs Philips Lumileds 3030

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95    THD: <15%  Ra: >80

IP rating: IP44

Color Temperature: 2700-6500K optional

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

LED High Bay Lights, SMD LED High Bay Lights2017-06-19k705

Description

Osram SMD3030 100W LED high bay light with Meanwell driver

Item number: CL-HBL001B100-01

Osram SMD3030 100W LED high bay light with Meanwell driver



Specification for Osram 3030 100W LED high bay lights



Item Name 100W LED High Bay Light
Model No. CL-HBL001B100-01
Power 100W
Total Lumen 12,000lm
Product Size(mm) Φ345.4*341.6
Beam Angle 25°, 60°, 90°, 100°, 110° optional
Input Voltage AC85-265V  50/60HZ
Power Factor > 0.95
THD <15%
Lightning Protection 6KV or 10KV optional
CCT 3000-6500K
CRI >75
Luminare Efficiency >120lm/w; 150lm/w optional
IP Rating IP44
LED Driver Meanwell HBG/MOSO
LED Chips Osram 3030/Philips Lumileds Luxeon 2D 3030
LED Qty 100pcs
Warranty 5 Years

Product Features:

✓ Scale design for high purity aluminum lamp reflector, light distribution more smoothly, and better utilization of lights.

✓ High lumaire efficiency, normally 120lm/w, 150lm/w optional

✓ Soft light, anti-glare, no light pollution, eye protective, UGR<19

✓ Different lamp reflector angle, 25°60°90°100°110°optional, improve the lighting efficiency effectively.

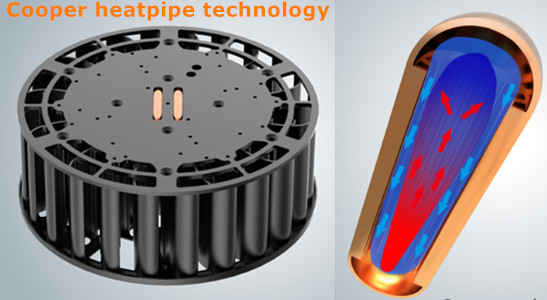

✓ HDT technology, riveting copper tube into aluminum base, largely improve heat dissipation efficiency, it is 200 times better than aluminum radiator

copper heat pipe for 100w led high bay lights

✓ LED driver is seperated from heat radiator, the heat on radiator will not transmit to LED driver, so that largely enlong driver lifespan.

✓ Extra long lifespan, stable performance, free of maintenance.

Comply with EU, US, AU quality standards.

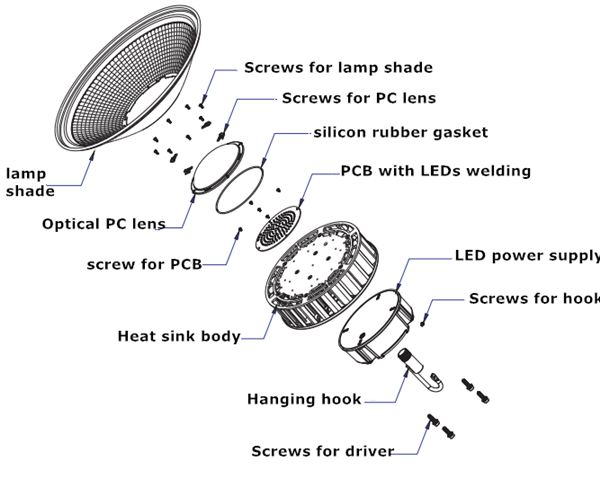

Product breakdown for Osram 3030 chips 100W LED high bay lights



100W LED high bay lights with Osram 3030 Chips and Meanwell driver

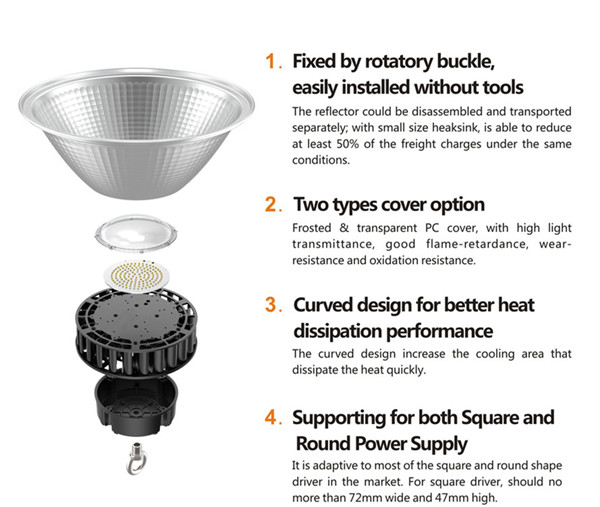

The main components for Osram 3030 100W LED high bay lights



✓  Copper heatpipe aluminum radiator, with flake design lamp reflector

✓  Osram 3030 or Philips 3030 LED chips, LM-80 rated, Ra>80, 120lm/w, low light decline.

✓  PC lamp shade, clear and frosted optional, resist high temperature, never yellowish

✓  Meanwell HBG, MOSO or SOSEN LED driver optional, high PF>0.95, with stable performance.

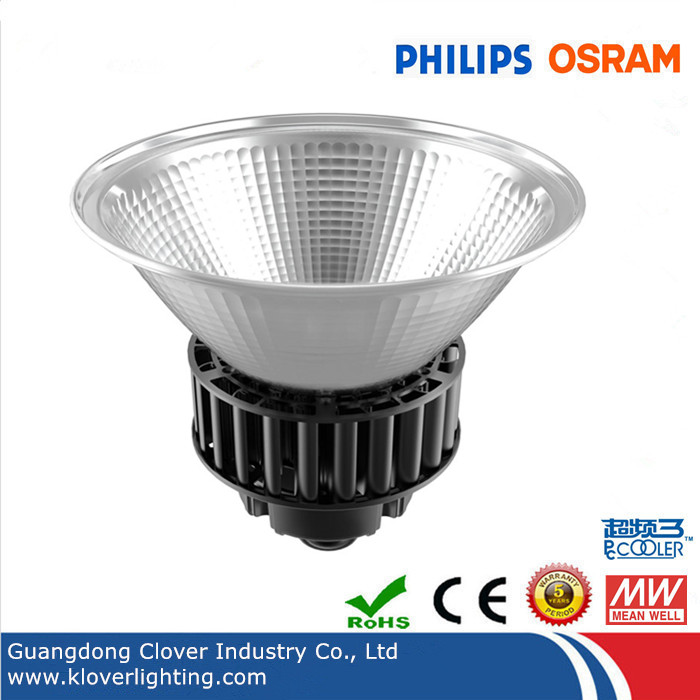

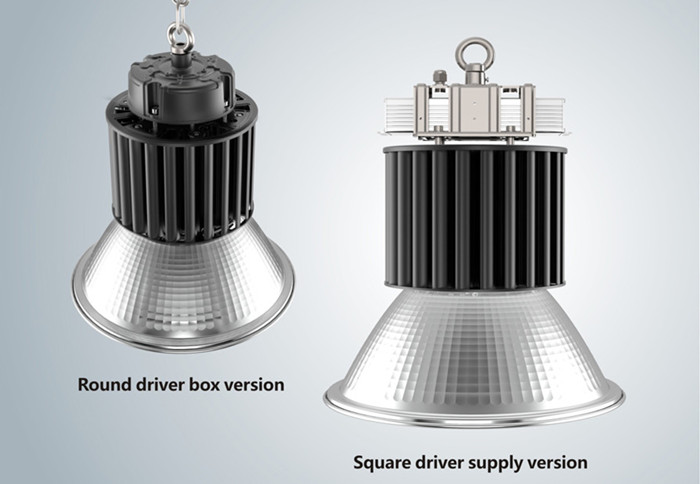

Osram 3030 Meanwell driver 100W LED high bay lights

materials for Osram 3030 100W LED high bay lights

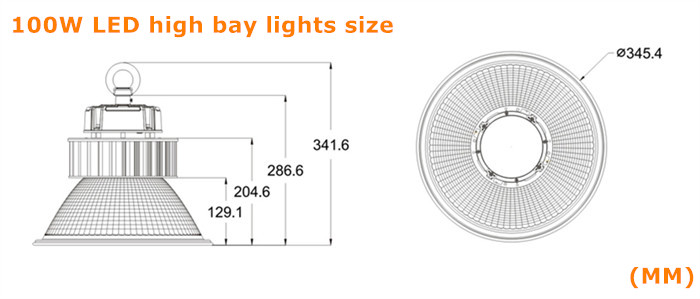

Product size for 100W LED high bay lights with Osram 3030 chips and Meanwell driver



Product size for Osram SMD3030 100W LED high bay light

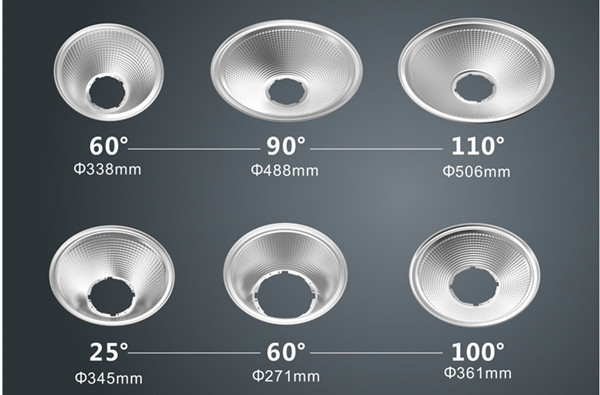

Different beam angle reflector available for 100W LED high bay lights

reflector for 100W LED high bay lights

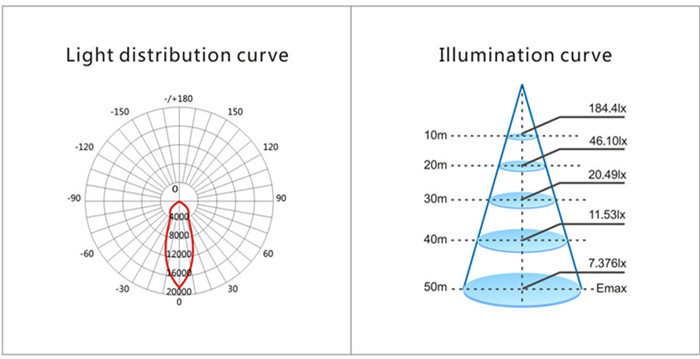

The light distribution curve for Osram SMD3030 100W LED high bay lightslight distribution curve for Osram 3030 100W LED high bay lights

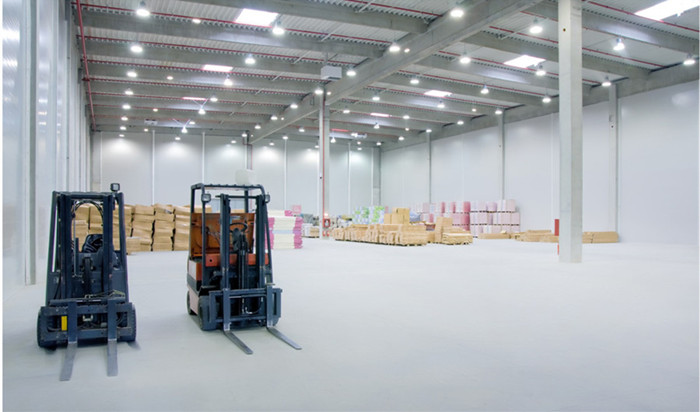

Application for Osram SMD3030 100W LED high bay lighting

100W LED high bay lights is widely used to reduce traditional HPS or Metal Halide high bay light, for at least 70% energy, also used for factories, workshops, industrial plants, warehouse, logistics centers, exhibition hall, custom, stadiums, shipyards, highway toll stations, gas stations, supermarket.,etc.

Application for 100W LED high bay lights
