Warehouse Workshop Factory LED Industrial Lighting 60W-240W High bay Light 5 years warranty

Home LED High Bay Lights Warehouse Workshop Factory LED Industrial Lighting 60W-240W High bay Light 5 years warranty

Warehouse Workshop Factory LED Industrial Lighting 60W-240W High bay Light 5 years warranty

Model No.: CL-HB0475-100W series

Luminaire efficiency: >130lm/w

Heatsink Size: Φ350*272mm(lamp shade packed separately)

LED Driver: Meanwell/Philips Lumileds

LED chips: 100pcs Philips Lumileds 3030

Input voltage: AC100-305V 50/60HZ

PF: >0.95 THD: <10%

CCT: 2700-6500K,

Ra: >70,

Water proof: IP65

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

LED High Bay Lights2022-04-29k705

Description

Warehouse Workshop Factory LED Industrial Lighting 60W-240W High bay Light 5 years warranty

Quick specification

Item Name 60W, 100W, 150W, 200W, 240W LED High Bay Light
Model No. HB0475-60W HB0475-100W HB0475-150W HB0475-200W HB0475-250W
Power 60W 100W 150W 200W 240W
Total Lumen 7,800lm 13,000lm 19,500lm 26,000lm 31,200lm
Product Size(mm) Φ350*252 Φ350*272 Φ350*302 Φ350*352 Φ350*402
LED Driver Meanwell HBG/MOSO/Sosen/Inventronics
LED Chips Lumileds Luxeon 2D/Osram/Bridgelux/Epistar 3030 optional
LED Qty 60pcs 100pcs 154pcs 203pcs 252pcs
Optical parameters Beam angle 60°, 90°, 120°optional; CCT: 3000-6500K, Ra>70, >130lm/w
Electric parameters Input: AC100-305V  50/60HZ; 6KV Surge protection; PF> 0.95; THD: <15%
Material Die-casting aluminum alloy with copper heatpipe
Water proof IP65
Warranty 5 Years

Product name: Warehouse Workshop Factory LED Industrial Lighting 100W High bay Light 5 years warranty

LED chips: CREE/Lumileds Luxeon 2D/Bridgelux/Epistar SMD3030 optional.

LED light source: Maximum 200lm/w

LED driver: Meanwell/MOSO/Inventronics/Sosen/BIS driver optioanal

CB driver: AC100-305V 50/60Hz, no flashing, 6KV surge protection, THD<10%, PF>0.95, 5 years warranty, very cost effective

Luminaire efficiency: >130lm/w

Material: Lamp body by Copper heat pipe aluminum alloy, lamps shade by aluminum scaled refelector

Beam angle: 45/60/90/120 degree optional

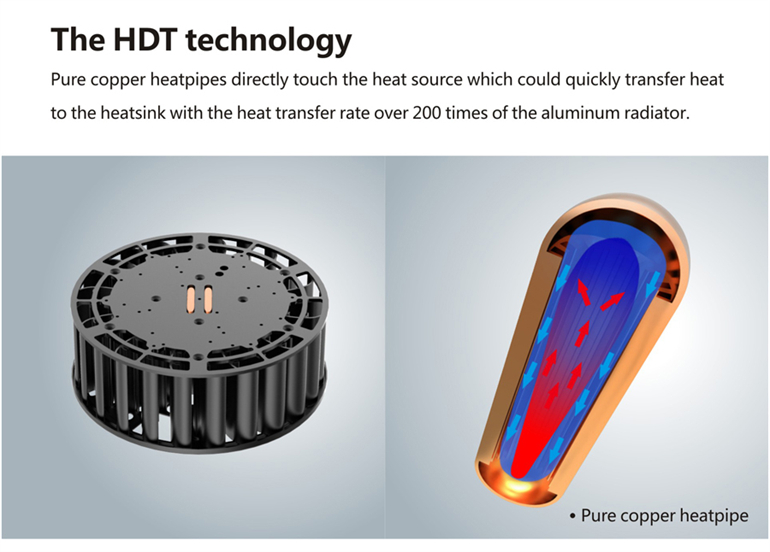

Advantages: copper heat pipe for quick bring down LED chips temperature, to enlong LED chips lifespan, light weight.

IP rating: Indoor/outdoor/Industrial lighting use for large area lighting

Application: Warehouse/Workshop/Factory/Industrial Lighting, car parking lot, supermarket, shopping mall, logistic centers.,etc.

Warranty: 5 years

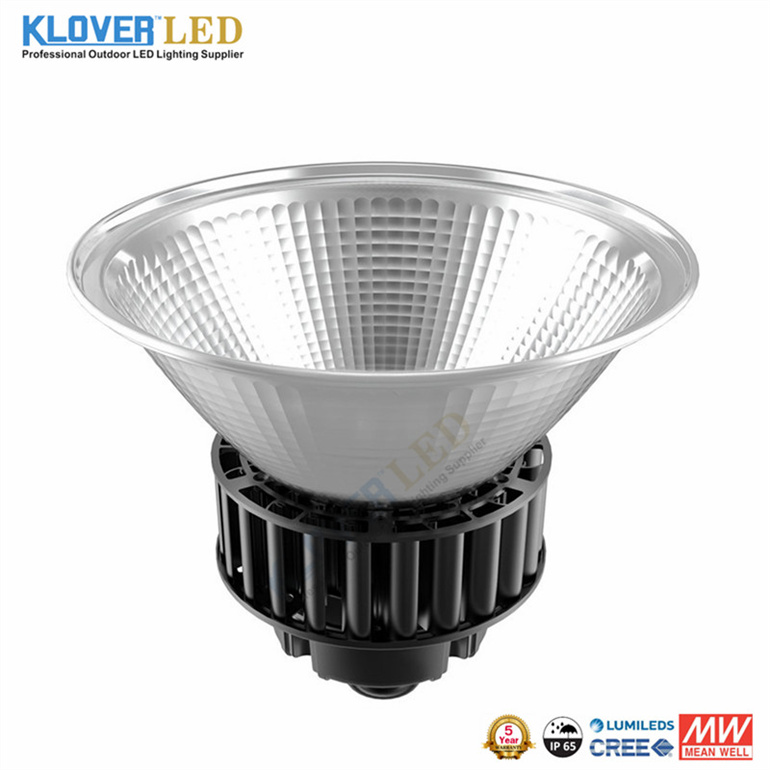

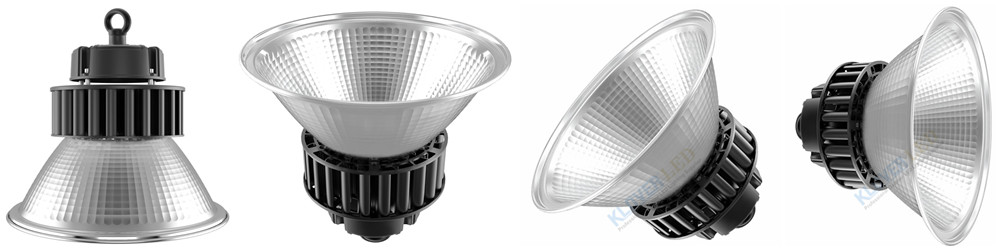

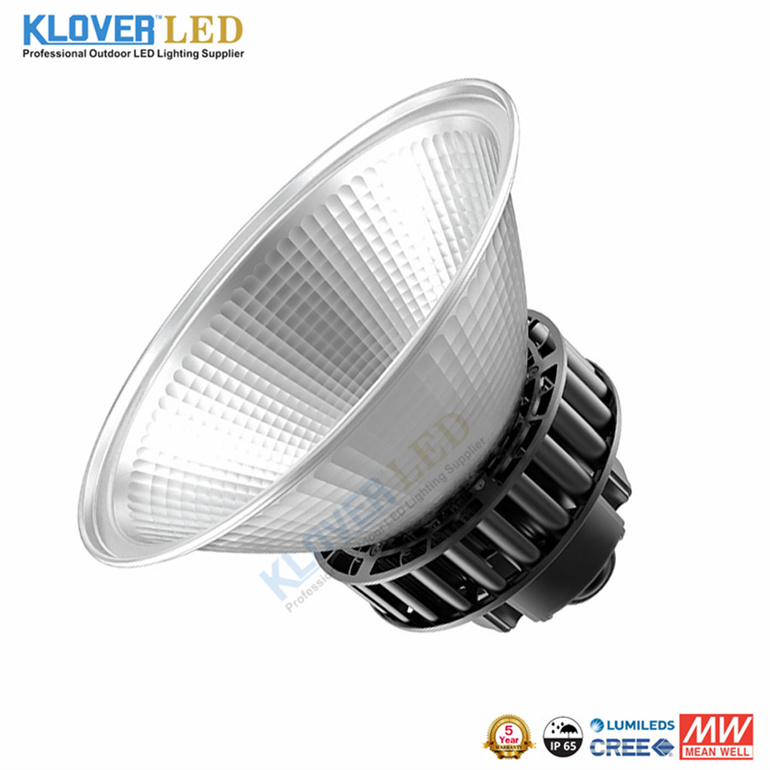

Product photo show

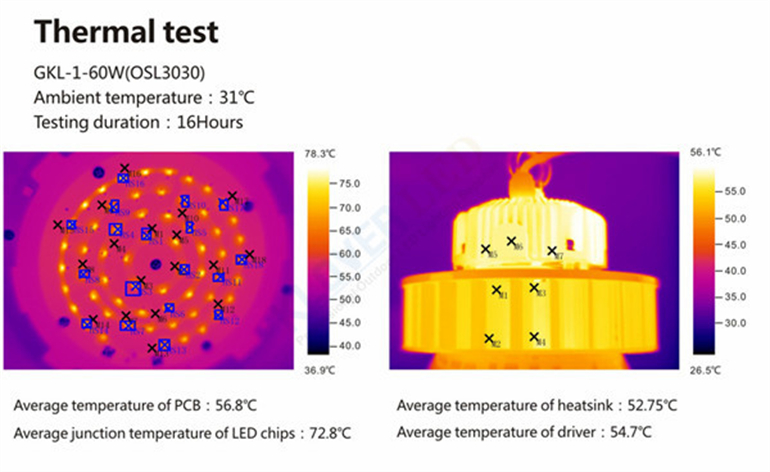

Thermal test for Warehouse Workshop Factory LED Industrial Lighting 60W-240W High bay Light 5 years warranty

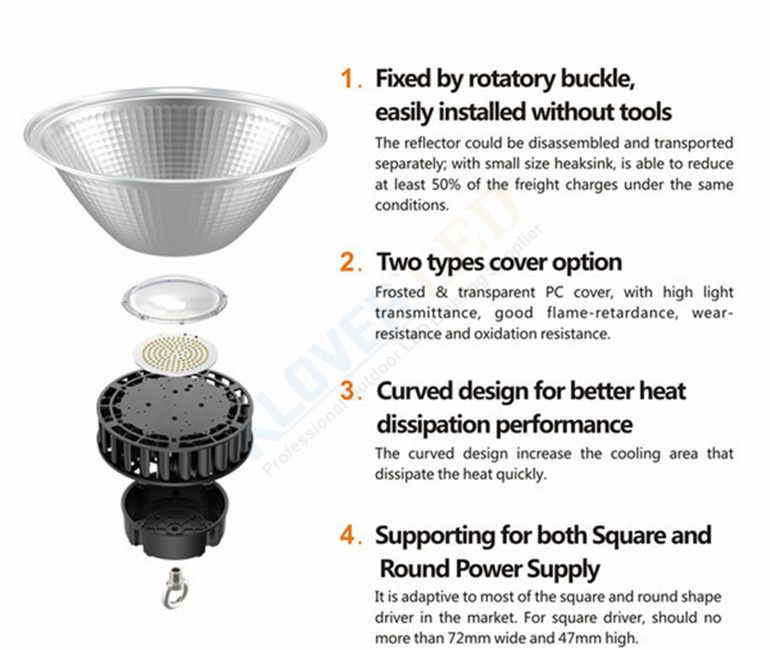

Product breakdown for Warehouse Workshop Factory LED Industrial Lighting 60W-240W High bay Light 5 years warranty

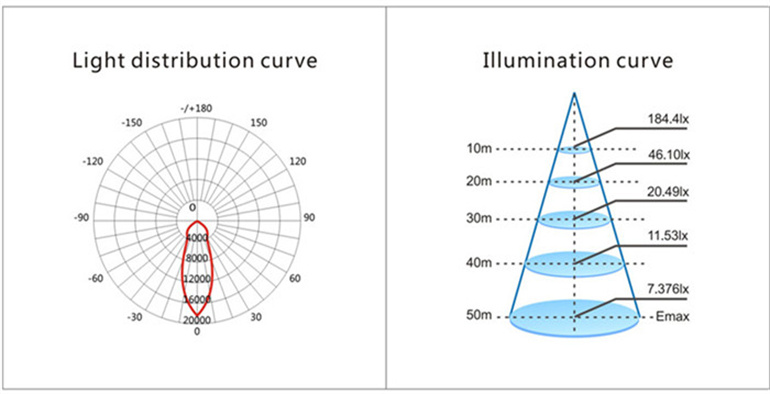

Light distribution curve for HB0475 100W LED high bay lights
