philips 3030 80w linear LED high bay lights

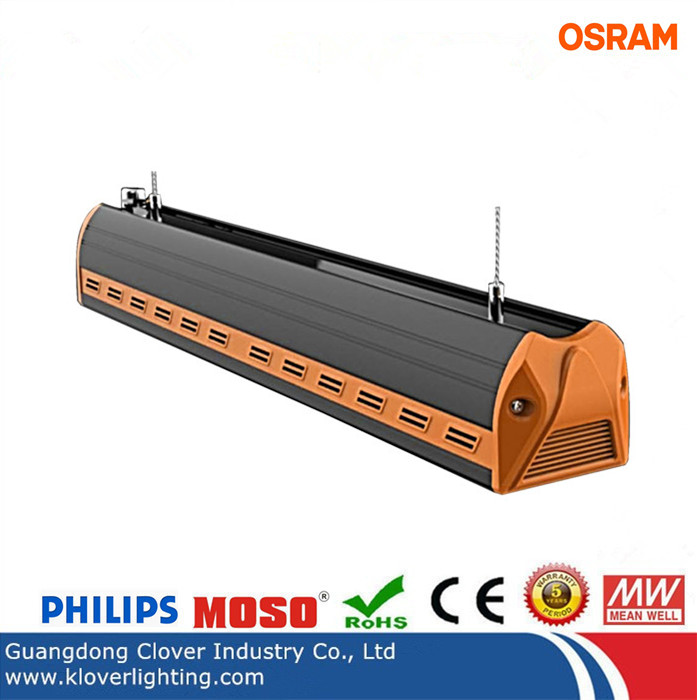

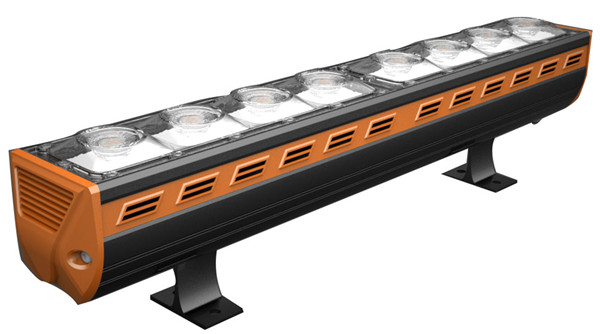

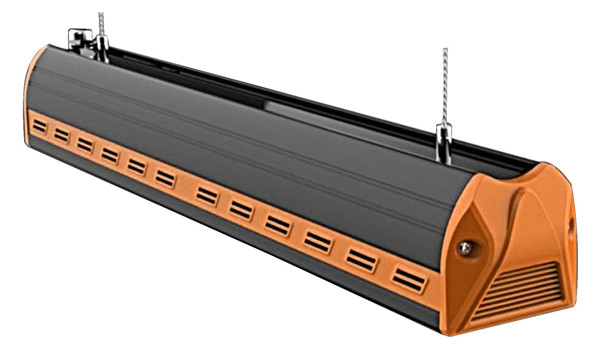

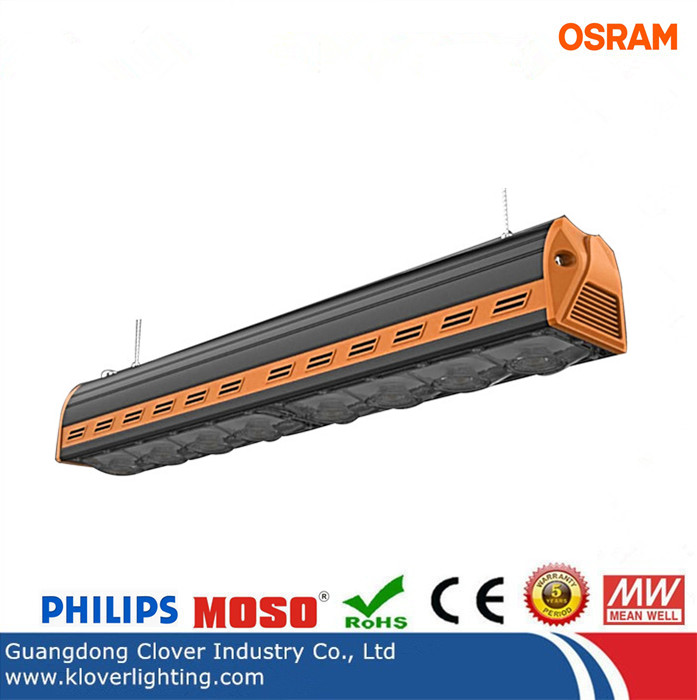

Philips SMD3030 80W linear LED high bay lights

Item Name: IP65 80W Linear LED high bay lights

Item No.: CL-LHB001B80-01

Total Lumen: 8,800lm; 110lm/w; 150lm/w optional

LED Driver: Meanwell ELG/HLG, MOSO, SOSEN

LED chips: Osram or Philips SMD3030

Lamp reflector: 30°, 60°, 90°, 90*120° optional

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95 THD: <15%

IP rating: IP65

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

Certifications: CE, RoHs, CB, SAA, TUV

Lifespan: >50,000 Hours

Warranty: 5 Years

Linear High Bay Lights

Description

Philips SMD3030 80W linear LED high bay lights

Model Number: CL-LHB001B80-01

Specification for 80W Linear LED high bay lights

Item Name	80W linear LED high bay lights
Item Number	CL-LHB001B80-01
Product Size	L509×W78×H124
Power	80W
Luminaire Flux	8,800lm
Beam Angle	30°, 60°, 90°, 90*120°
Luminaire Effciency	110lm/w, 150lm/w optional
Input Voltage	AC85-265V 50/60Hz
THD	<15%
Power Factor	> 0.95
Light Color	Warm White	Natural White	Cool White
Color Temperature	2700-3300K	4000-4500K	6000-6500K
CRI	>75, higher CRI optional
IP Rating	IP65
LED Driver	Meanwell HLG or ELG, or MOSO
LED Chips	Philips Lumileds Luxeon 2D 3030 or Osram 3030
LED Quantity	128Pcs
Working temperature	-30-±60℃
Lifespan	>50,000 hours
Warranty	5 Years

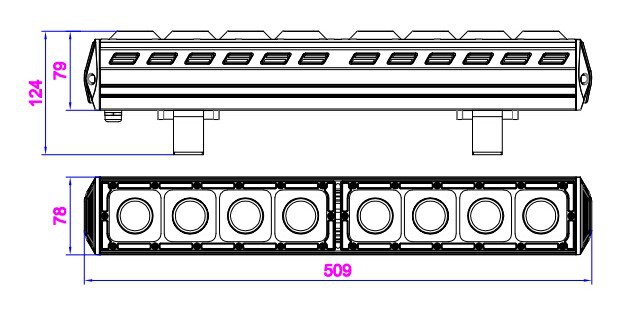

Product size for 80W Linear LED high bay lights

Features for 80W Linear LED high bay lights

✓ High purity punched Aluminum alloy for heat sink, high thermal dissipation reach 220W/m.K

✓ Beam angle 30°, 60°, 90°, 90*120° optional for different lighting purpose, light up aisle in a warehouse, also can be light up large area as high bay lighting.

✓ Water proof IP65 rated, can be used in outdoor lighting, such as wall washer light.

✓ Environmental friendly, no poisonous substances, no lead or mercury, all materials can be recycled

✓ Can be installed by hanging on the ceiling, or screw fixed on the floor/ceiling.

✓ Meanwell or MOSO LED driver, 5-7 years warranty.

✓ LM-80 listed Osram or Philips 3030 LED chips, high luminaire efficiency, normally 110lm/w, 150lm/w optional by the latest LED technology. Can be used to replace 250W HPS or metal halide high bay light directly.

✓ Comply with AU, EU, US safty and electric regulations.

✓ 5 Years quality warranty.

Application for 80W linear LED high bay lights

✓ To replace 250W HPS or metal haide high bay light directly

✓ With water IP65 design, and because of multi beam angle, it can be used as LED high bay light, LED wall washer light, LED tunnel light,
