Philips Lumileds SMD3030 150W LED Flood lights

Item Name: 150W LED flood Lights

Item No.: CL-FL002C150-01

Total Lumen: 18,000±5%lm; 120lm/w;

LED Driver: Meanwell ELG/HLG, MOSO

LED chips: Osram/Philips SMD3030 or CREE

Beam Angle: 60*60°, 90*90°, 90*60°, 60*150°, 120*120°, 78*132° optional

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95 THD: <15%

IP rating: IP65

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

Certifications: CE, RoHs, CB, SAA, TUV

Lifespan: >50,000 Hours

Warranty: 5 Years

LED Flood Lights

Description

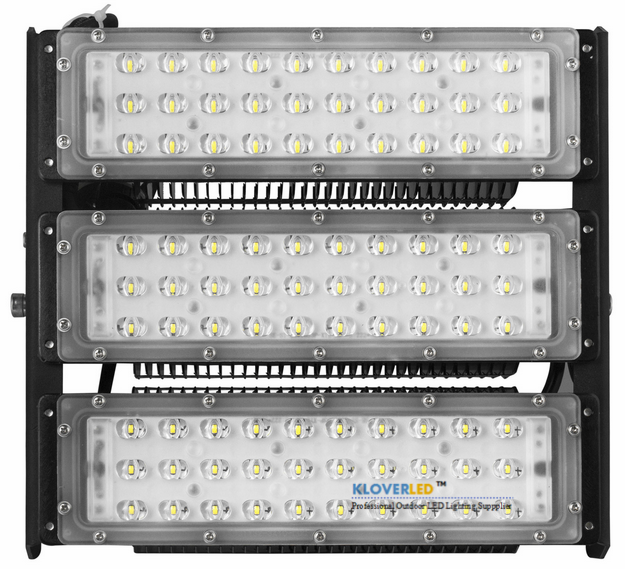

Philips Lumileds SMD3030 150W LED Flood lights

Model Number: CL-FL002C150-01

150W flood light with Philips chip and driver

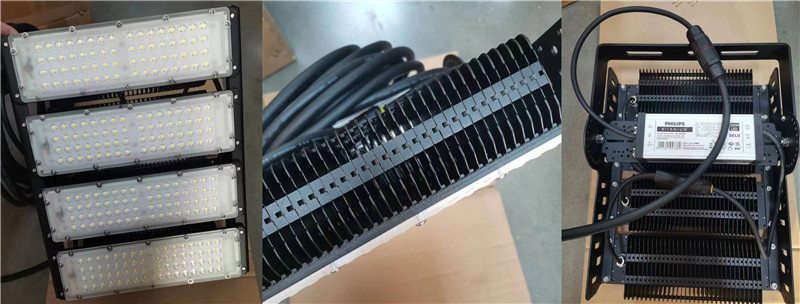

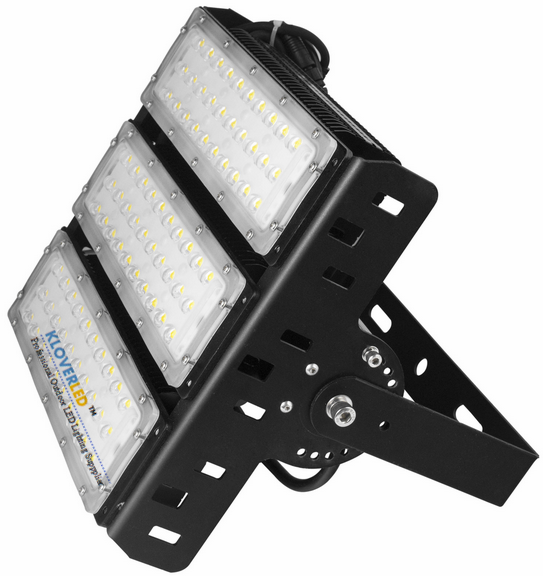

150W LED flood light with Philips Lumileds Luxeon 2D 3030 chip and Philips XItanium driver

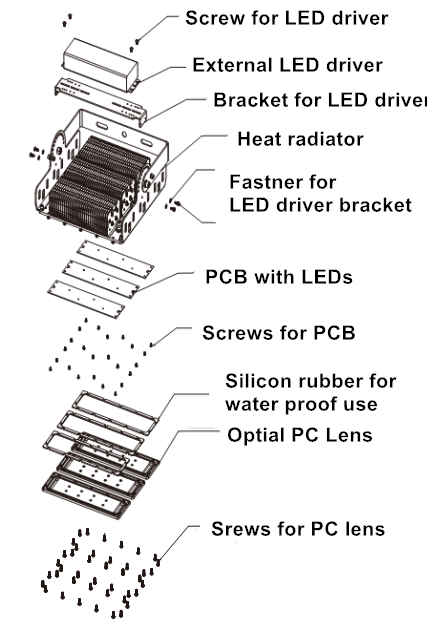

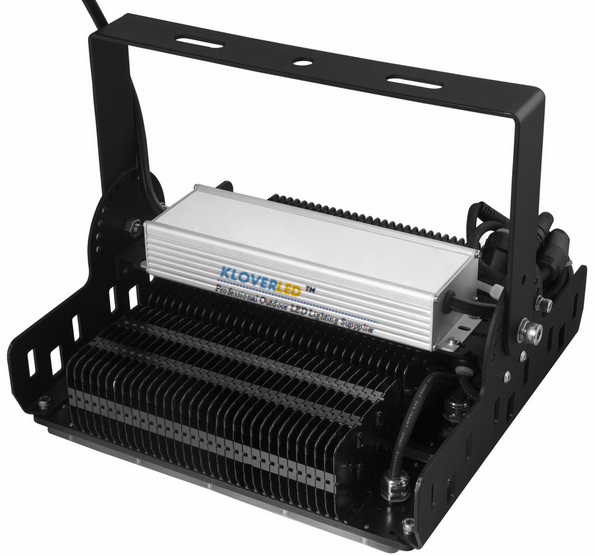

4.5mm thickness aluminum bottom plate, each module with 32pcs cooling fin to quickly bring down LED chips temperature; 64pcs LEDs for each module, 50W per modules.

Features for Philips Lumileds SMD3030 150W LED Flood lights

✓ Multi-fin design, punched/stamped high purity 1070 aluminum alloy, excellent heat dissipation to reduce luminaire decay and extend lamp lifespan.

✓ More light in weight than die-casting or extruted aluminum alloy housing.

✓ Multi-Beam angle for optical lens, for different lighting purpose

✓ IP68 design, put in 5m water for 4 hours and no leakage.

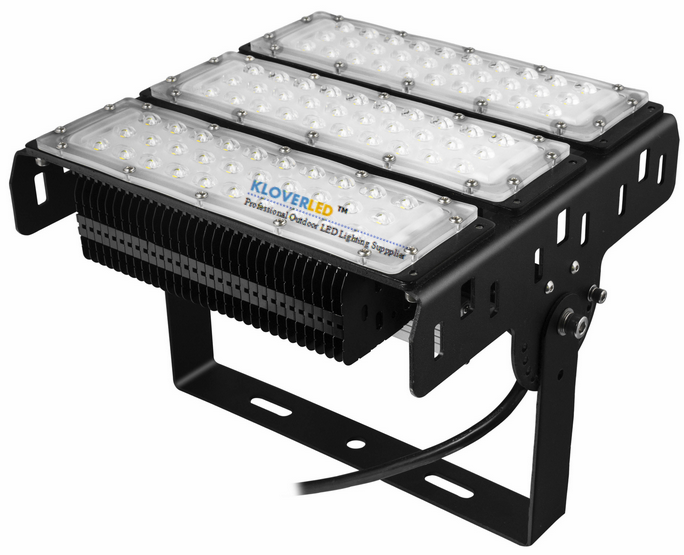

✓ 180 degree adjustable brackets

✓ Anodised treatment with powder coating, never rust or corossion.

✓ LM-80 rated CREE XTE/XPE, Osram SMD3030 or Philip Lumileds 3030 optional

✓ Meanwell ELG/HLG or MOSO driver optional

✓ 5 year warranty, design lifespan for over 10 years.

Specifications for Philips Lumileds SMD3030 150W LED Flood lights

Item Name	150W LED Flood Lights
Model No.	CL-FL002C150-01
Rated Power	150W
Total Lumen	18,000±5%lm

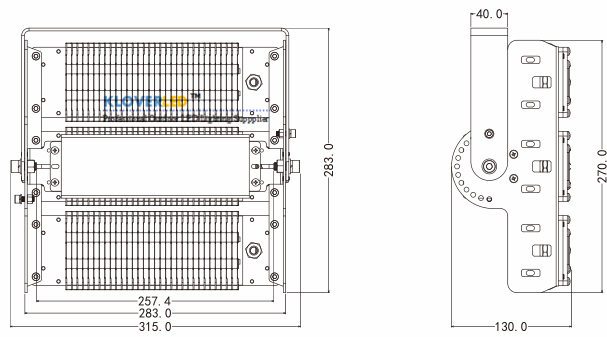

Product Size(mm)	L315×W238×H130
Beam Angle Option A	120120°, 78132° with CREE XTE Chips
Beam Angle Option B	6060°, 9090°, 9060°, 60150° with SMD3030 Chips
Input Voltage	AC85-265V 50/60HZ
Power Factor	> 0.95
THD	<15%
Light Color	Warm White	Natural White	Cool White
Color Temperature	2700-3300K	4000-4500K	6000-6500K
CRI	>75, higher CRI optional
Luminare Efficiency	>120lm/w
IP Rating	IP65
Working Temperature	-30-+60℃
LED Driver	Meanwell ELG/HIG or MOSO
LED Chips	Osram 3030, Philips 3030, CREE XTE
LED Quantity	Osram 3030	Philips 3030	CREE XTE
	144pcs	144pcs	90pcs
Lifespan	>50,000 hours
Warranty	5 Years
