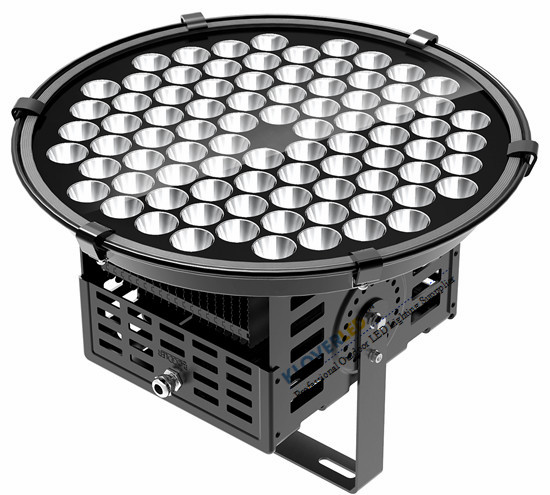

Item Name: CREE 250W Narrow Beam LED Flood Lights
Model No.: CL-SP002D250-01
Total Lumen: 25,000lm, 100lm/w
Product Size: (φ471)*361*(246*276)mm
LED Driver: Meanwell HLG
LED chips: 30pcs CREE XTE
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95 THD: <15%
IP rating: IP65 water proof
Color Temperature: 2700-6500K optional
Color Rending Index: Ra>80
IP rating: IP65 can be installed outdoor
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
Model Number: CL-SP002D250-01

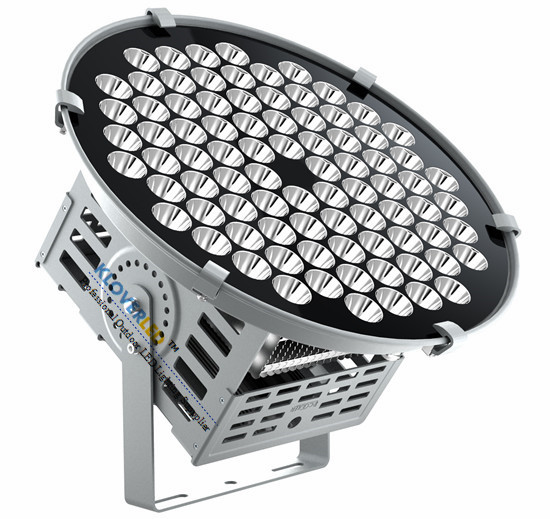

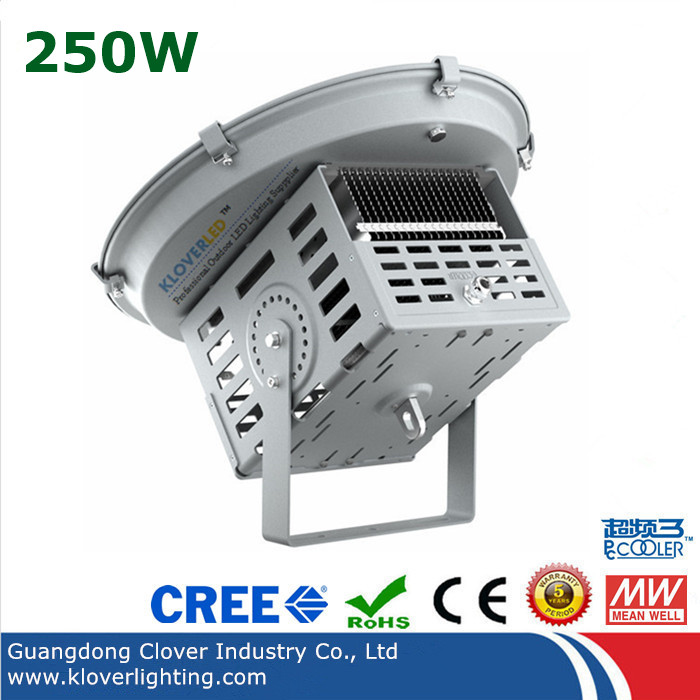

Silver color optional for 250W LED stadium flood lights
Features for Outdoor IP65 CREE XTE 250W LED Stadium Flood Lights

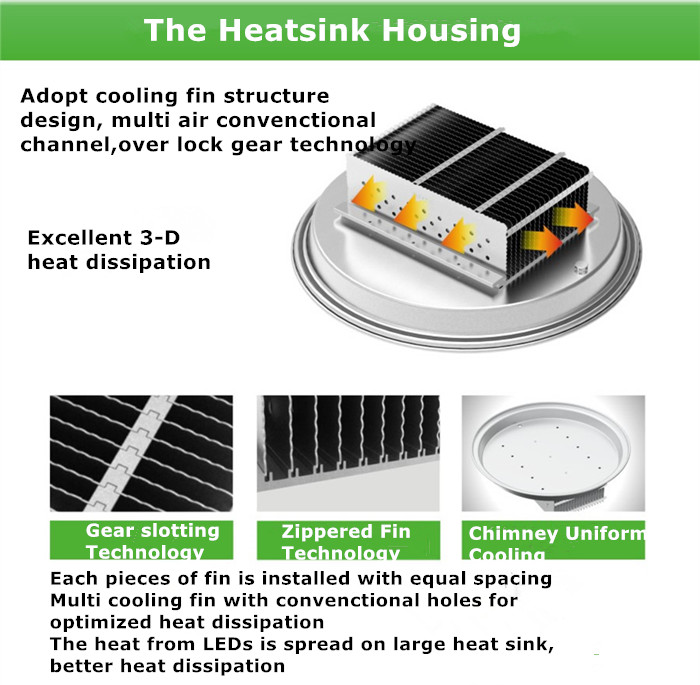

✓ Incomparable multi-cooling fin design with gear slotting technology, excellent heat dissipation ability, reduce junction temperature and extend LED chips lifespan.
✓ Multi beam angle optional, 5°, 10°, 20°, 30°, 60° available, the smaller beam angle, the longer light transmission distance; 5° angle light can reach to 500 meters
✓ IP65 design, for watter and dust proof, can be apply in outdoor places
✓ The bracket is 180 degree adjustable
✓ Equipped with Meanwell HLG/ELG or MOSO driver and LM-80 listed CREE XTE chip
✓ Rated lifespan over 50,000 hours, annual light decay is about 1%
✓ Whole lamp anodised treatment with powder coating, never rust or corrosion
✓ Comply with EU, AU, US safety and electric regulations
✓ 5 years warranty

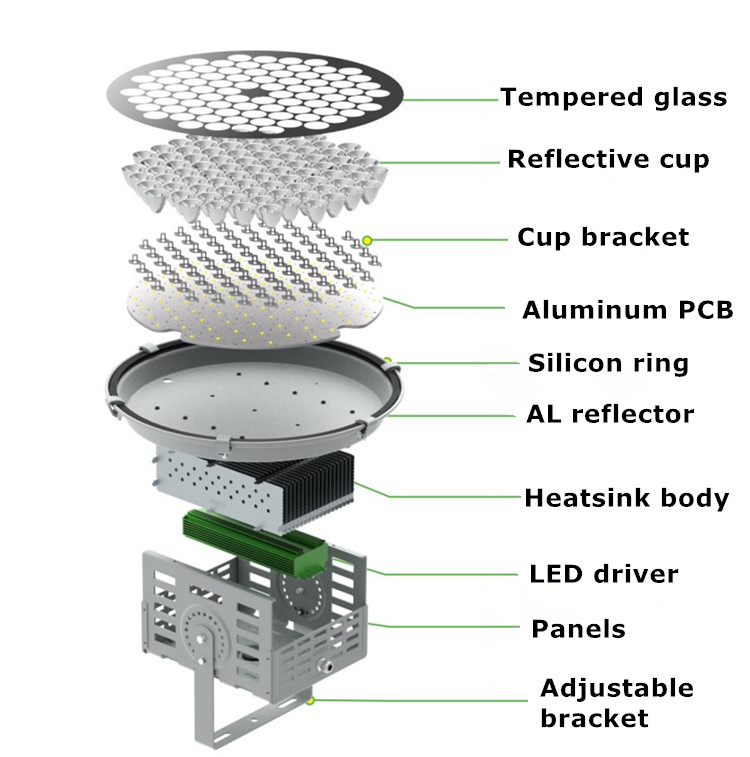

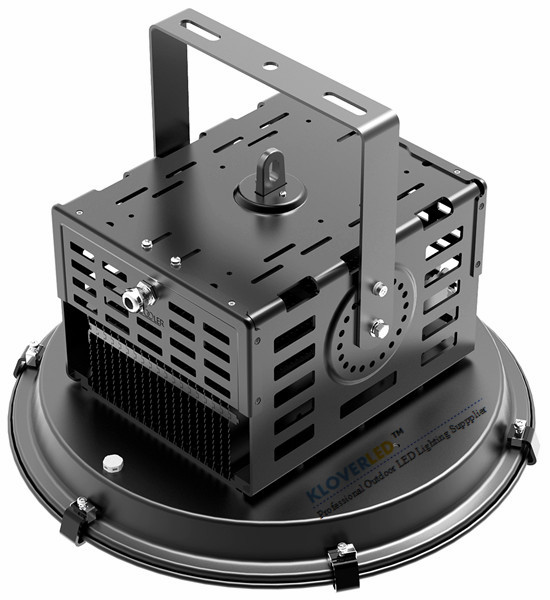

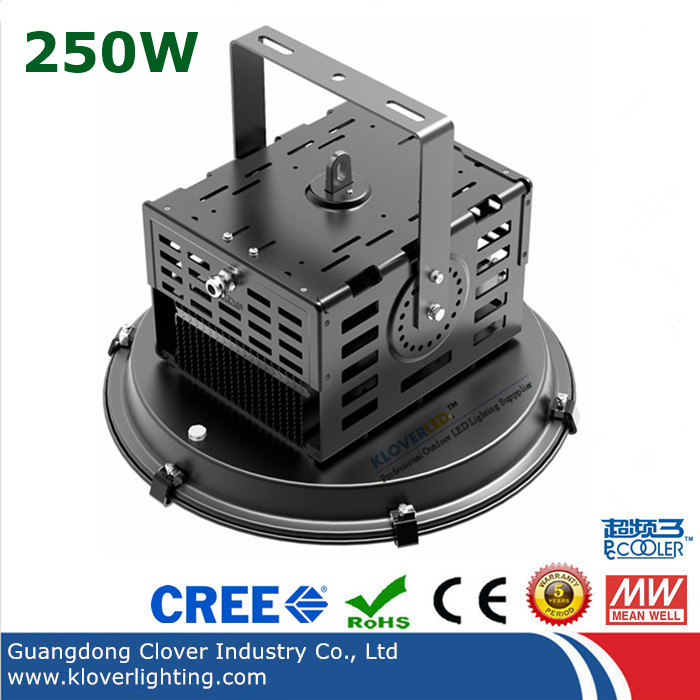

Breakdown for Outdoor IP65 CREE XTE 250W LED Stadium Flood Lights

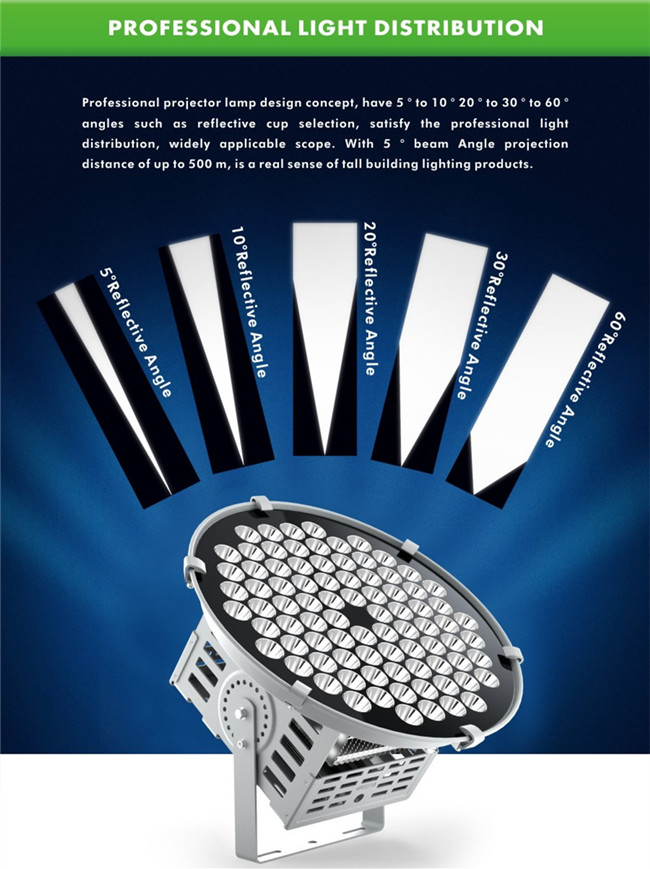

Beam angle for Outdoor IP65 CREE XTE 250W LED Stadium Flood Lights

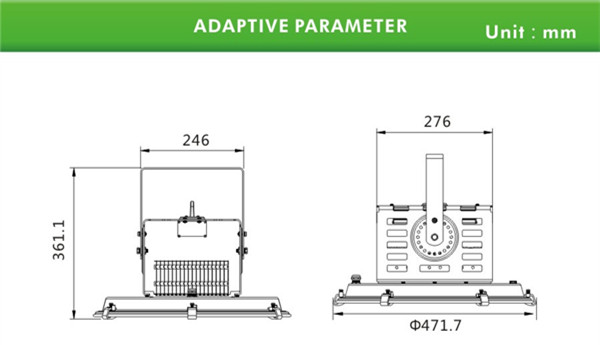

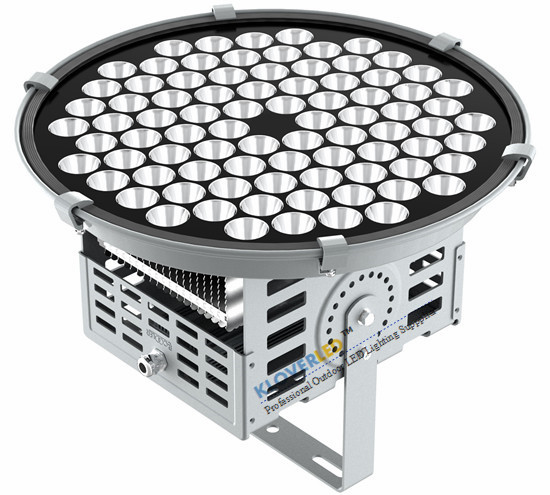

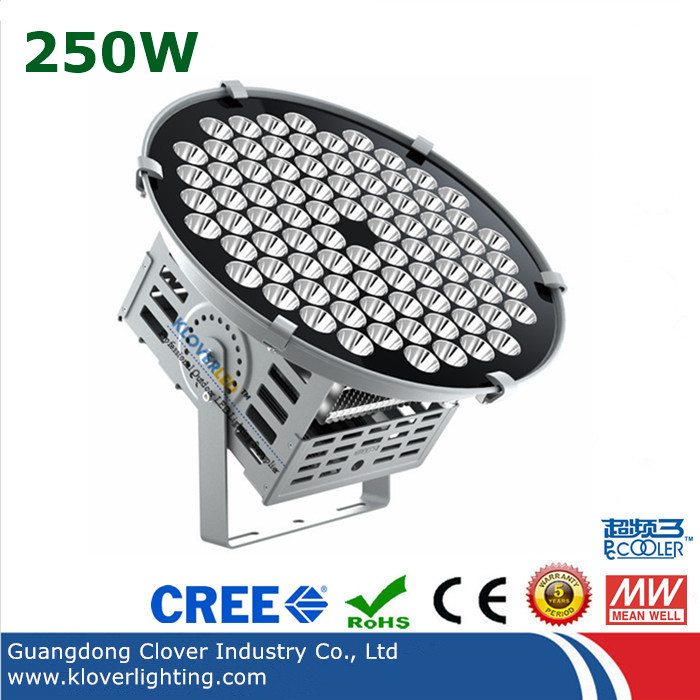

Product size for Outdoor IP65 CREE XTE 250W LED Stadium Flood Lights
Specification for Outdoor IP65 CREE XTE 250W LED Stadium Flood Lights
| Product name: | 250W narrow beam angle LED flood lights | ||
| Model No. | CL-SP002D250-01 | ||
| Power | 250W | ||
| Input voltage | AC90-295V, 50/60Hz | ||
| Power Factor | > 0.97 | ||
| THD | <15% | ||
| Lightning protector | 4KV or 10KV optional | ||
| IP Rating | IP65 | ||
| Lifespan | >50000 hours | ||
| Technical Parameters | |||
| Color | Warm White | Natural White | Cool White |
| Color Temperature | 2700-3200K | 4000-5500K | 5700-7000K |
| CRI | RA>75, higher Ra optional | ||
| Light Efficiency | 110-120lm/w | ||
| Beam angle | 5°, 10°, 20°, 30°, 60° | ||
| Main components | |||
| LED chips | 84pcs CREE XT-E | ||
| LED driver | Meanwell ELG/HLG, MOSO | ||
| Lamp body | Aluminum with copper heat pipe | ||
| Body color | Black or grey | ||
| Others | |||
| Operating Temperature | -40℃ to 50℃ | ||
| Storage Temperature | -40℃ to 60℃ | ||
| Warranty | 5 years | ||
Light Distribution Curve for Outdoor IP65 CREE XTE 250W LED Stadium Flood Lights

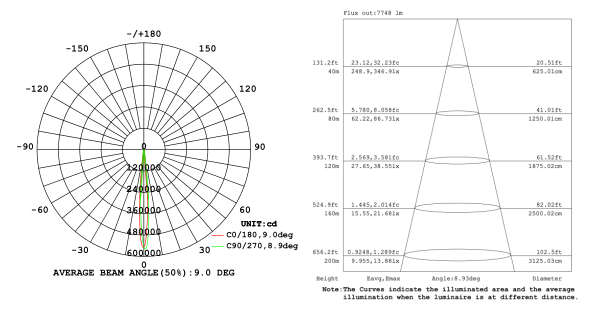

6 degree light distribution curve

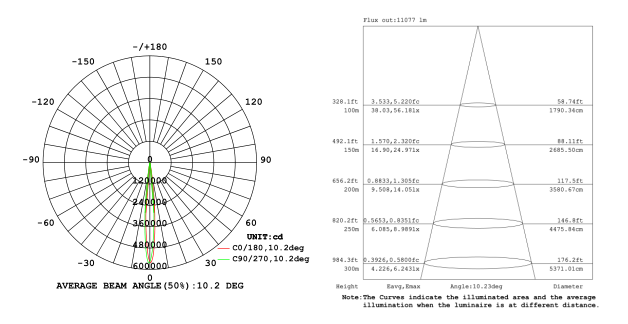

10 degree light distribution curve

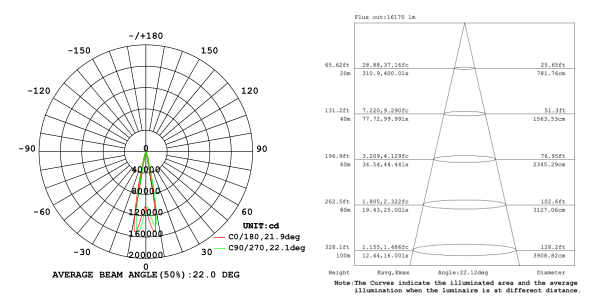

20 degree light distribution curve

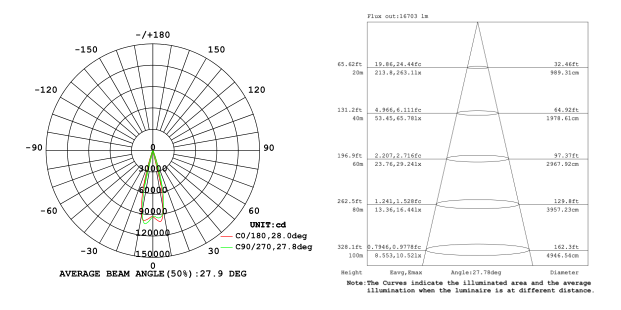

30 degree light distribution curve for 250W LED flood stadium light

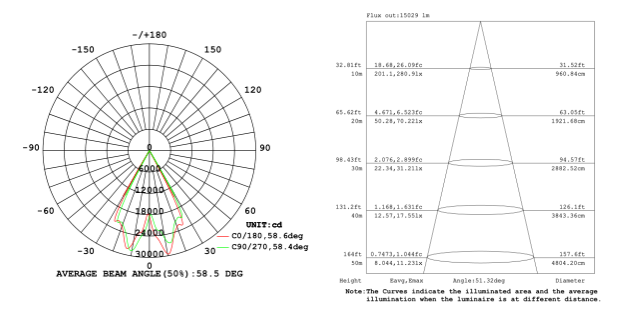

60 degree light distribution curve for 250W LED flood stadium light
Application for Outdoor IP65 CREE XTE 250W LED Stadium Flood Lights
