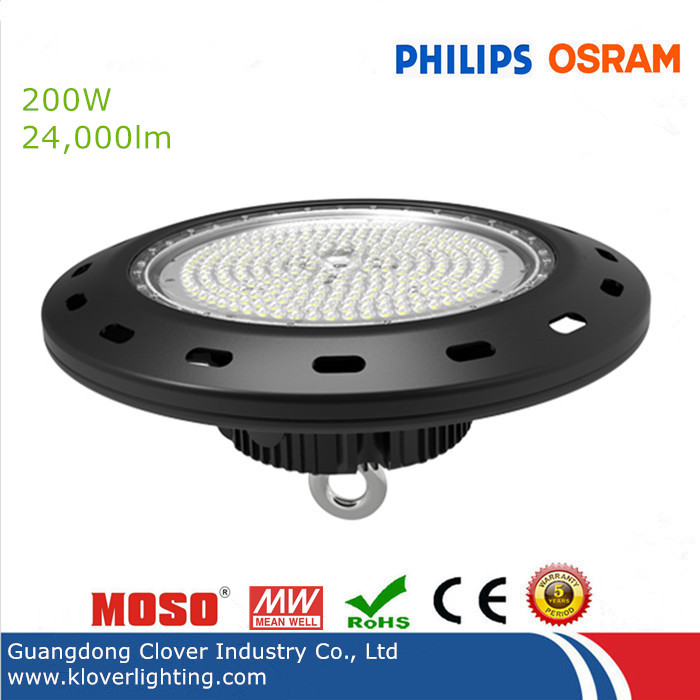

Item Name: 200W UFO LED High Bay Light
Model No.: CL-UFO001C200-1
Total Lumen: 24,000lm
Product Size: Φ400*194 mm
LED Driver: Meanwell or Moso
LED chips: 280pcs SMD Philips or Osram 3030
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95
THD: <15%
Color Temperature: 2700-6500K optional
Color Rending Index: Ra>80
IP rating: IP65 can be installed outdoor
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years

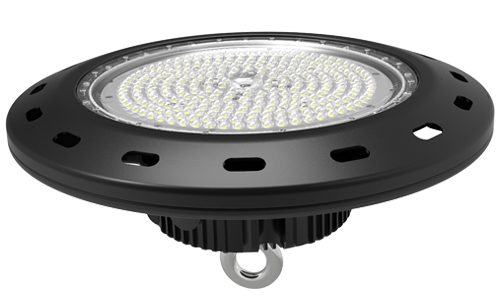

Product name: Osram 3030 chips 200W UFO LED high bay lights
Model Number: CL-HB001C200-1
Lumen efficiency: 120lm/w by Osram 3030 or Philips Lumileds Luxeon 3030
150lm/w by Bridgelux chips

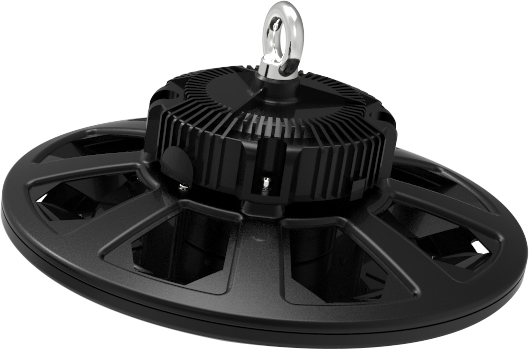

Product breakdown for 200W UFO LED high bay light
1. Hanging ring, can be bracket mounted.
2. LED driver: Meanwell or Moso optional, with UL, CB, SAA, TUV, CE certifications.
3. LED chips: Osram 3030 or Philips Lumileds Luxeon 2D 3030, whole lamp up to 120lm/w.
4. Optical lens, 60, 90, 120 degree available, high light transmission up to 90%.
Features for Osram 3030 chips 200W UFO LED high bay light
CL-HB001 series UFO LED high bay lights is the best solution for factories, logistic centers, supermarkets, gyms/arena, petrol stations, warehouses, and other places that may need lighting. Normally it is esigned to install on 6 meters or higher ceiling, IP65 rated making it can be applied both indoors and outdoors lighting.
✓ Stamped 1060 high purity aluminum alloy housing.
✓ LM80 high brightness Osram 3030 or Philips 3030 LED chips, low light decline.
✓ High power factor and efficiency LED driver, Meanwell or MOSO, with CE, UL, TUV, SAA.,etc.
✓ Extra long lifespan, up to 50,000 hours.
✓ Different hanging option, stainless steel hook, ajdustable bracket mounting also available.
✓ 5 Year Warranty.
Benifit for 200W UFO LED high bay lights
1. Instant start, no delays, no light pollution, no glare.
2. Easy-install, free of maintenance.
3. Largely save electricity bill up to 80% than traditional halogen or HPS high bay light
4. Extra long lifespan, 5 years warranty, 10 years working life.

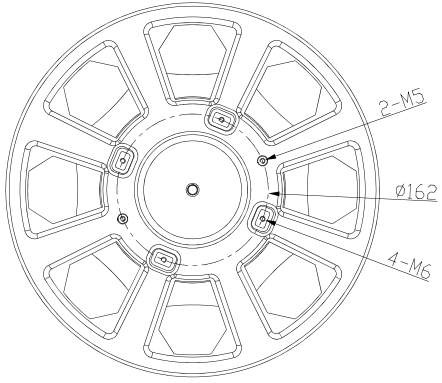

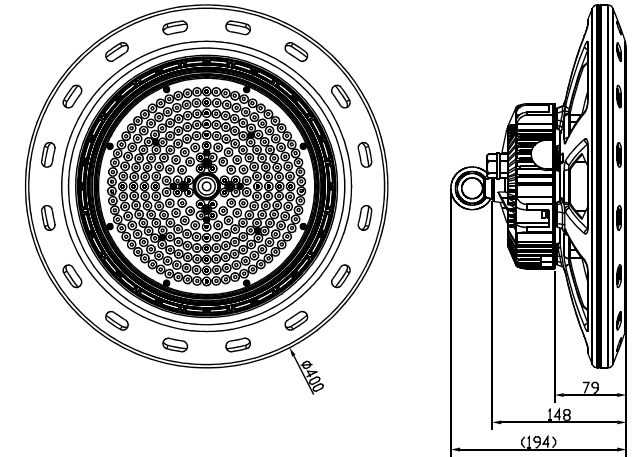

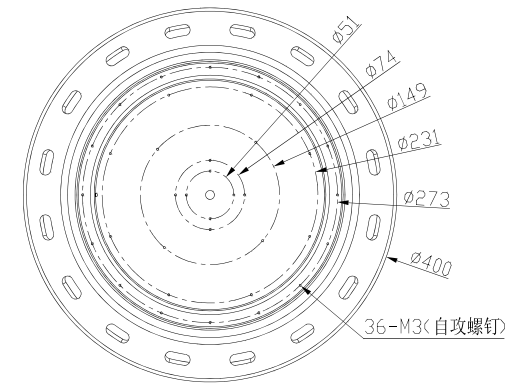

Product size for Osram 3030 chips 200W UFO LED high bay light

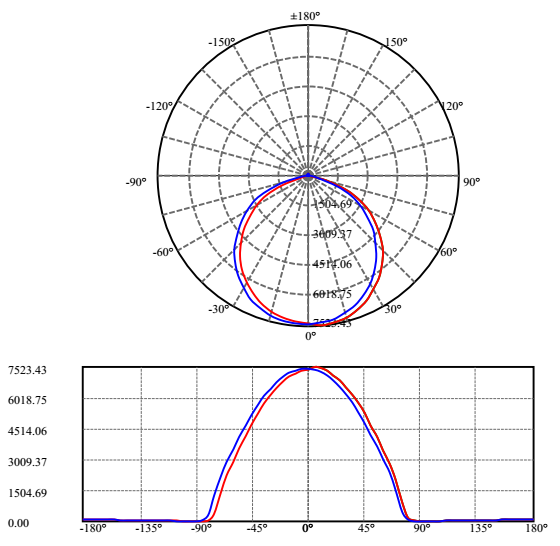

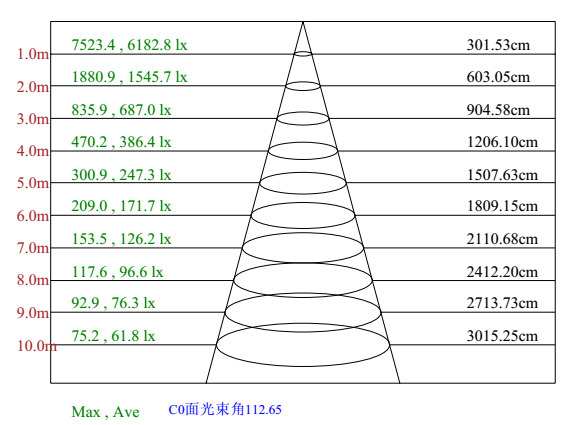

Luminous intensity distribution diagram for 200W UFO High bay lights
This is Luminous intensity distribution diagram for 150W UFO high bay light in 120 degreee beam angle.
Each watt has 60, 90, 120 degree beam angle for selection.
Mounting way for CL-UFO001 sereis UFO LED high bay light

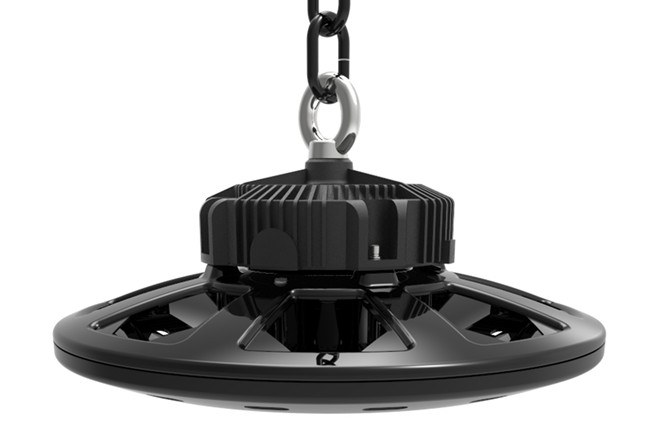

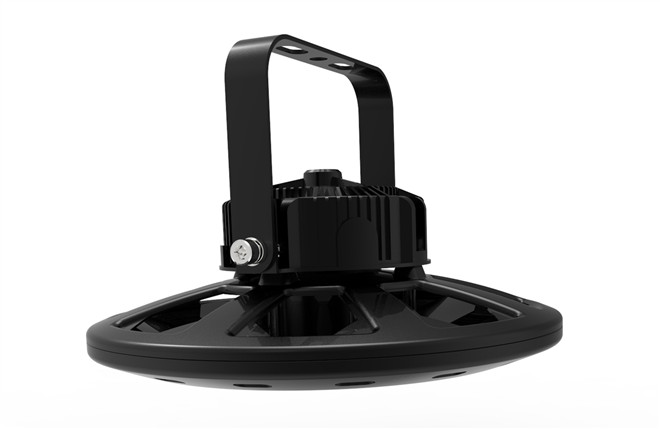

CL-UFO001 series 100W, 150W, 200W LED high bay light can be installed by hanging ring or adjustable bracket

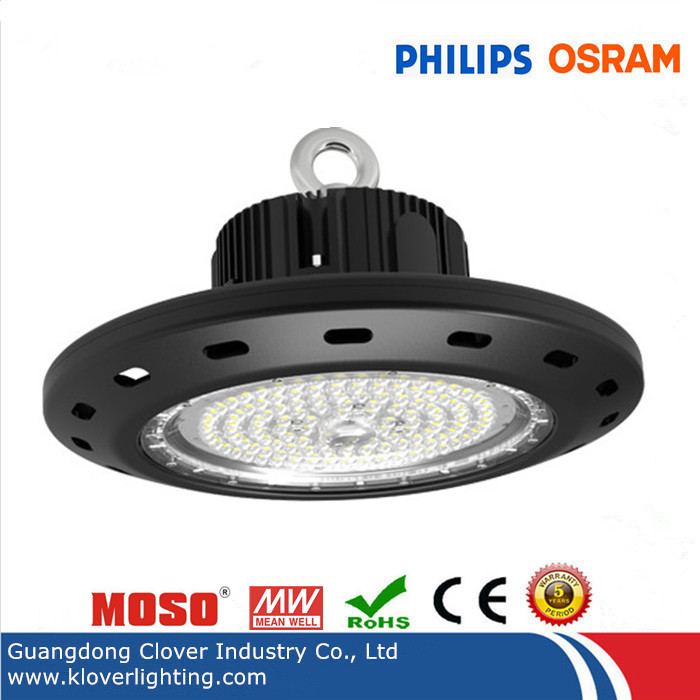

This series UFO high bay lights has 100W, 150W, 200W optional.
| Item Name | 100W, 150W, 200W UFO LED High Bay Light | ||
| Model No. | CL-UFO001A100-1 | CL-UFO001A150-1 | CL-UFO001A200-1 |
| Power | 100W | 150W | 200W |
| Total Lumen | 12,000lm | 18,000lm | 24,000lm |
| Product Size(mm) | Φ290*170 | Φ340*180 | Φ400*194 |
| Input Voltage | AC85-265V 50/60HZ | ||
| Power Factor | > 0.95 | ||
| THD | <15% | ||
| Lightning Protection | 6KV or 10KV optional | ||
| CCT | 3000-6500K | ||
| CRI | >75 | ||
| Luminare Efficiency | >120lm/w; 150lm/w optional | ||
| IP Rating | IP65 | ||
| LED Driver | Meanwell/MOSO | ||
| LED Chips | Philips Lumileds Luxeon/Osram 3030 | ||
| LED Quantity | 133pcs | 210pcs | 280pcs |
| Warranty | 5 Years | ||
