Meanwell driver Philips 3030 200W UFO LED high bay lights

Home UFO High Bay Lights Meanwell driver Philips 3030 200W UFO LED high bay lights

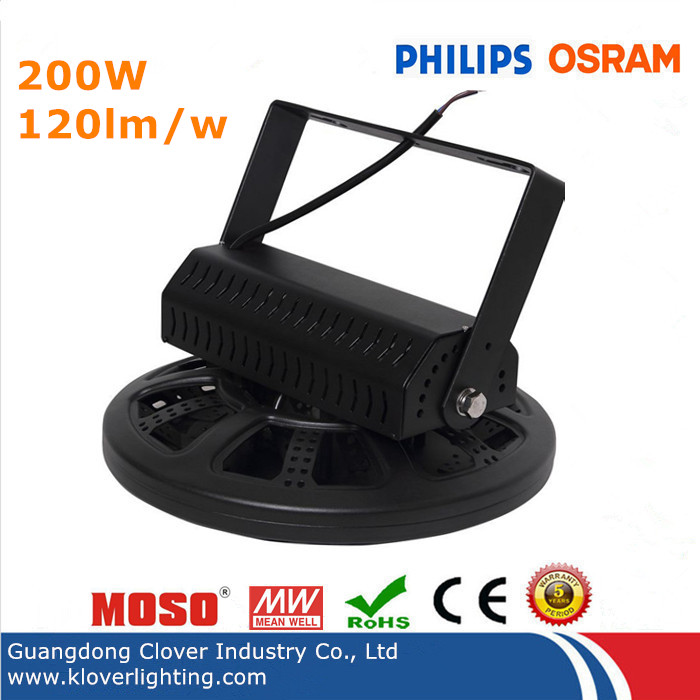

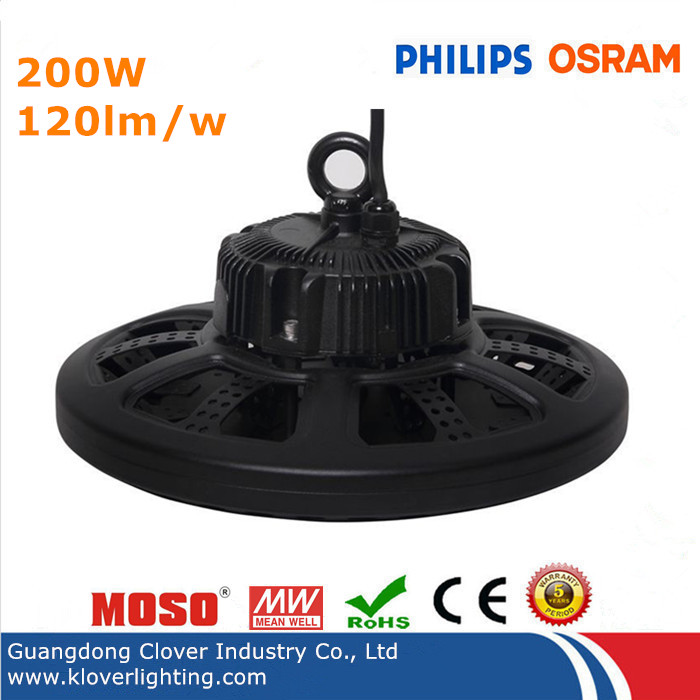

[caption id="attachment_648" align="alignnone" width="700"]5 year warranty Meanwell driver 200W UFO LED high bay lights Philips SMD 3030 200W UFO LED high bay lights with Meanwell driver[/caption][caption id="attachment_649" align="alignnone" width="700"]Philips Lumileds 3030 200W UFO LED high bay lights with Meanwell driver Philips SMD 3030 200W UFO LED high bay lights with Meanwell driver[/caption]

Meanwell driver Philips 3030 200W UFO LED high bay lights

Item Name: 200W UFO LED High Bay Light

Model No.: CL-UFO003C200-1

Total Lumen: 24,000lm, 120lm/w

Product Size: Φ388*196.2mm

LED Driver: Meanwell or Moso

LED chips: 252pcs Philips 3030/Osram 3030

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95    THD: <15%

IP rating: IP65 water proof

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

IP rating: IP65 can be installed outdoor

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

UFO High Bay Lights

Description

Product Name:  Meanwell driver Philips 3030 200W UFO LED high bay lights

Item Number: CL-UFO003C200-1

Specifications



Item Name 100W, 150W, 200W UFO LED High Bay Light
Model No. CL-UFO003A100-1 CL-UFO003B150-1 CL-UFO003C200-1
Power 100W 150W 200W
Total Lumen 12,000lm 18,000lm 24,000lm
Product Size(mm) Φ278*171 Φ328*178.5 Ф388*196.2
Packing Size L325*W325*H180 L375*W375*H190 L435*W435*H205
Input Voltage AC85-265V  50/60HZ
Power Factor > 0.95
THD <15%
Lightning Protection 6KV or 10KV optional
CCT 3000-6500K
CRI >75
Luminare Efficiency >120lm/w; 150lm/w optional
IP Rating IP65
LED Driver Meanwell HBG/MOSO
LED Chips Philips Lumileds Luxeon 2D 3030/Osram 3030
LED Qty 119pcs 196pcs 252pcs
Warranty 5 Years

Product photos

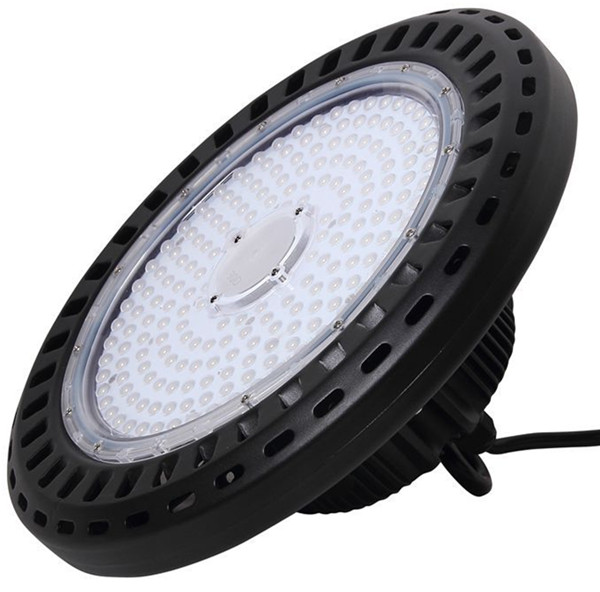

Meanwell HBG driver Philips 3030 200W UFO LED high bay lights

Meanwell HBG driver Philips 3030 200W UFO LED high bay lights

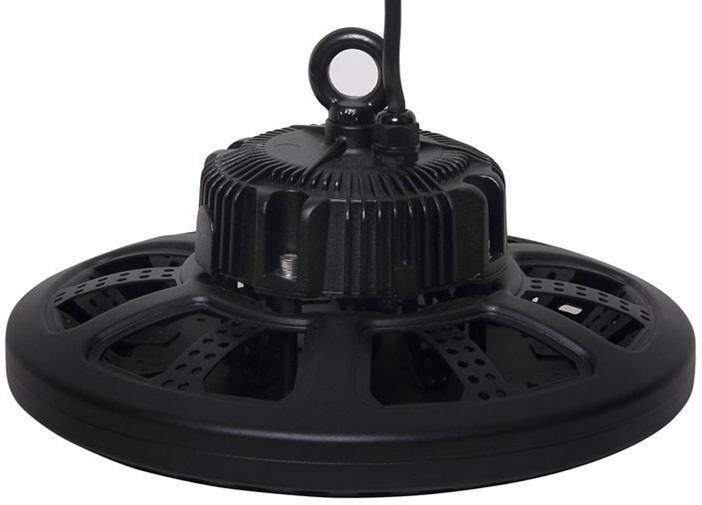

200W UFO LED high bay lights

200W UFO LED high bay light with Meanwell driver



Features for 200W UFO LED high bay lights with Meanwell driver

✓ Stamped 1060 high purity aluminum alloy, high heat conductivity up to 220W/m.K, largely reduce LED chips junction temperature, enlong lamp lifespan.

Stamped aluminum alloy for 150W UFO LED high bay lights

100W,150W,200W UFO LED high bay light use stamped aluminum alloy

✓ Professional design for optical lens, anti-glare, UGR<19, protect eyes, no light pollution.

✓ Beam angle 60°, 90°, 120° optional

✓ With hanging ring or angle adjustable bracket mounting.

✓ Equipped with Osram 3030 or Lumileds Luxeon 2D 3030 LED chips, LM-80 listed, low light decline.

✓ Meanwell HBG or MOSO brand LED driver with CB, SAA, TUV, UL, CE certifications.

✓ Driver seperated from heat sink, lamp body heat will not transmit to LED driver, to enlong driver lifespan.

✓ Water proof design IP65 rated, can be applied indoor or outdoor use

✓ Comply with EU, UN, AU standards

✓ 5 years warranty, can working even 10 years without replacement or maintenance.

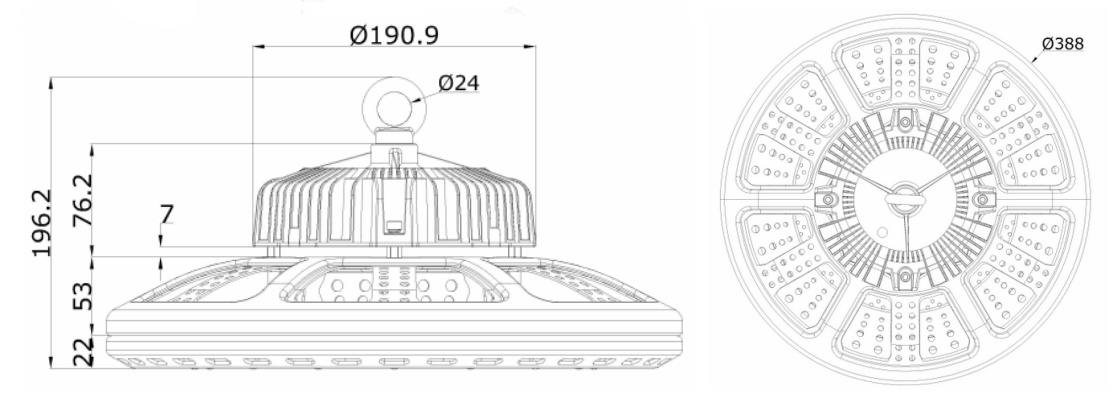

Product size for 200W UFO LED high bay lights





product size for 200W UFO LED high bay light

product size for 200W UFO LED high bay light



The light distribution curve for 200W UFO LED high bay lights



Light distribution curve for 200W UFO LED HIGH BAY LIGHTS

Light distribution curve for 200W UFO LED HIGH BAY LIGHTS



UFO LED high bay light application:

✓ Warehouse lighting

✓ Distribution centers

✓ Logistics centers.

✓ Manufacturing plants

✓ Sports Venues lighting

✓ Library/Lecture hall lighting

✓ Parking lot lighting

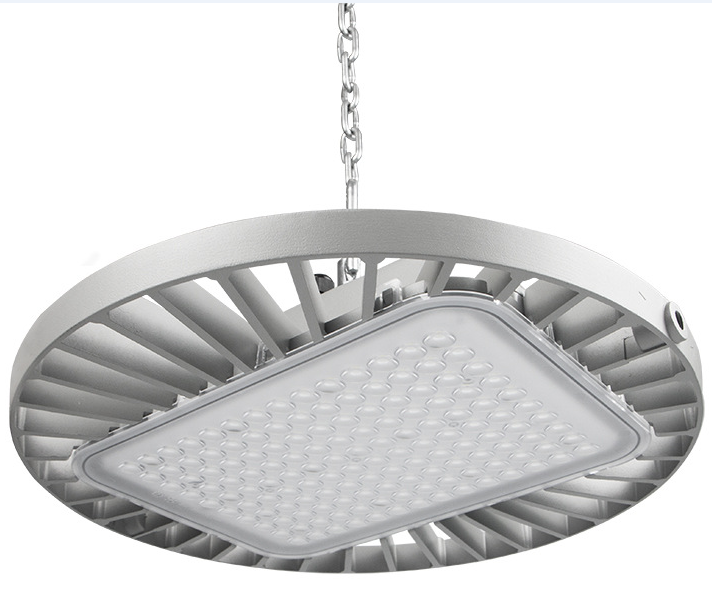

More top selling UFO high bay light available, click below photo to find more of our UFO high bay light by using Philips Lumileds chips and Philips Xitanium driver.
