Osram 3030 120W Linear LED high bay lights

IP65 120W linear LED high bay light 5 year warranty

Item Name: 120W Linear LED high bay lights

Item No.: CL-LHB001C120-01

Total Lumen: 13,200lm; 110lm/w; 150lm/w optional

LED Driver: Meanwell ELG/HLG, MOSO, SOSEN

LED chips: Osram or Philips SMD3030

Lamp reflector: 30°, 60°, 90°, 90*120° optional

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95 THD: <15%

IP rating: IP65

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

Certifications: CE, RoHs, CB, SAA, TUV

Lifespan: >50,000 Hours

Warranty: 5 Years

Linear High Bay Lights

Description

IP65 120W linear LED high bay light 5 year warranty

Model Number: CL-LHB001C120-01

Product specification for IP65 120W linear LED high bay lights

Item Name	120W linear LED high bay lights
Item Number	CL-LHB001C120-01

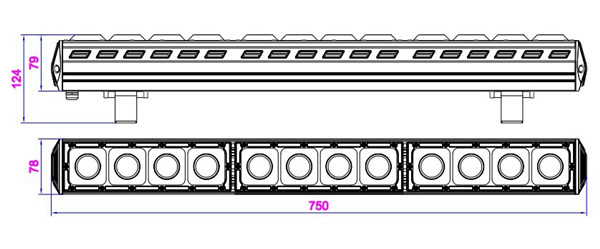

Product Size	L750×W78×H124
Power	120W
Luminaire Flux	13,200lm
Beam Angle	30°, 60°, 90°, 90*120°
Luminaire Effciency	110lm/w, 150lm/w optional
Input Voltage	AC85-265V 50/60Hz
THD	<15%
Power Factor	> 0.95
Light Color	Warm White	Natural White	Cool White
Color Temperature	2700-3300K	4000-4500K	6000-6500K
CRI	>75, higher CRI optional
IP Rating	IP65
LED Driver	Meanwell HLG or ELG, or MOSO
LED Chips	Philips Lumileds Luxeon 2D 3030 or Osram 3030
LED Quantity	128Pcs
Working temperature	-30-±60℃
Lifespan	>50,000 hours
Warranty	5 Years

Features for 120W linear LED high bay lights

✓ Super bright, LM-80 listed Philips 3030 or Osram 3030 adopted, high CRI, low light decline, eye-protection.

✓ High effciency, as we apply the best LED driver in this field, Meanwell or MOSO, more power saving.

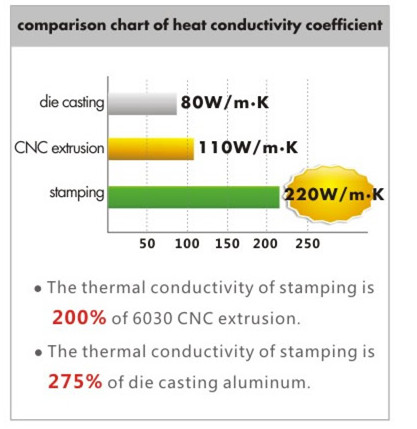

✓ Low light decline, as we use punched aluminum alloy, the heat dissipation is 2 times than extruted aluminum alloy; with air-flow holes on both side for more efficient heat dissipation.

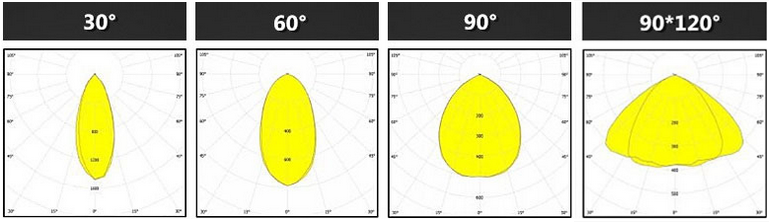

✓ Different lamp shade reflector optional, the beam angle are 30°, 60°, 90°, 90*120°, can be used in different application, such as high bay warehouse lighting, LED tunnel lighting and wall washer lighting, multi function.
