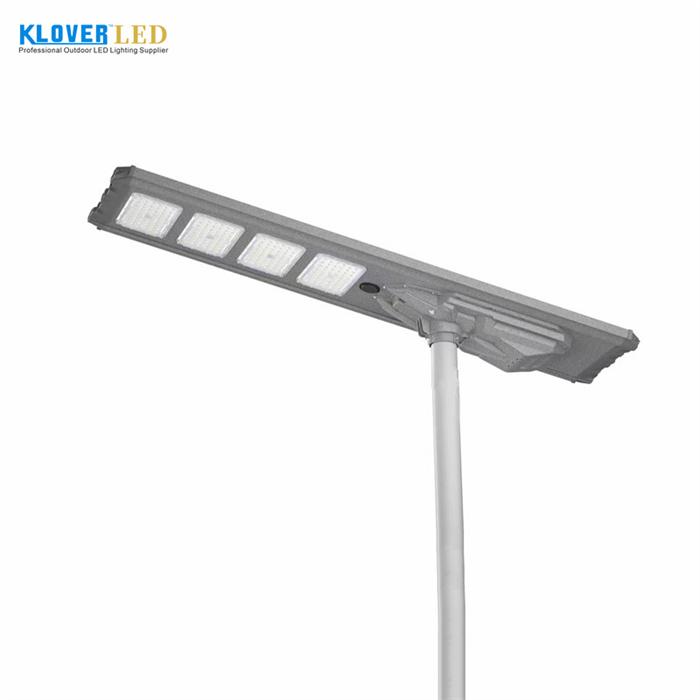

High lumen Integrated Solar Street light

Item Name: 100W integrated solar street light

Item No.: CL-SSL1208

Total Lumen: 50000-12000LM;

Luminaire Efficiency: >180lm/w;

Solar panel: 18V 80W Mono-crystalline

Battery: LiFePo4 12.8V 32Ah

LED chips: San'an SMD5054

Beam Angle: 75*140°

IP rating: IP65

Color Temperature: 6000-6500K(customize optional)

Color Rending Index: Ra>70

Lifespan: >50,000 Hours

Warranty: 3 Years

Description

High lumen Integrated Solar Street light SS1208

Quick specification

Phycical Parameters	Model No.	CL-SSL1208-1	CL-SSL1208-2	CL-SSL1208-3	CL-SSL1208-4
	Solar Panel (Mono-crystalline)	6V 60W	6V 80W	6V 100W	18V 120W
	Battery(LiFePo4)	3.2V 60Ah	3.2V 80Ah	3.2V 100Ah	12.8V 42Ah
	Installation height(m)	4-6m	6-8m	7-9m	10-12m
	Light Source	Bridgelux SMD 5054
	LED Qty	50PCS	100PCS	150PCS	200PCS
	LED Controller	SRNE/Depower/Lumiax
	Materials	die-casting aluminum battery box+aluminum profile+PC optical lens+PC end caps
	Product size(mm)	942415150	1107415150	1370415150	1600415150
	Operating Temp.	-40ºC to +60ºC
	Water proof	IP65
Light Parameters	THD	≤10%
	Color Temperature	2700-6500K optional
	Beam Angle	70*140 degree
	CRI	Ra≥70
	Luminaire efficiency	>170lm/w
	Lifespan	≥50,000 hours
	Warranty	5 years

Features for China factory wholesale aluminum outdoor IP65 high lumen 15W 20W 30W 50W solar street light

1. High lumen output; using high lumen LM-80 listed 5054chips, 2100-220lm/w, Ra>70; Luminaire efficiency >180lm/w.
2. Mono-crystalline solar panel, lifespan over 25 years, with conversion over 22%.
3. New LiFePo4 battery, lifespan over 2000 cycles.

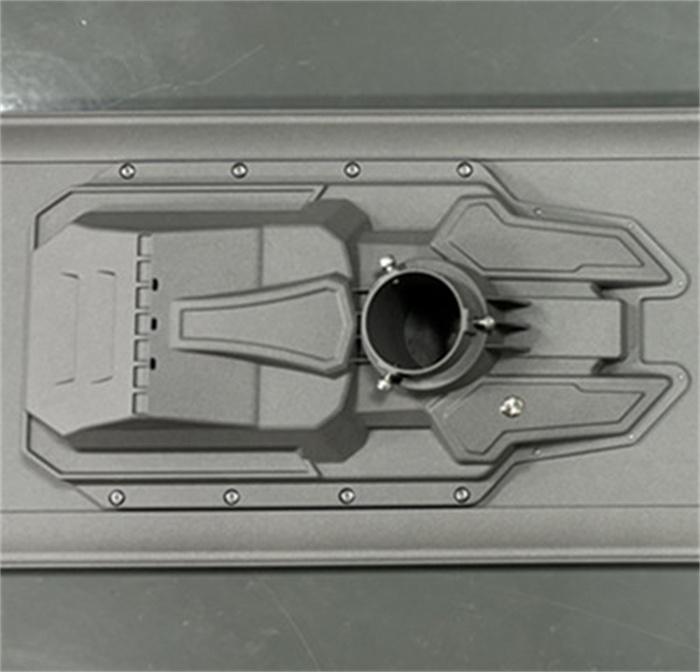

4. Easy maintenance, the battery box is made from die-casting aluminum alloy, it can be removed easily to replace battery and controller.
5. Equipped with microwave sensor, to save energy and enlong lighting time.
6. Installation height up to 10m, can replace AC street light for main road lighting.
7. The whole light is designed 30 degree upward to maximum receive sun power.
