High Lumen Bridgelux 160W Linear LED high bay lights

Home Linear High Bay Lights High Lumen Bridgelux 160W Linear LED high bay lights

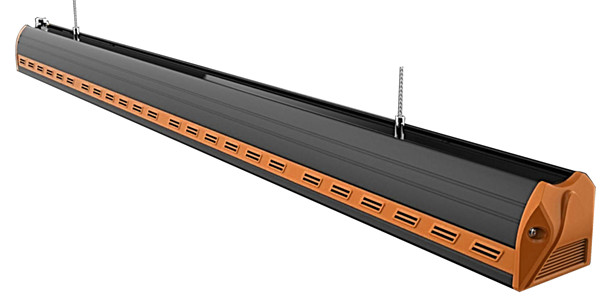

160W linear LED high bay lights160W linear LED high bay lights

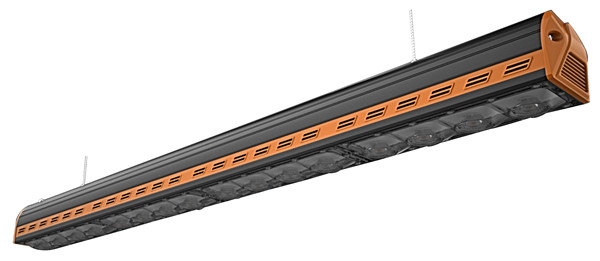

High Lumen Bridgelux 160W Linear LED high bay lights

Item Name:  160W Linear LED high bay lights

Item No.: CL-LHB001D160-01

Total Lumen: 24,000lm; 150lm/w optional

LED Driver: Meanwell ELG/HLG, MOSO, SOSEN

LED chips: High lumen Bridgelux

Lamp reflector: 30°, 60°, 90°, 90*120° optional

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95 THD: <15%

IP rating: IP65

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

Certifications: CE, RoHs, CB, SAA, TUV

Lifespan: >50,000 Hours

Warranty: 5 Years

Linear High Bay Lights

Description

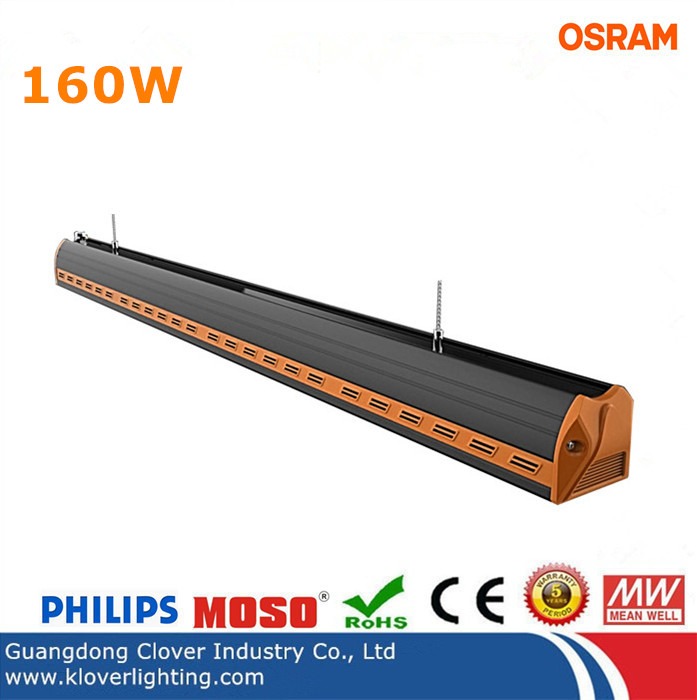

High Lumen Bridgelux 160W Linear LED high bay lights

Item Number:  CL-LHB001D160-01

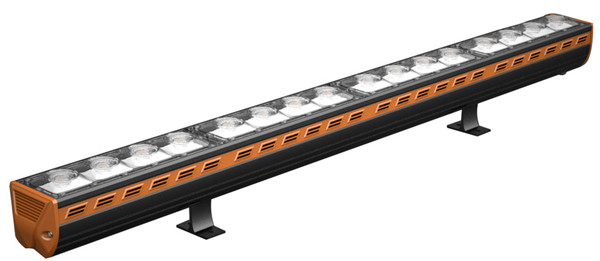

HIGH lume 160W linear LED high bay lights

160W linear LED high bay lighting

high lumen Bridgelux 160W linear LED high bay lights

Product specification for high lumen 160W linear LED high bay lighting



Item Name 160W linear LED high bay lights
Item Number CL-LHB001D160-01
Product Size L990×W78×H124
Power 160W
Luminaire Flux 24,000lm
Beam Angle 30°, 60°, 90°, 90*120°
Luminaire Effciency 150lm/w
Input Voltage AC85-265V 50/60Hz
THD <15%
Power Factor > 0.95
Light Color Warm White Natural White Cool White
Color Temperature 2700-3300K 4000-4500K 6000-6500K
CRI >75, higher CRI optional
IP Rating IP65
LED Driver Meanwell HLG or ELG, or MOSO
LED Chips High lumen Bridgelux SMD3030
LED Quantity 128Pcs
Working temperature -30-±60℃
Lifespan >50,000 hours
Warranty 5 Years

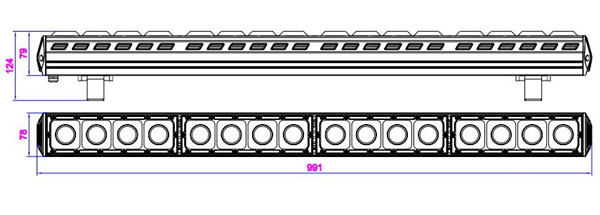

Product size for high lumen Bridgelux 160W linear LED high bay lights

size for 160W linear LED high bay lights

Features for high lumen Bridgelux 160W Linear LED high bay lights

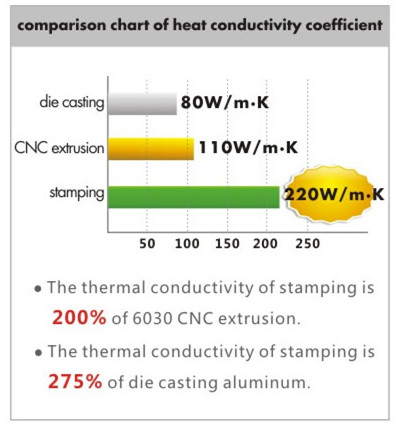

✓  High quality punched aluminum alloy, with excellent heat dissiption, thermal conductivity reach 220W/m.k.

The best material for heat dissipation, largely reduce LED chips temperature, reduce light decay and extend lifespan.

material for for Linear LED high bay lights

✓  High luminaire flux, efficiency reach 150lm/w, by the latest technology on LED packaging field.

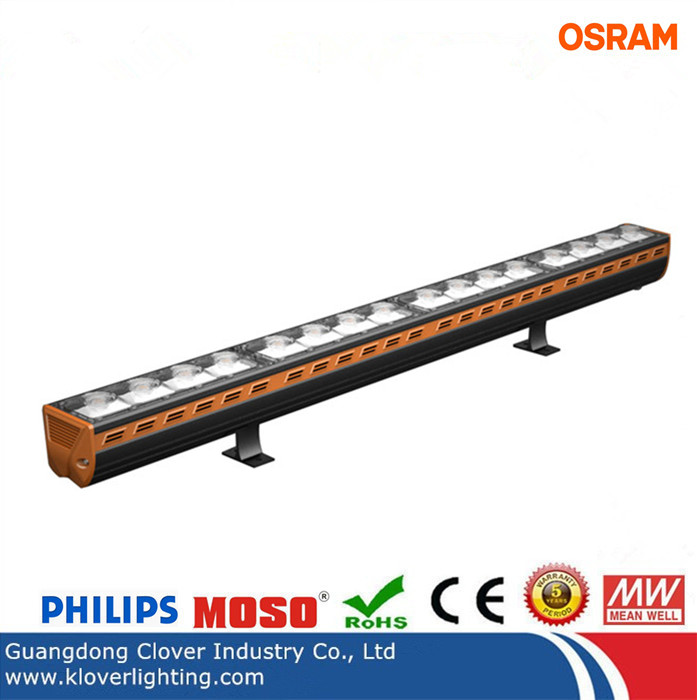

✓  Can be hanging installed, or screw fix mounted on the floor, or ceiling.

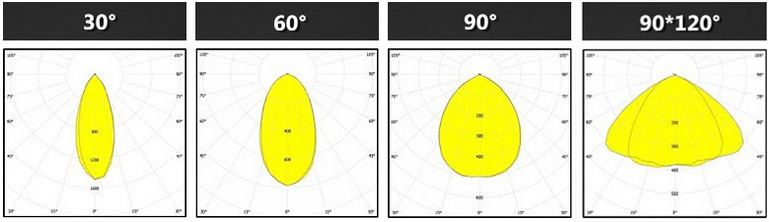

✓  With Multi-beam angle, can be used for different lighting purpose, beam angle 30°, 60°, 90°, 90*120° available.

✓  With water proof IP65 design, free from water and dust, can be used for outdoor lighting purpose.

✓  World top quality Meanwell or MOSO driver, stable performance, high efficiency over 0.95, with all kinds of protection.

✓  Echo-friendly, no harmful substances, all material can be recycled.

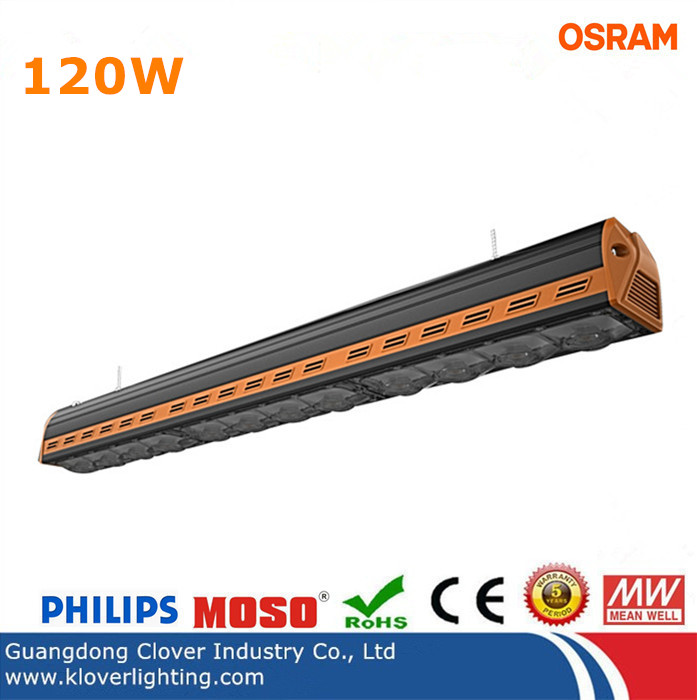

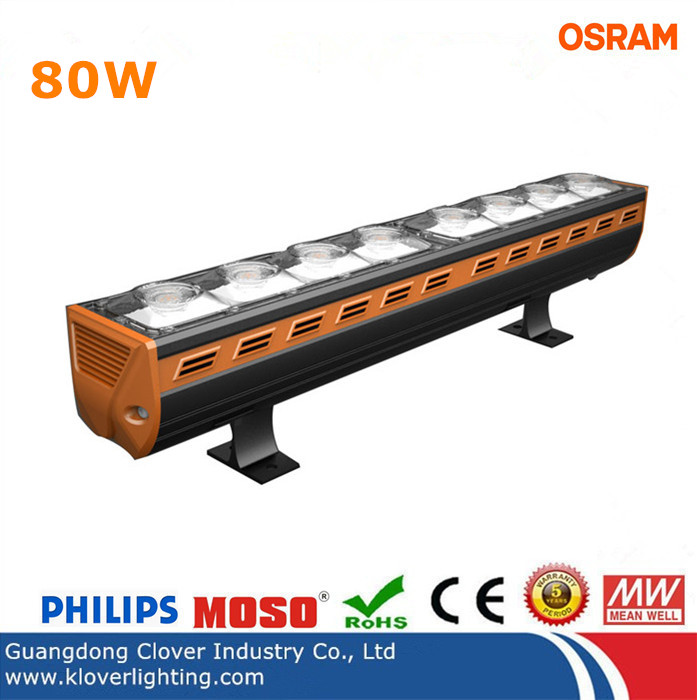

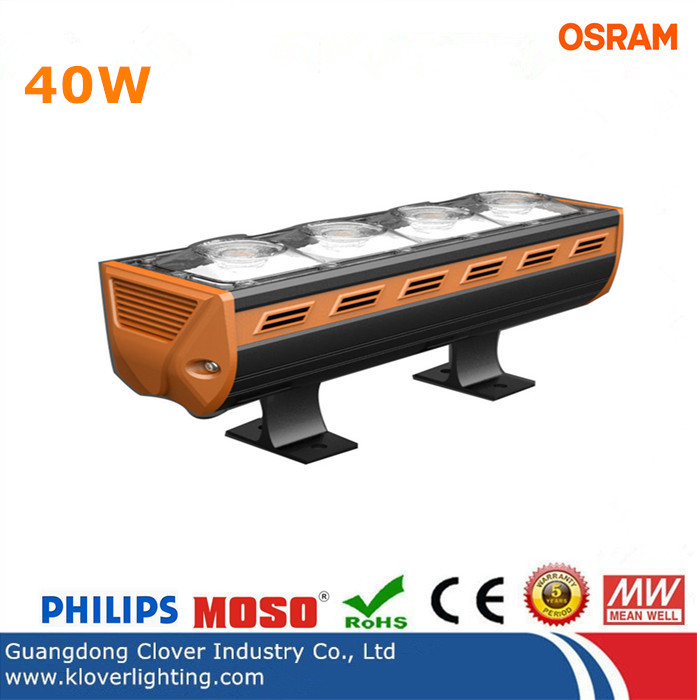

✓  Other watt 40W, 80W, 120W, optional

✓  Comply with EU, US, AU saftety and electric compliance

✓  5 year quality warranty



The main components for this 160W linear LED high bay lights



✓  Built in LED driver, Meanwell or MOSO

✓   Punched aluminum lamp body.

✓   Hanging steels or metal clips.

✓   Philps, Osram or Bridgelux LED chips

✓   PC lens
