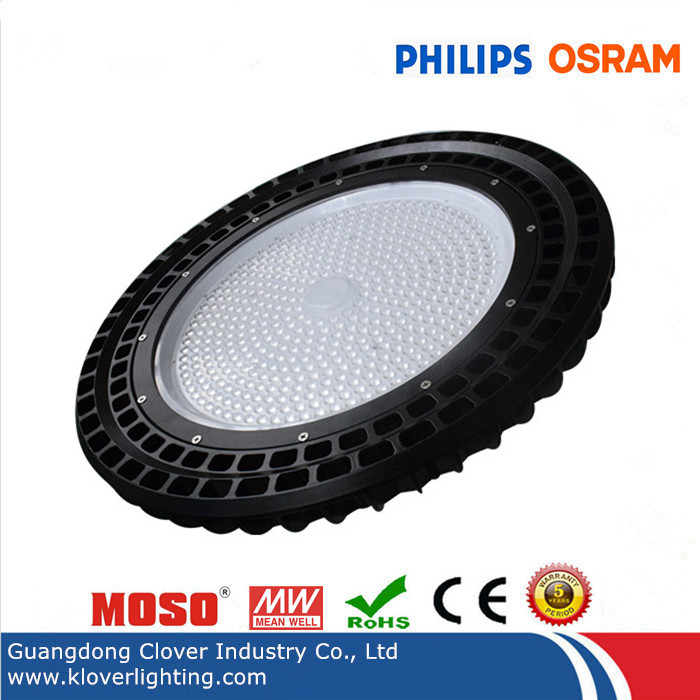

[caption id="attachment_617" align="alignnone" width="700"]
Philips Lumileds Luxeon 3030 200W UFO LED high bay lights[/caption][caption id="attachment_618" align="alignnone" width="300"]
30,000 lumen 200W UFO LED high bay lights[/caption]Item Name: 200W UFO LED High Bay Light
Model No.: CL-UFO002C200-1
Total Lumen: 30,000lm, 150lm/w
Product Size: Φ400*196.5 mm
LED Driver: Meanwell or Moso
LED chips: SMD Bridgelux 3030
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95 THD: <15%
IP rating: IP65 water proof
Color Temperature: 2700-6500K optional
Color Rending Index: Ra>80
IP rating: IP65 can be installed outdoor
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
Product specification for High Lumen 200W UFO LED high bay lights
| Item Name | 200W UFO LED HIGH BAY LIGHTS |
| Model No. | CL-UFO002C200-1 |
| Power | 200W |
| Total Lumen | 30,000lm, 150lm/w |
| Product Size(mm) | Φ400*196.5 |
| Packing Size | 460*460*210 |
| Input Voltage | AC85-265V 50/60HZ |
| Power Factor | > 0.95 |
| THD | <15% |
| Lightning Protection | 6KV or 10KV optional |
| CCT | 3000-6500K |
| CRI | >75 |
| Luminare Efficiency | >120lm/w; 150lm/w optional |
| IP Rating | IP65 |
| LED Driver | Meanwell/MOSO |
| LED Chips | High lumen Bridgelux 3030 |
| LED Qty | 238pcs |
| Warranty | 5 Years |

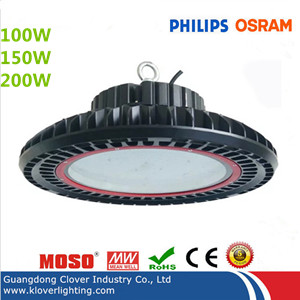

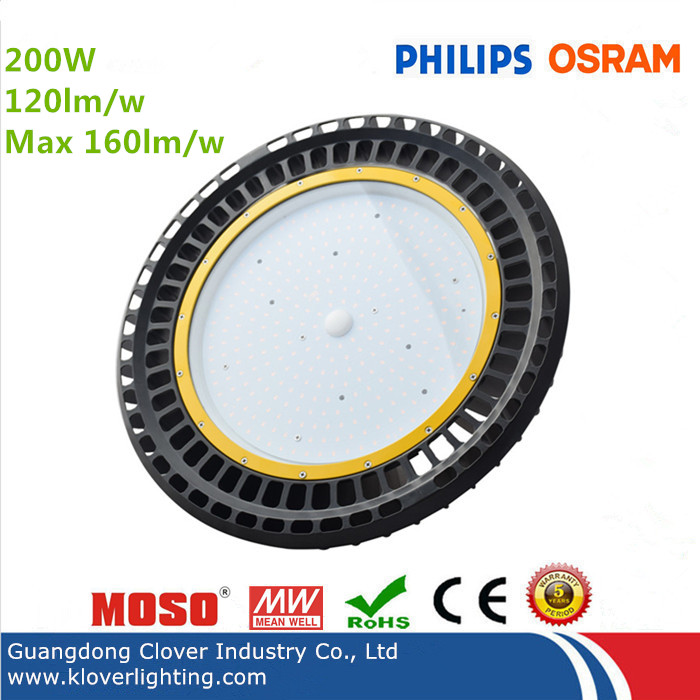

Products pictures for IP65 150lm/w Bridgelux 3030 200W UFO LED high bay lights
IP65 100w 150w 200w UFO led high bay lights with Meanwell or MOSO driver, Philips 3030 LED chips, 5 years warranty.
Features for IP65 200W UFO LED high bay lights
✓ Energy efficient up to 150lm/w, save 70% more energy than traditional Metal halide or HPS high bay lights
✓ Professional optical design for light transimission, 60°, 90°, 120° avaialbe
✓ Soft light, no glare, no blinking, no light pollution, no noise.
✓ Compact and modern design, attractive appearance, IK09 rated
✓ High purity die-casting aluminum alloy heat sink design for better heat dissipation
✓ Meanwell HBG or MOSO LED driver and LM-80 Philips or Osram 3030 LED chips for extended longer lifetime
✓ IP65 design, can be used indoor or outdoor
✓ Comply with EU, UN, AU standards
✓ 5 years warranty, can lighting up for over 10 years, free of replacement or maintenance

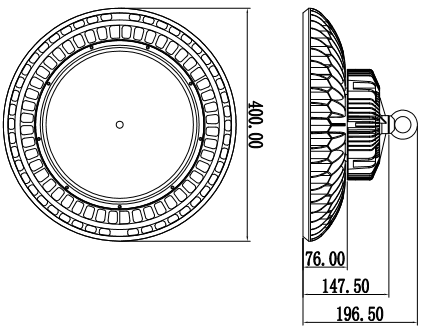

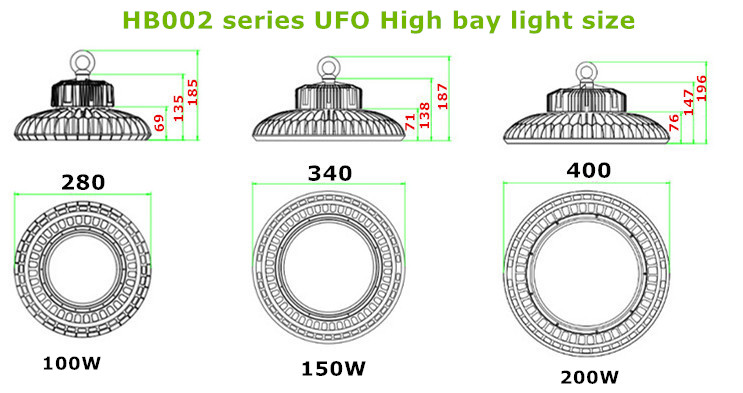

Product size for IP65 200W UFO LED high bay light with Philips SMD3030 LED chips

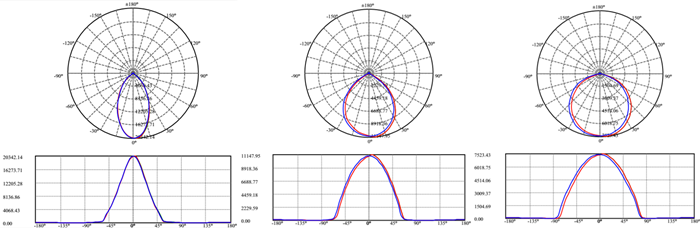

Light distribution curve for IP65 200W UFO LED high bay lights
Light distribution curve for 100W, 150W, 200W UFO LED high bay lights
Application for IP65 100W 150W 200W UFO LED high bay lights
✓ Industrial factories, workshops and warehouses
✓ Shopping malls, super market and exhibition halls/centers
✓ Logistic centers, shipyard, wharf
✓ Outdoor gas station canopy light and car park lots.,etc

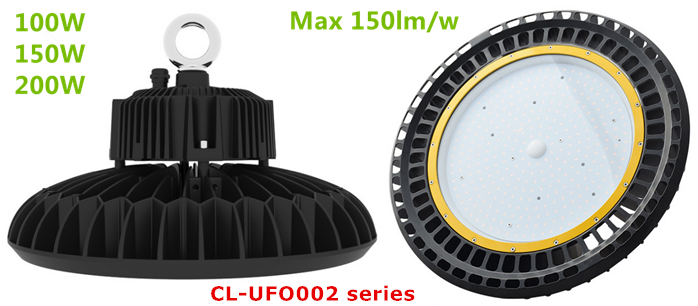

Full range of UFO002 series LED high bay lights
| Item Name | 100W, 150W, 200W UFO LED High Bay Light | ||
| Model No. | CL-UFO002A100-1 | CL-UFO002B150-1 | CL-UFO002C200-1 |
| Power | 100W | 150W | 200W |
| Total Lumen | 12,000lm | 18,000lm | 24,000lm |
| Product Size(mm) | Φ280*185 | Φ340*187 | Φ400*196.5 |
| Packing Size | 320*320*210 | 385*385*195 | 460*460*210 |
| Input Voltage | AC85-265V 50/60HZ | ||
| Power Factor | > 0.95 | ||
| THD | <15% | ||
| Lightning Protection | 6KV or 10KV optional | ||
| CCT | 3000-6500K | ||
| CRI | >75 | ||
| Luminare Efficiency | >120lm/w; 150lm/w optional | ||
| IP Rating | IP65 | ||
| LED Driver | Meanwell/MOSO | ||
| LED Chips | Philips Lumileds Luxeon 2D 3030/Osram 3030
High lumen Bridgelux 3030 |
||
| LED Qty | 126pcs | 182pcs | 238pcs |
| Warranty | 5 Years | ||
