High Lumen 150lm/w 200W UFO LED High Bay Lights

Item Name: High lumen 200W UFO LED High Bay Light

Model No.: CL-UFO004D200-1

Total Lumen: 30,000lm, 150lm/w

Product Size: Ф400*203.5mm

LED Driver: Meanwell or Moso

LED chips: 266pcs Bridgelux SMD3030

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95 THD: <15%

IP rating: IP65 water proof

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

IP rating: IP65 can be installed outdoor

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

UFO High Bay Lights

Description

IP65 High Lumen Bridgelux SMD3030 200W UFO LED High Bay Lights with Meanwell HBG Driver, 5 years warranty

Item Number: CL-UFO004D200-1

Specifications for High Lumen 200W UFO LED high bay lights

Item Name	high lumen 200W UFO LED high bay light
Model No.	CL-UFO004D200-1
Power	200W
Total Lumen	24,000lm
Product Size(mm)	Ф400*203.5
LED Qty	266pcs
LED Driver	Meanwell HBG/MOSO
LED Chips	Bridgelux 3030 chip
Input Voltage	AC85-265V 50/60HZ
Power Factor	> 0.95
THD	<15%
Lightning Protection	6KV or 10KV optional
CCT	3000-6500K
CRI	>75
Luminare Efficiency	>110lm/w; 150lm/w optional
IP Rating	IP65
Warranty	5 Years

Product pictures

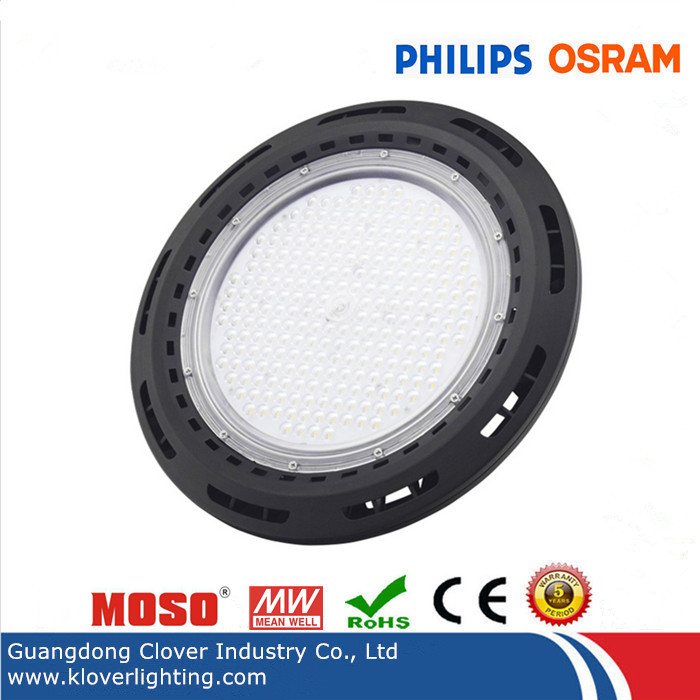

High lumen 200W UFO LED high bay lights

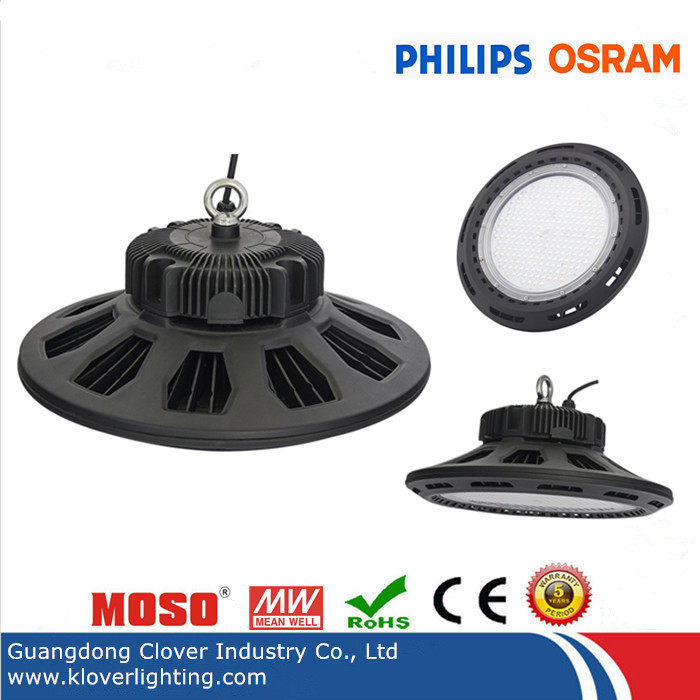

IP65 High lumen 200W UFO LED high bay lights

Products features for High Lumen 150lm/w 200W UFO LED High Bay Lights

✓ Environmental friendly, no harmful substances; Extra long lifespan over 50,000 hrs, super bright up to 150lm/w by Bridgelux LED chips.

✓ 4.0mm high purity stamped aluminum alloy is used for the main body of heat dissipation, largely reduce the lamp temperature and enlong lifespan.

✓ 3D Heat dissipation design for more air cross ventilation; under environmental temperature 30 degree, the lamp maxinum high bay light temperature will not exceed 65 degree.

✓ Eye protection design for optical lens, anti-glare, soft light, no air pollution, UGR<19.

✓ Water proof IP65 design, this series UFO LED high bay lights can be used indoor or outdoor.

✓ Top quality components, Meanwell HBG driver, Bridgelux SMD3030 chips, whole lamp reach up to 150lm/w, super bright for more energy saving.

✓ Comply with EU, US, AU standards, 5 year warranty.

Product size for High Lumen 150lm/w 200W UFO LED High Bay Lights,

product size for 200W UFO LED high bay lights

Breakdown photos for high lumen Bridgelux 200W UFO LED high bay lights

new designed 200W UFO LED high bay lights

Application for 200W High Lumen UFO LED high bay lights

200W UFO LED high bay light is always used to replace 500-700W metal halide or HPS high bay light, largely used in warehouse, industrial facility, factories, supermarket lighting, workshop, office building, gym, exhibition center, toll station, logistics centers., also other indoor and outdoor lighting purpose

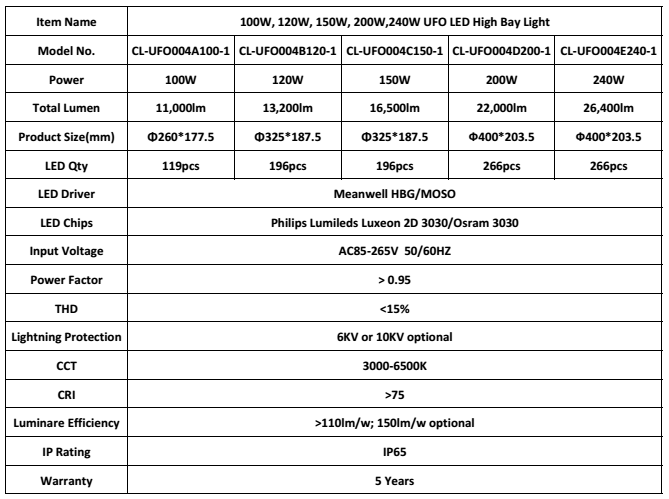

The series of UFO004 LED high bay light
