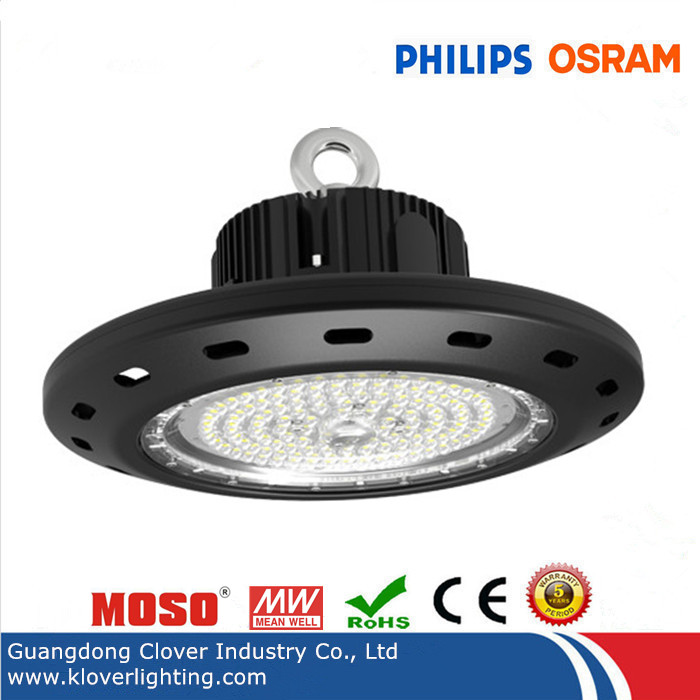

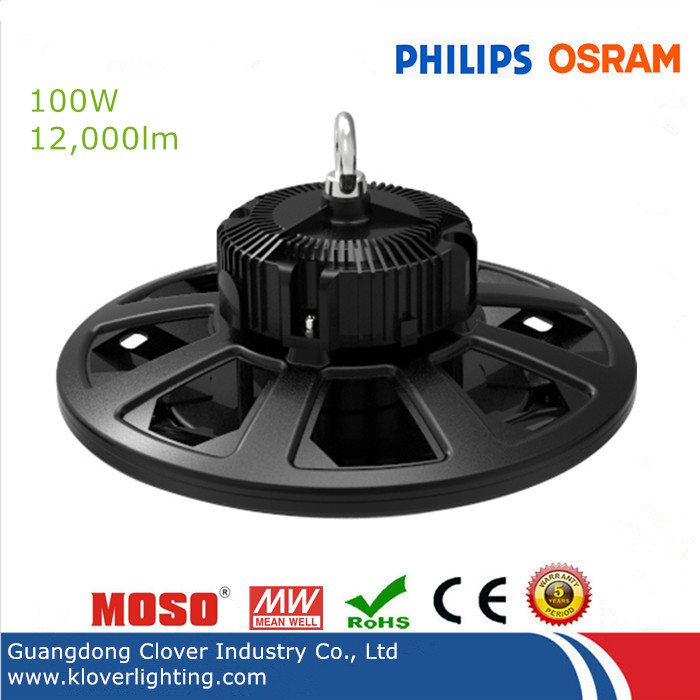

Item Name: 100W UFO LED High Bay Light
Model No.: CL-UFO001A100-1
Total Lumen: 12,000lm
Product Size: Φ290*170 mm
LED Driver: Meanwell or Moso
LED chips: 133pcs SMD Philips or Osram 3030
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95
THD: <15%
Color Temperature: 2700-6500K optional
Color Rending Index: Ra>80
IP rating: IP65 can be installed outdoor
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
More top sales UFO LED high bay light for selection, please click below photo for more information.
 |
 |
 |
 |
 |
 |
Item Name: 100W UFO LED high bay lights
Item Number: CL-UFO001A100-1
Features for 001 series 100W UFO LED High Bay Lights
1. Punched/stamped aluminum alloy for excellent heat dissipation, to extend LED chips lifespan.
2. Ultra thin design, light weight
3. IP65 rated, can be used indoor and outdoor with lightning protection.
4. 60, 90, 120 degree different beam angle available
5. Adjustable bracket available for different mounting purpose
6. Meanwell or Moso LED driver, Philips Lumileds or Osram 3030 chips, extra long lifespan.
7. 5 years warranty.

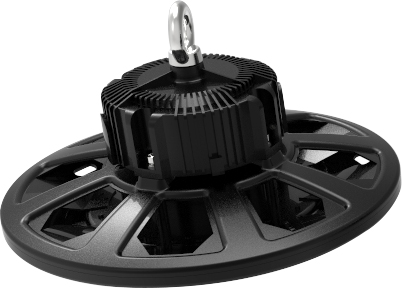

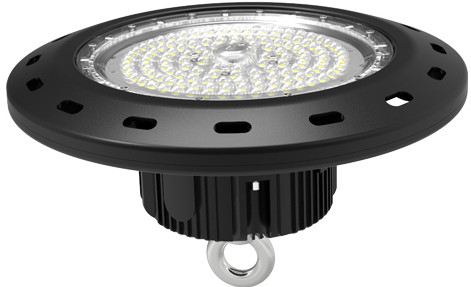

Product breakdown for 001 series 100W UFO LED high bay lights

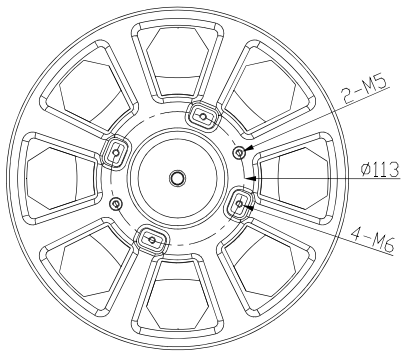

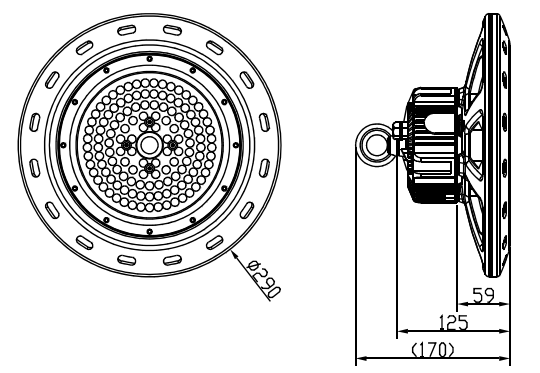

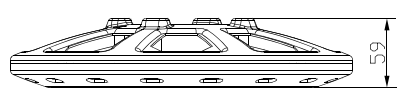

Product size for 001 series 100W UFO LED High Bay Lights
Optical features for 001 series 100W UFO LED High Bay Lights

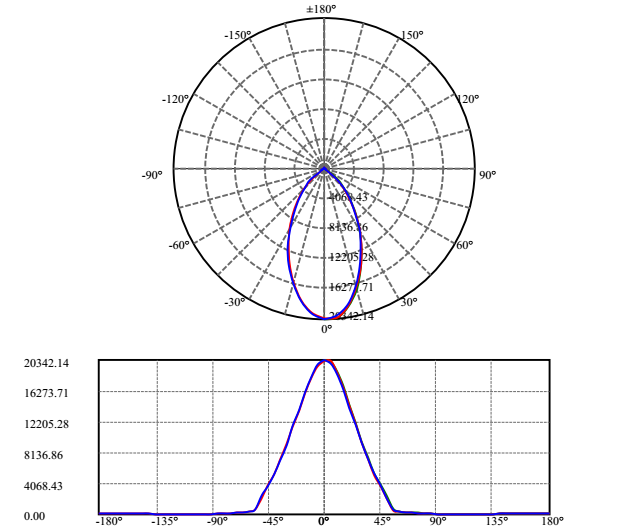

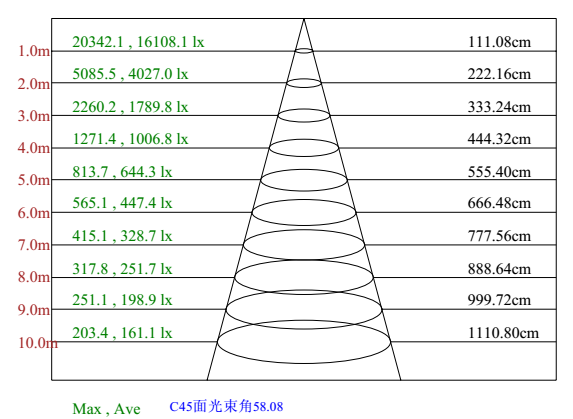

This is light distribution for 150W UFO LED high bay light in 60 degree beam angle.
IES file and free Dialux simulation available for your lighting projects.
Different installtion way for 001 series 100W UFO LED High Bay Lights
Other watt for 001 series UFO LED high bay lights, 100W, 150W, 200W available.
| Item Name | 100W, 150W, 200W UFO LED High Bay Light | ||
| Model No. | CL-UFO001A100-1 | CL-UFO001B150-1 | CL-UFO001C200-1 |
| Power | 100W | 150W | 200W |
| Total Lumen | 12,000lm | 18,000lm | 24,000lm |
| Product size(mm) | Φ290*170 | Φ340*180 | Φ400*194 |
| Input voltage | AC85-265V 50/60HZ | ||
| Power Factor | > 0.95 | ||
| THD | <15% | ||
| Lightning protection | 6KV or 10KV optional | ||
| CCT | 3000-6500K | ||
| CRI | >75 | ||
| Luminare efficiency | >120lm/w; 150lm/w optional | ||
| IP rating | IP65 | ||
| LED driver | Meanwell/MOSO | ||
| LED chips | Philips Lumileds Luxeon/Osram 3030 | ||
| LED Qty | 133pcs | 210pcs | 280pcs |
| Warranty | 5 Years | ||
