Description

combine housing, battery, solar panel and controller, LED chips, automatically working

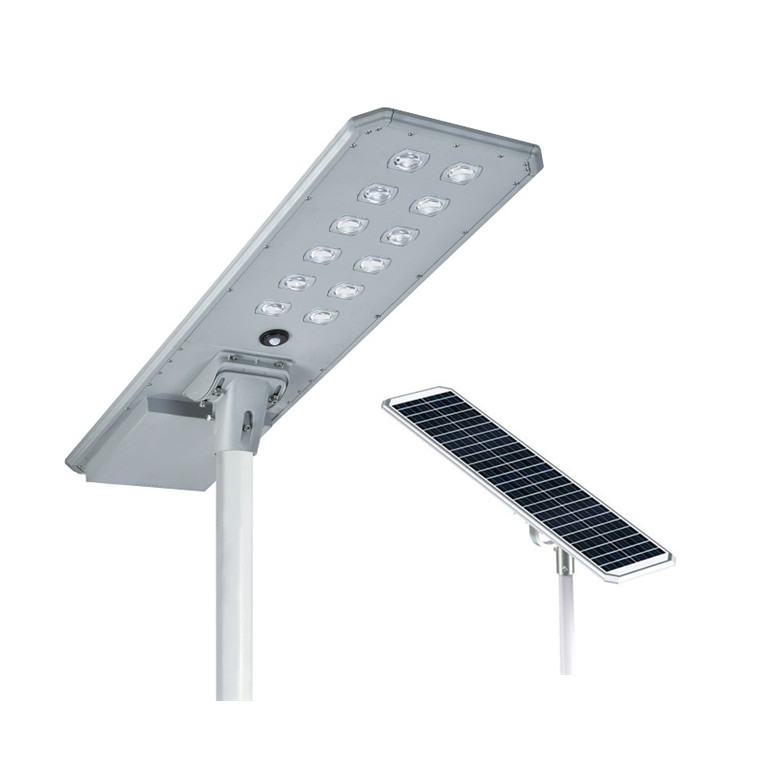

Quick specification for 50W Solar Powered LED Street Light with Auto Intensity Control

Item No.: CL-SSL0016-50W

LED chips: 120pcs Lumileds 2835/3030

Solar panel: 80W 18V Mono-crystalline

Battery: A1 class LiFePo4 12.8V 36A

Luminaire efficiency: 170-180lm/w, 180-190lm/w optional

Product size: 1352*387*68

Installation height: 6-7m

Lamp pole distance/pacing: 15-20m

Material: Aluminum alloy

CCT: typical 6000-6500K, 5000-5500K, other CCT optional.

CRI: Ra>70

Lifespan: >50000hours

Working Temperature (℃): -25 to 40 degree

Benifit for the 50W Solar Powered LED Street Light with Auto Intensity Control

1. Combine Photovoltaic mono-crystalline solar panel, MTTP controller, LED chips and rechargeable battery, all in one design.
2. Intelligent power controller, can be set 365 days non-stop lighting in the night, aAuto Intensity Control.
3. Save electricity bill, replace 100W ACLED street light, or 250W HPS street light by 50W solar powered LED street light, Zero cost on electricity bill.
4. Easy installation. Press the “on” button, fix the spigot to the lamp pole, then this solar powered street light will be light up dusk, turn off dawn.
5. Maintenance-free, adopt top famous brand controller like SRNE or Depower, A1 class brand new LiFePo4 battery, at least 5 years no need to replace battery or controller.
6. High lumen output, LED light source reaches 220-240lm/w, finished light output at 190-200lm/w

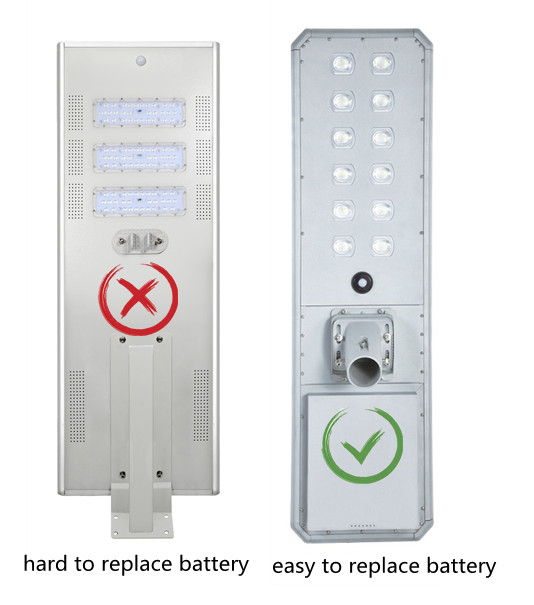

7. Easy battery and controller replacement, the battery box can be opened easily, if there is a must to replace battery or controller after many year lighting.

battery box can be opened easily to replace battery and controller

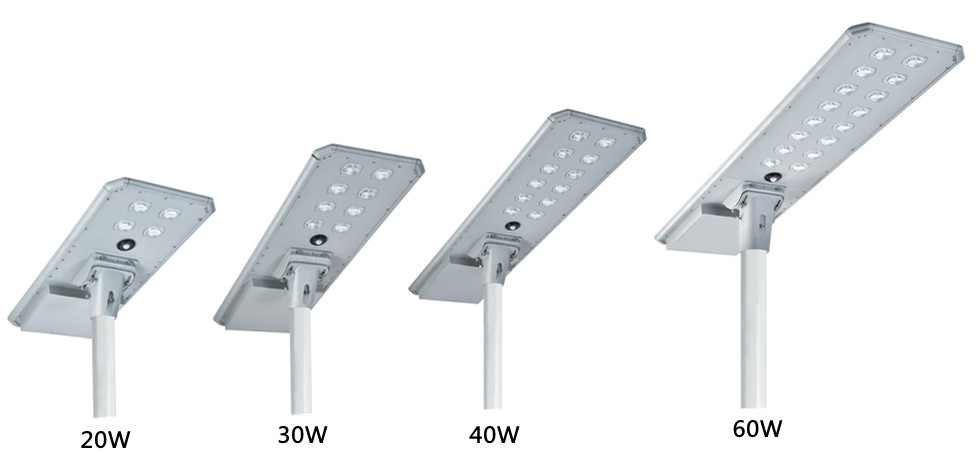

Other different power available

20W/30W/40W/50W/60W optional for this solar powered LED street light.

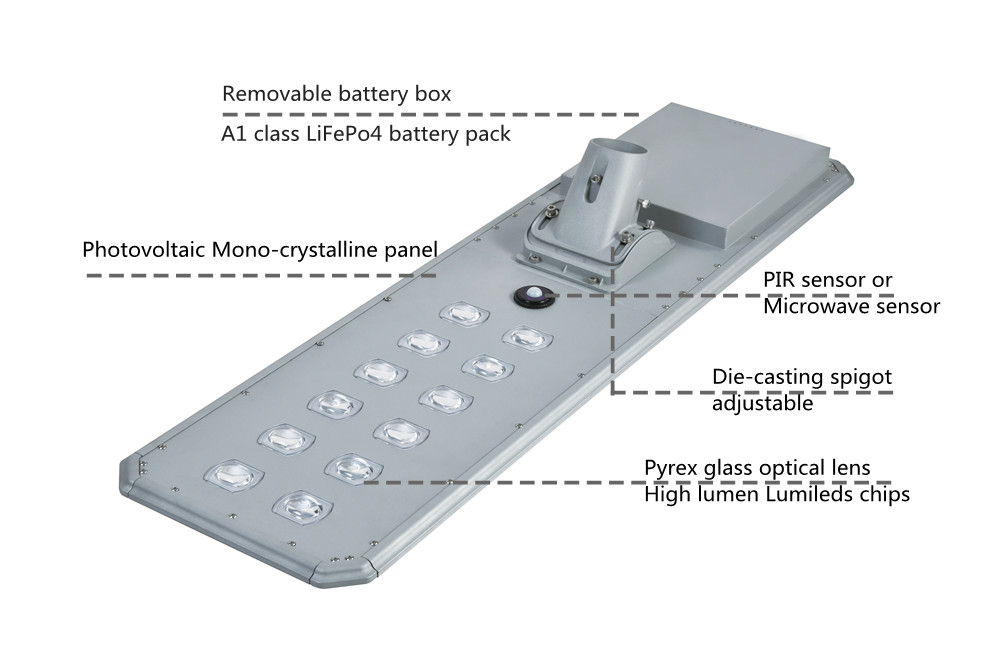

Product break down for 50W Solar Powered LED Street Light with Auto Intensity Control

Apply brand new (not car recycled) A1 class LiFePo4 battery.

• >2000 cycles (100%DOD)
• >4000 cycles(80%DOD)
• >8000 cycles(50%DOD

With extremely long lifespan, more safety, larger capacity, longer lighting time, lifepsan over 10 years.

never recycled LiFePo4 battery for our solar powered LED street light

SRNE MTTP controller, charging efficiency 40% higher than traditional PWM type controller.

50W motion sensor solar powered street light

High lumen Philips Lumileds 2835 chips,225lm/w @5.5V 30mA, 0.16W

high lumen lumileds chip for solar powered led street light

Water proof IP65 design for outdoor lighting purpose

outdoor IP65 solar powered led street light

Working mode for 50W Solar Powered LED Street Light with Auto Intensity Control

PIR sensor or Microwave sensor type, 30%-50% brightness when normally lighting, automatically turn to 100% brightness after detect moving objects.

Dimming type, gradually and automatically reduce power as time ticking.

automatically turn on in the night, turn off in the early morning, full brightness when detect people, 50% brightness when no people

Application for 50W Solar Powered LED Street Light with Auto Intensity Control

smart controller can timely monitor battery status, turn to energy saving mode automatically, make it 365 days lighting up, intelligent setting.
