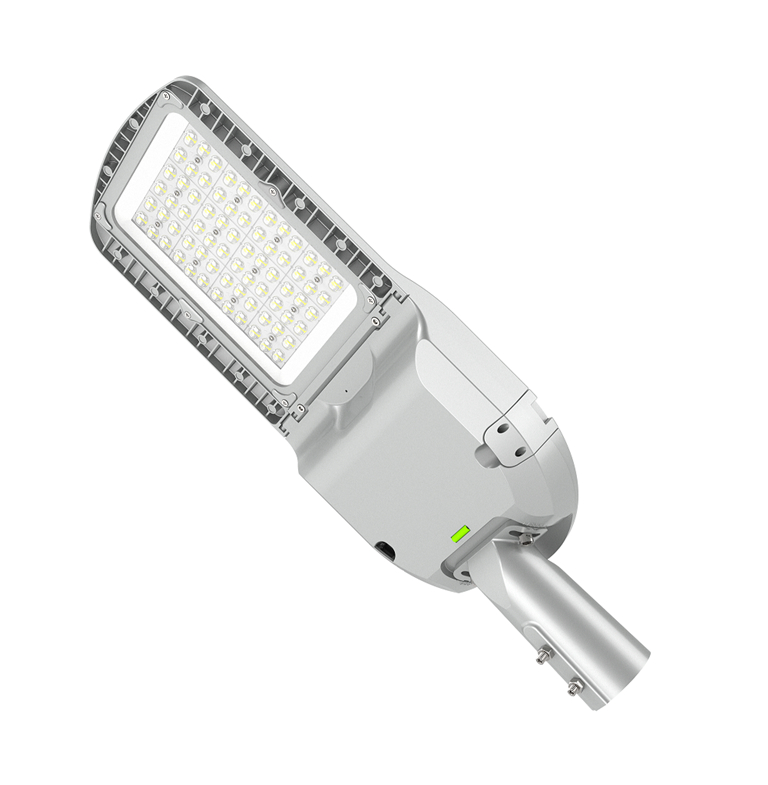

Item Name: 150W LED street lights
Item No.: CL-SL1910-150W-01
Luminaire efficiency: >150lm/w;
LED Driver: Meanwell ELG/HLG, MOSO, SOSEN
LED Chips: Philips Lumileds SMD3030
Beam Angle: 60°/90°/120°/T2M/T3M/T4M
Input voltage: AC100-305V 50/60HZ
PF: >0.95 THD: <15% IP rating: IP66 Ra:>70
Color Temperature: 2700-6500K optional, Ra>70
Lifespan: >50,000 Hours
Product size: 680*260*109mm
Warranty: 5 Years
✓ Heavy die-casting ADC No.12 aluminum alloy, excellent heat dissipation for enlong LED chips and driver lifespan.
✓ Precise optical design and anti-glare lens, 60°/90°/120°/T2M/T3M/T4M degrees optional.
✓ Super brightness and long lifespan, adopt Lumileds 3030 or Bridgelux 3030 chips, luminaire efficiency >150lm/w for this street light, Meanwell, Inventronics, Moso, Philips, Sosen driver available, input 100-305V suitable for any countries.
✓ 10KV and 20KV surge protection optional, suitable for countries with lots of lightning/thundering.
✓ Tempered glass, will not broken when drop on concrete floor.
✓ Elegent design Smooth on the top of lamp body, dust and sands will fall off when wind blowing or snowing, especially designed for middle east countries.
✓ Driver box buckle design, can be opened without any tools, just by hands.
✓ More safety, with auto power off switch, when LED street light driver box opened, the light will power off automatically.
✓ Spigot adjustable 0-180 degree, suitable for any kind of lamp arm in different upward angle.
✓ Equipped with bubble spirit level for more accurate install the lamp to horizontal direction.

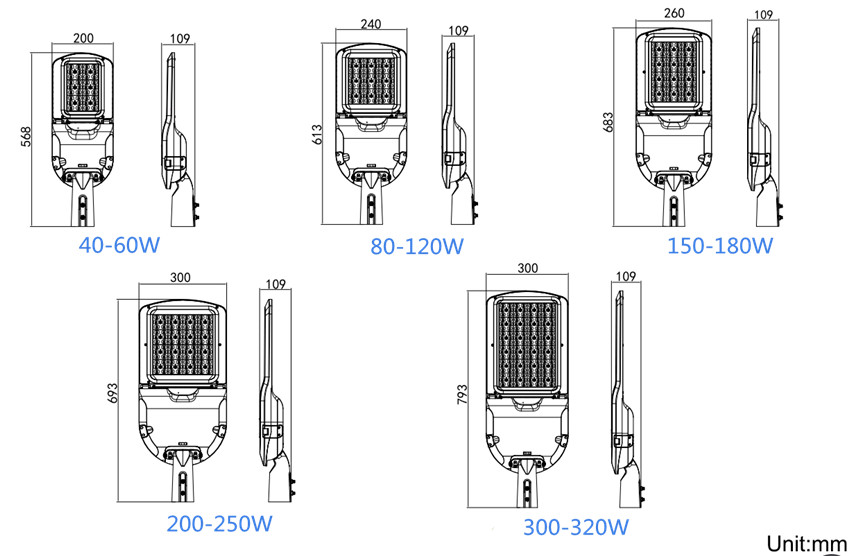

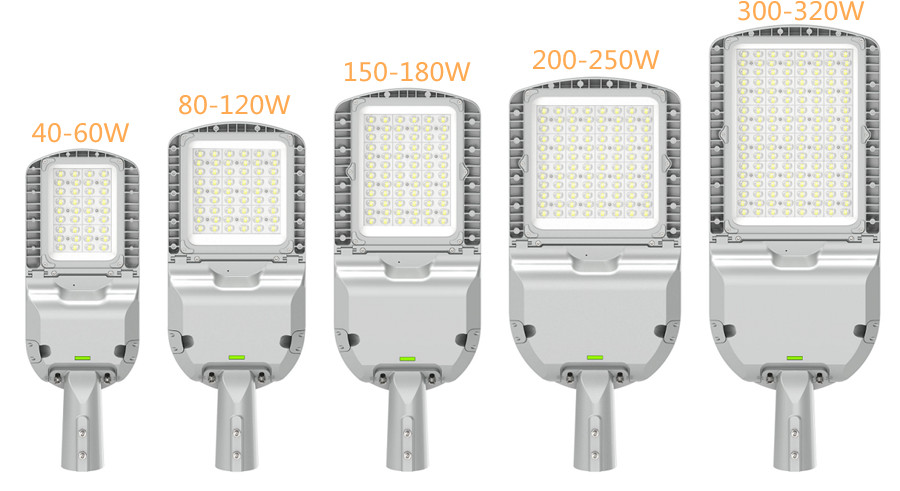

| Item Number | Rated Power | LED(Philips 3030) | LED driver | Product size(mm) | Warranty |
| CL-SL1910-50W | 50-60W | 96/144pcs | Meanwell/MOSO/Philips | 570*200*109 | 5 years |
| CL-SL1910-100W | 80-120W | 144/216pcs | Meanwell/MOSO/Philips | 615*240*109 | 5 years |
| CL-SL1910-150W | 150-180W | 192/288pcs | Meanwell/MOSO/Philips | 680*260*109 | 5 years |
| CL-SL1910-200W | 200-250W | 256/384pcs | Meanwell/MOSO/Philips | 700*300*109 | 5 years |
| CL-SL1910-300W | 300-320W | 384/576pcs | Meanwell/MOSO/Philips | 790*300*110 | 5 years |

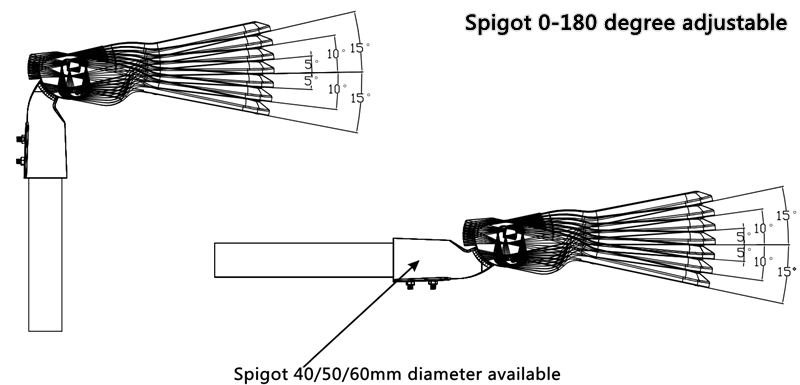

The spigot has diameter 40/50/60mm selection for different size lamp pole, and can be adjusted 0-180 degree.

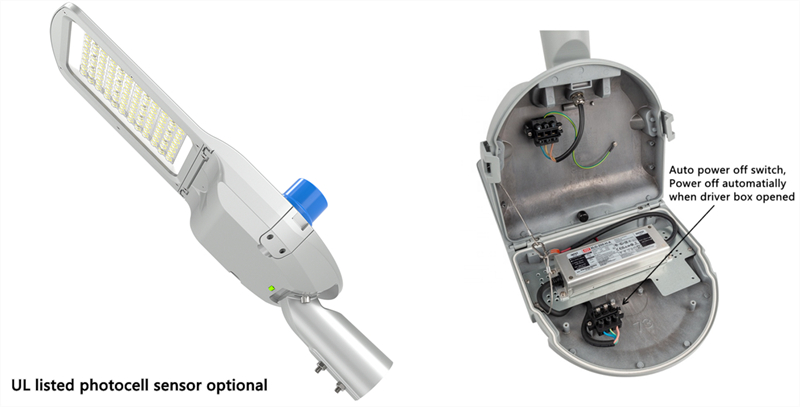

Can install a UL listed photocell sensor on the street light, dusk to dawn turn on and off automatically, can be equipped an extra auto power off switch, so when there is necessary maintenence work, open the driver box, power will off automatically.

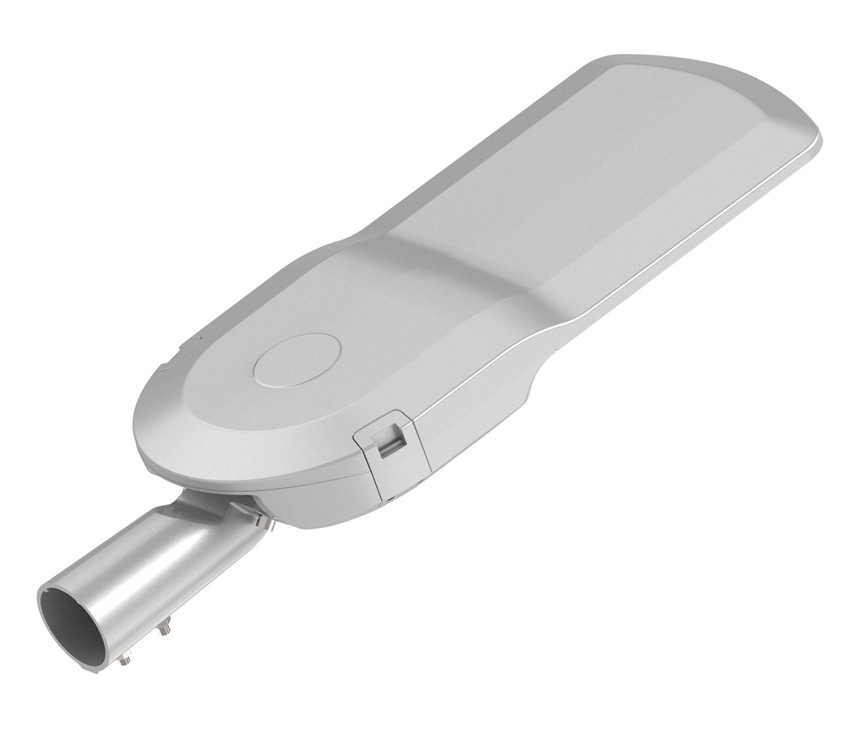

Back side view

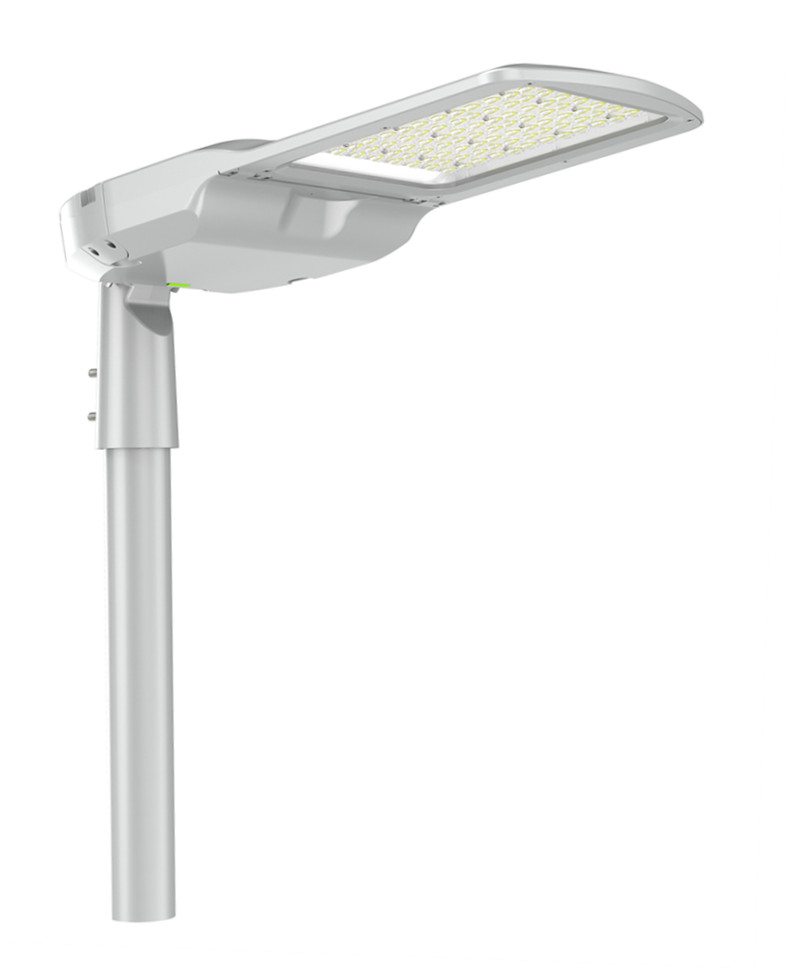

Side view

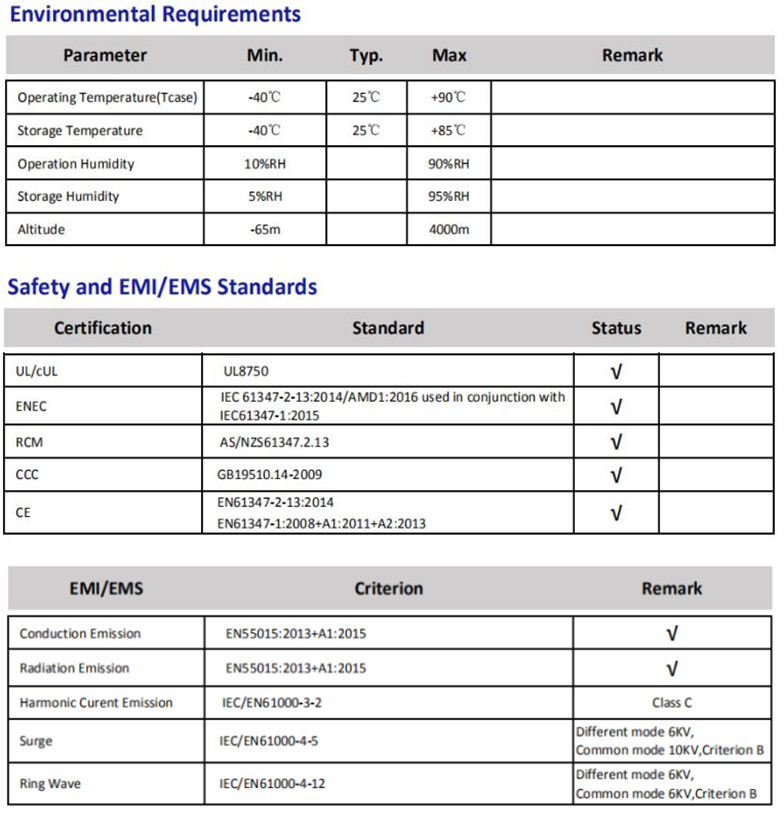

Comply but not limited to below safety standard: IEC-60598 parts 1,2,3 IEC-61374-1, IEC-61000, IEC-61547, CISPR 15, IEC-62031, IEC-62471(for LED chips), IEC-62384, IEC-60927, IEC-61048, IEC-61049

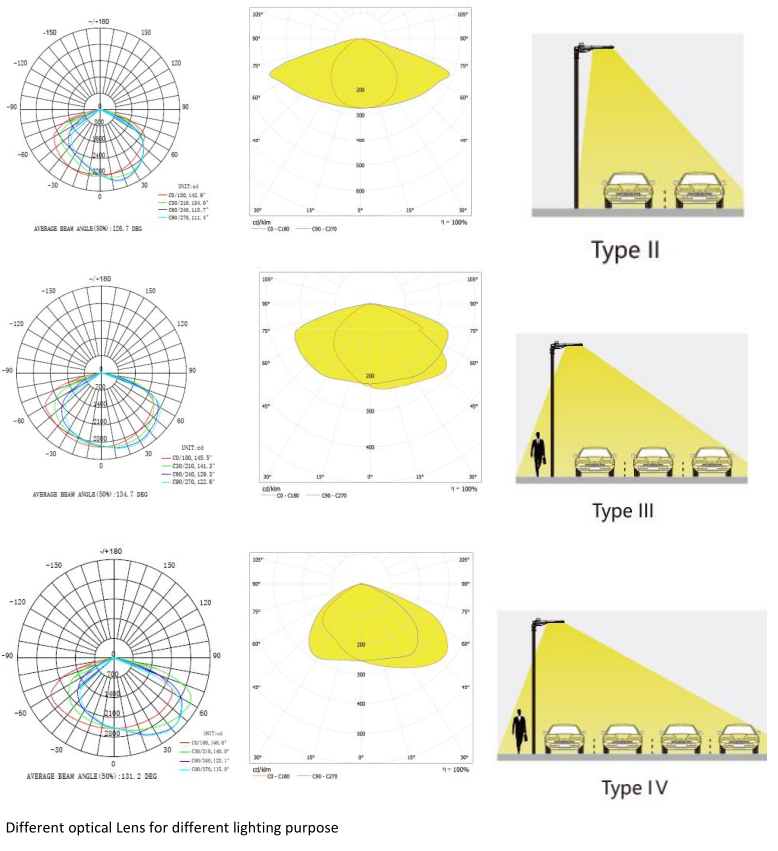

60°/90°/120°/T2M/T3M/T4M degrees optional;
T2M suitable for 50W and 100LED street light, normally 2 carways.
T3M suitable for 150W, 200W and 240W, normally 3 carways.
T4M suitable for 300W, normally 4 carways.
