Philips Chip and driver UFO high bay lighting fixture 100W 150W 200W

Home LED High Bay Lights Philips Chip and driver UFO high bay lighting fixture 100W 150W 200W

Philips Chip and driver UFO high bay lighting fixture 100W 150W 200W

Philips Chip and driver UFO high bay lighting fixture 100W 150W 200W

Model No.: CL-HB0142-100W

Total Lumen: 14,000lm

Product Size: Φ383*150mm

LED Driver: Philips Xitanium

LED chips: Philips Lumileds 3030

Input voltage: 100-305VAC 50/60HZ

Power Factor: >0.95    THD: <10%

IP rating: IP65 water proof

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>70

IP rating: IP65 can be installed outdoor

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

LED High Bay Lights, Featured Products2022-04-28k705

Description

Philips Chip and driver UFO high bay lighting fixture 100W 150W 200W

Quick specification for Philips Chip and driver UFO high bay lighting fixture 100W 150W 200W

Item No. CL-HB0142–100W UFO-HB0142-150W UFO-HB0142-200W UFO-HB0142-240W
Rated Power 100W 150W 200W 240W
Lumens 14000lm 21000lm 28000lm 33600lm
Product size(mm) Φ383*150 Φ415*150 Φ460*150 Φ460*150
Lumen Efficacy 140LM/W
LED Brand Phiilips Lumileds 3030
LED Qty 140pcs 196pcs 252pcs 252pcs
Driver brand Philips Xitanium
Electric para. AC100-305V 50/60HZ, PF>0.95, THD<10
CCT/Ra/Beam 3000~6500K, Ra>70, 90° beam
Lifespan 50,000 hrs
Material Aluminum alloy
IP rating IP65

Features for HB0142 series UFO high bay lighting fixture 100W 150W 200W

1. Heavy die-casting aluminum alloy, quick airflow, excellent heat dissipation.

2. Philips Xitanium driver and Philips Lumileds chips, top quality and competitive price.

3. Optical lens 90 degree available.

4. No UV, no flicker, no flashing, instant light up, soft light for protect eyes.

5. Lifespan over 50,000 hours and 5 years warranty.

6. Can be chain mounted, hook mounted and adjustable bracket mounted on wall or surface.

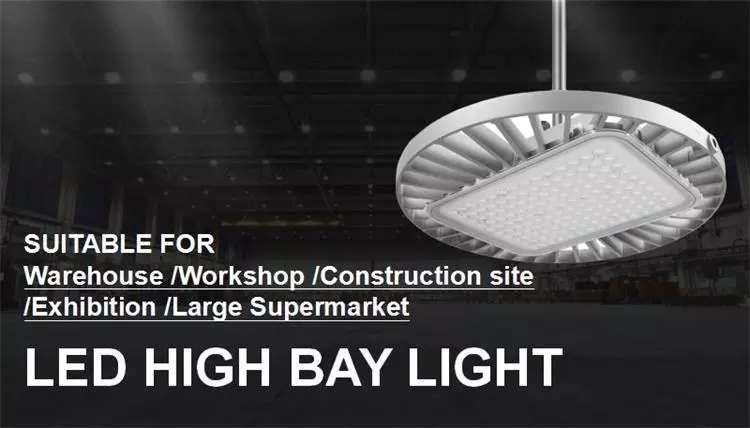

7. Largely used for indoor or outdoor large area lighting, like warehouse, factory, supermarket, shopping mall, logisitics center, garage/parking lot.,etc.

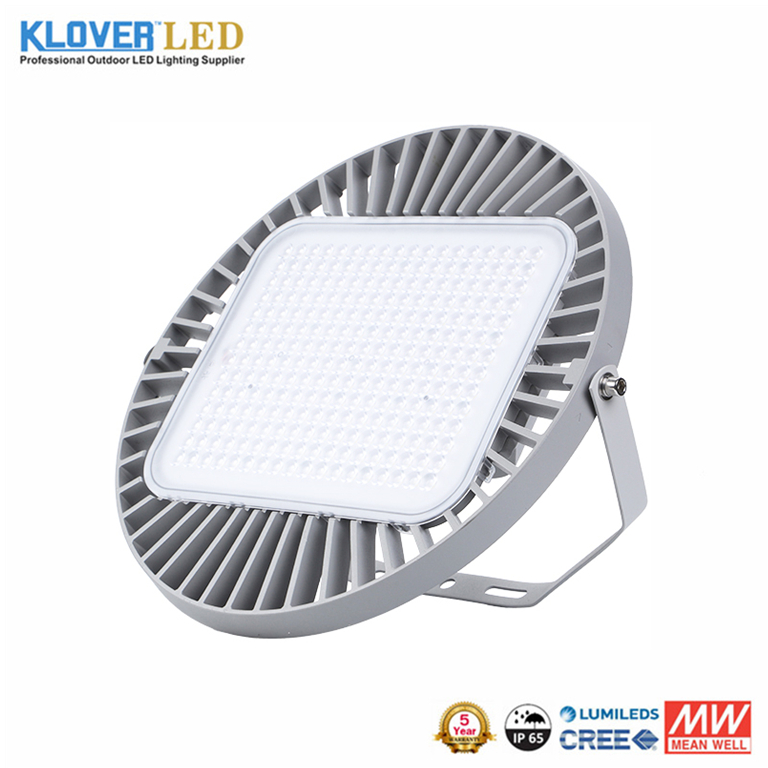

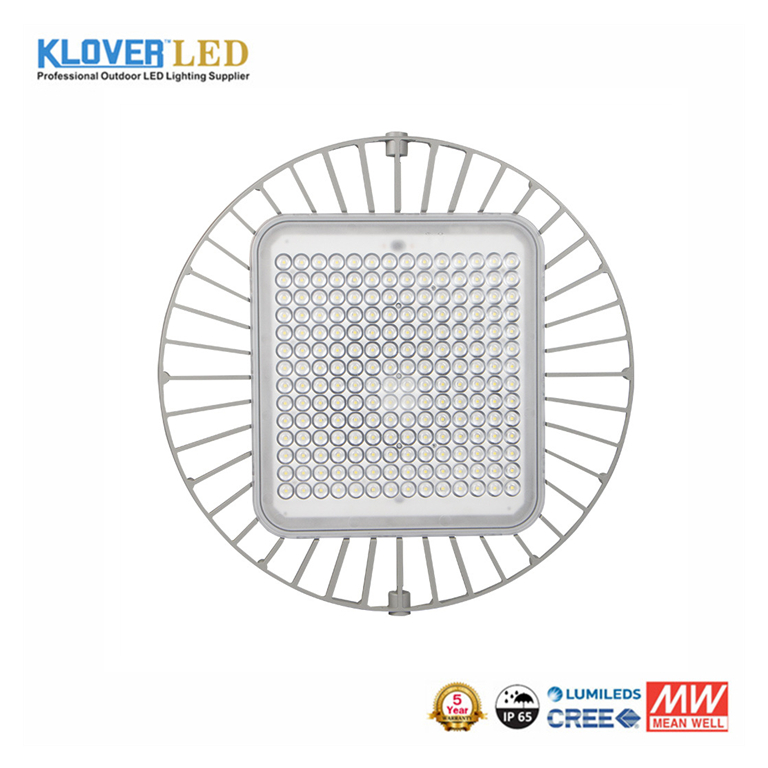

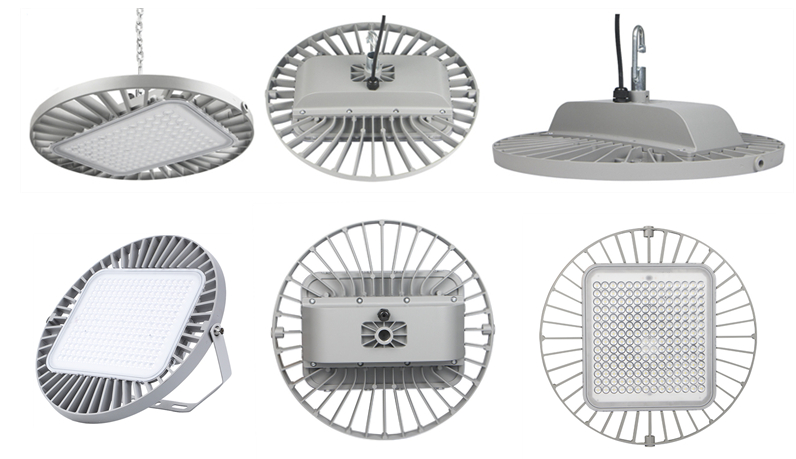

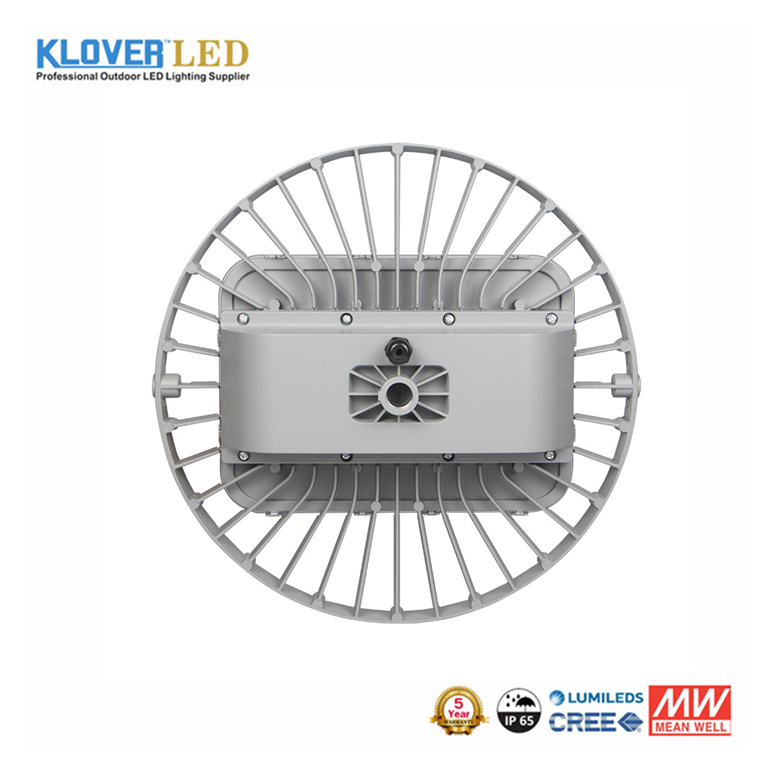

Product pictures for HB0142 series UFO high bay lighting fixture 100W 150W 200W

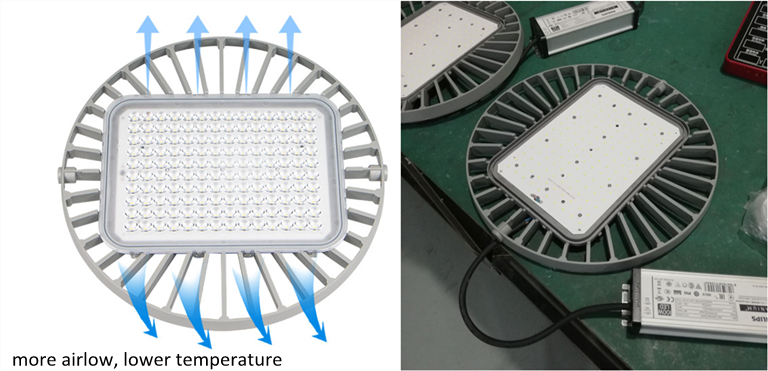

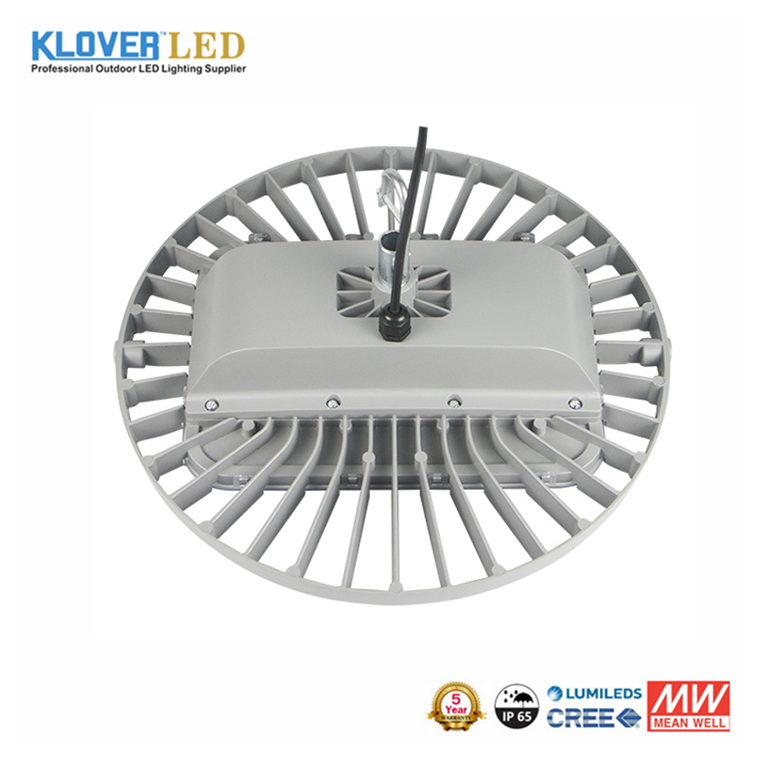

Edge of heat sink center, has lots of ribs spread out for fast heat dissipation, to reduce LED chips light decline and improve lifespan.

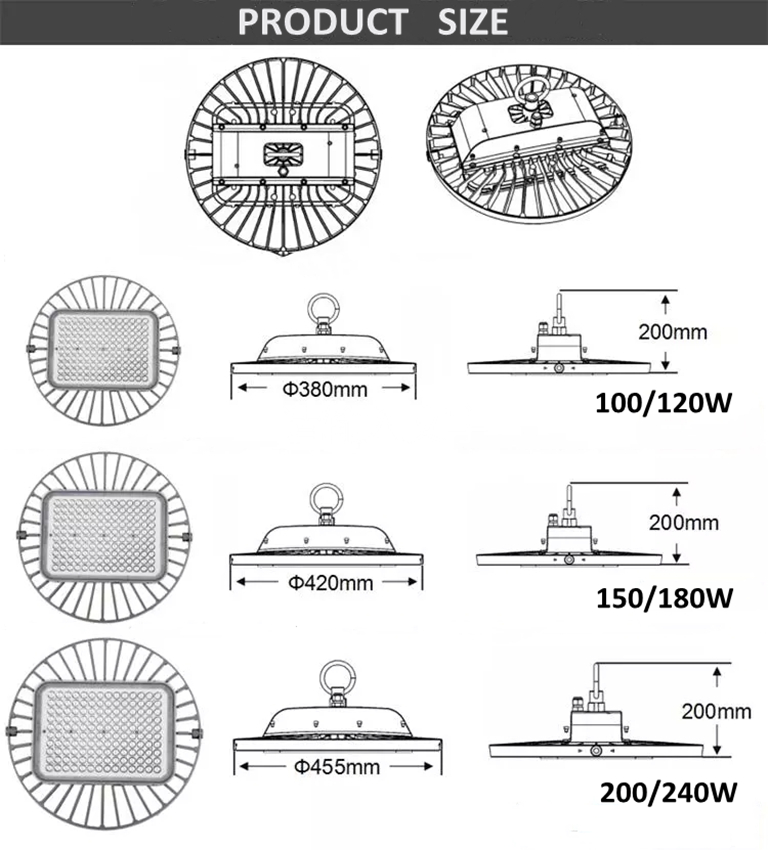

Product size for HB0142 series UFO high bay lighting fixture 100W 150W 200W

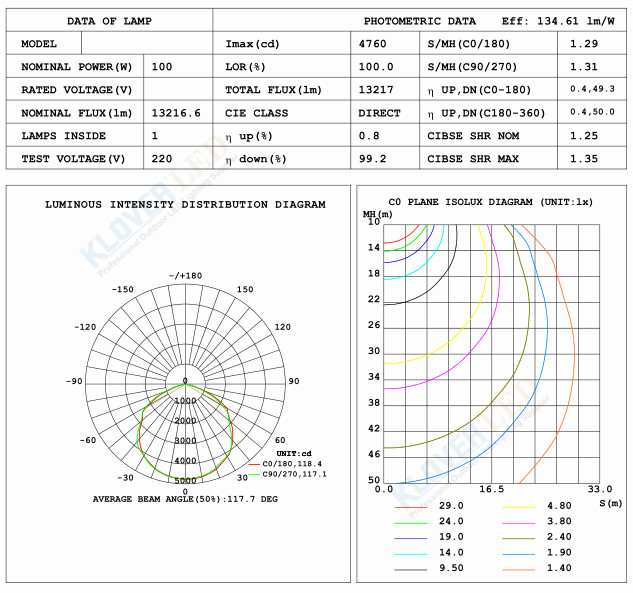

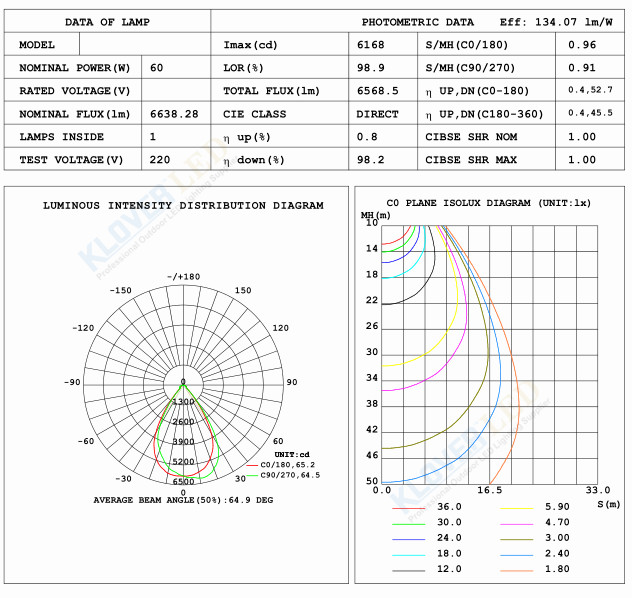

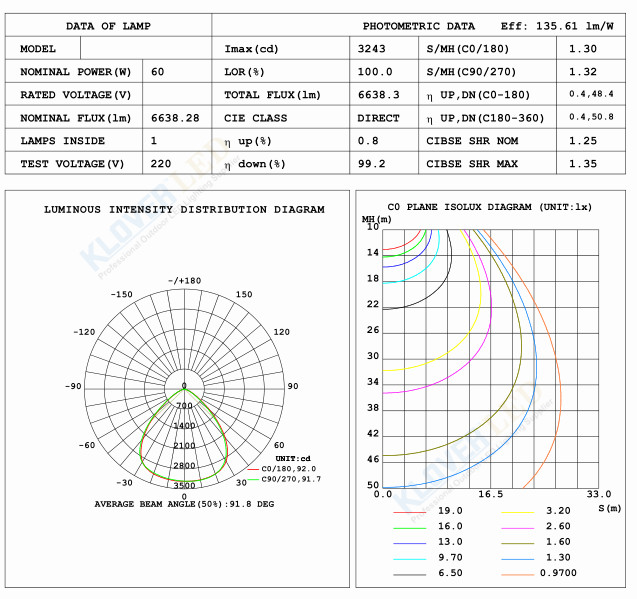

IES test report for HB0142 series UFO high bay lighting fixture 100W 150W 200W

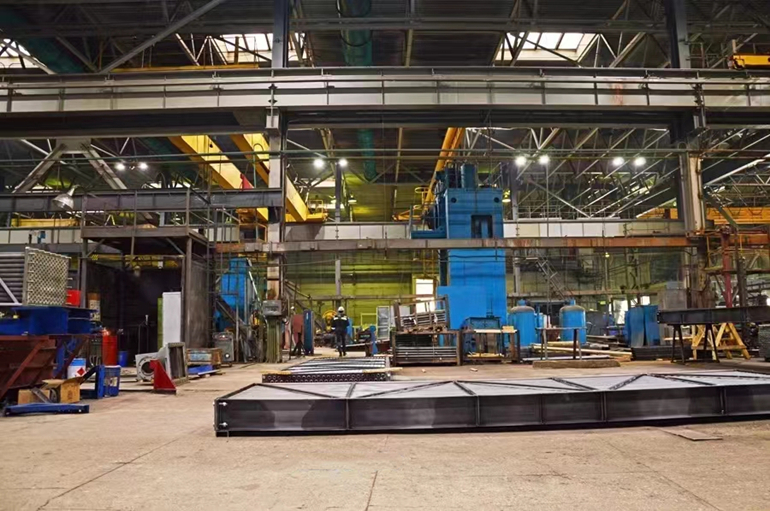

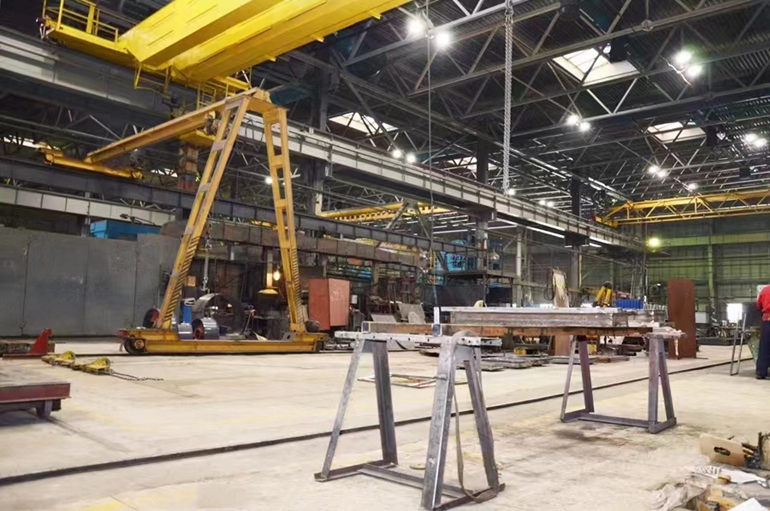

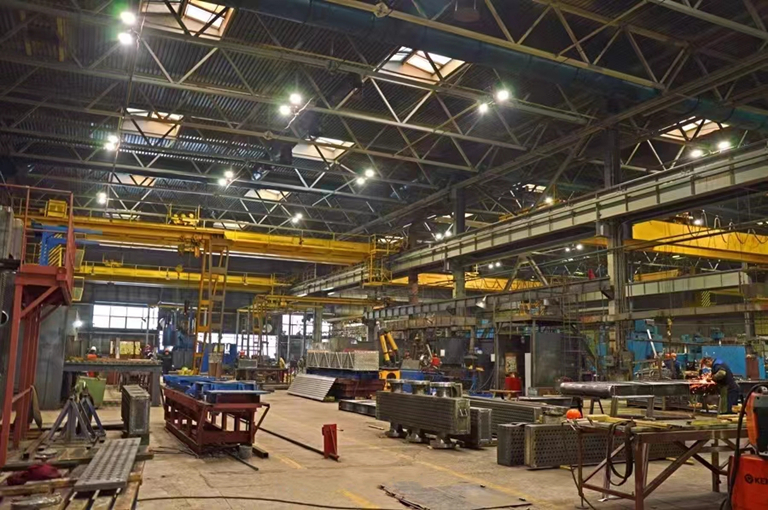

Application for HB0142 series UFO high bay lighting fixture 100W 150W 200W

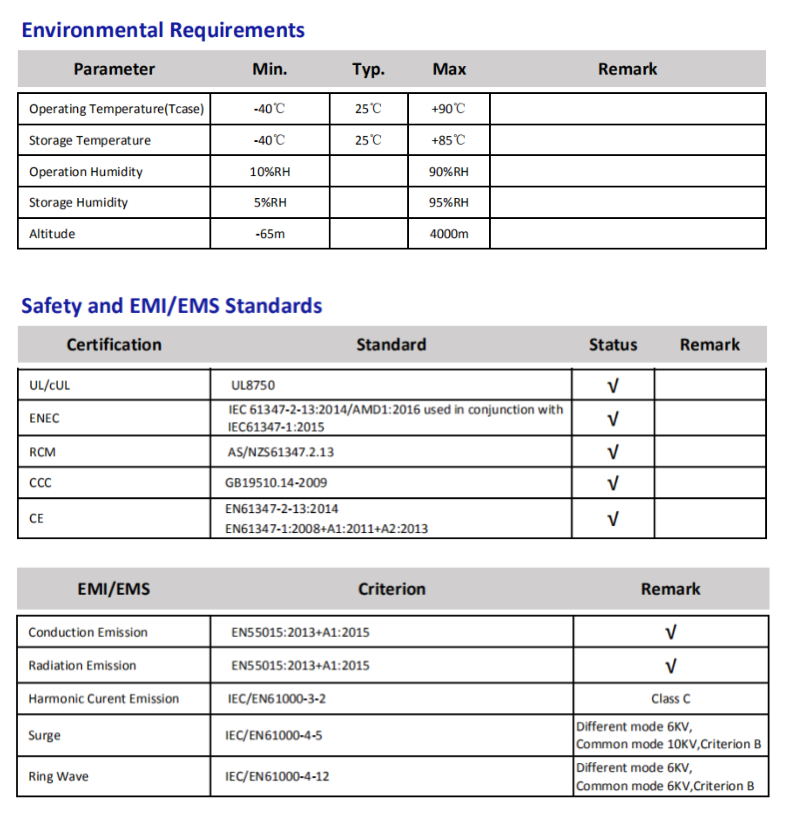

Safety reports for HB0142 series UFO high bay lighting fixture 100W 150W 200W with Philips chip and driver

Certifications for HB0142 series UFO high bay lighting fixture 100W 150W 200W with Philips chip and driver
