New Design IP65 240W UFO LED high Bay Lights with 5 Years Warranty

Home LED High Bay Lights New Design IP65 240W UFO LED high Bay Lights with 5 Years Warranty

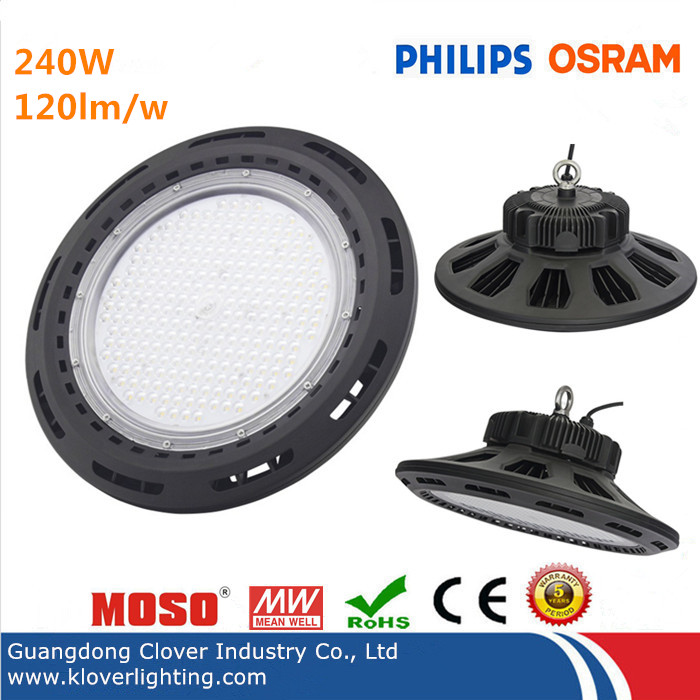

[caption id="attachment_697" align="alignnone" width="700"]240W UFO LED high bay lights 240W UFO LED high bay lights[/caption][caption id="attachment_698" align="alignnone" width="700"]new design UFO LED high bay lights new design UFO LED high bay lights[/caption]

New Design IP65 240W UFO LED high Bay Lights with 5 Years Warranty

Item Name: New design IP65 240W UFO LED High Bay Light

Model No.: CL-UFO004E240-1

Total Lumen: 28,800lm, 120lm/w

Product Size: Ф400*203.5mm

LED Driver: Meanwell or Moso

LED chips: 266pcs Pilips or Osram SMD3030

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95    THD: <15%

IP rating: IP65 water proof

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

IP rating: IP65 can be installed outdoor

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

LED High Bay Lights, UFO LED High Bay Lights2017-06-14k705

Description

New Design IP65 250W UFO LED High Bay Lights with 5 Year warranty

High lumen 200W UFO LED high bay lights

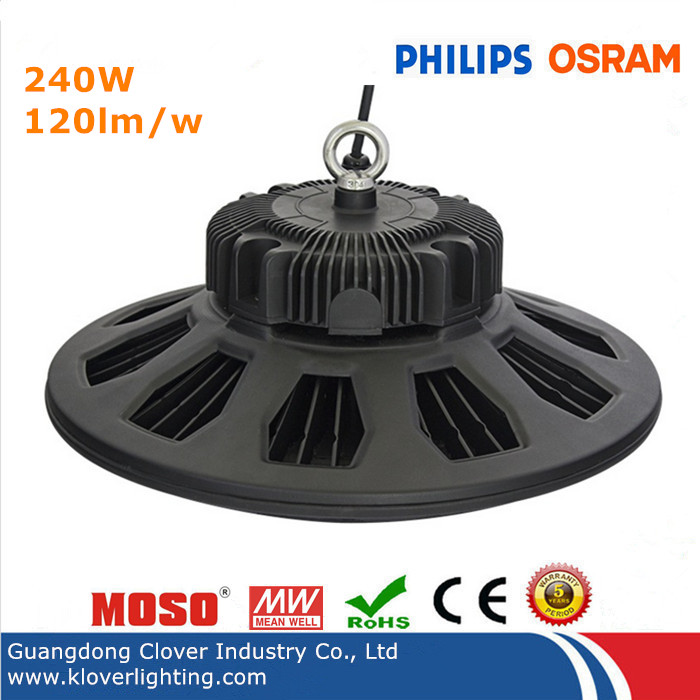

New design IP65 High lumen 240W UFO LED high bay lights

High lumen 200W UFO LED high bay lights

New design IP65 High lumen 250W UFO LED high bay lights

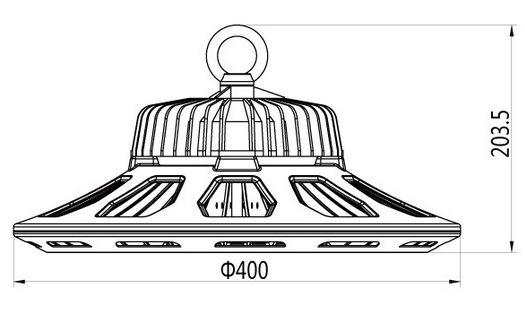

Product size for 240W UFO LED high bay lights

product size for 240W UFO LED high bay lights

new design 240W UFO LED high bay light size

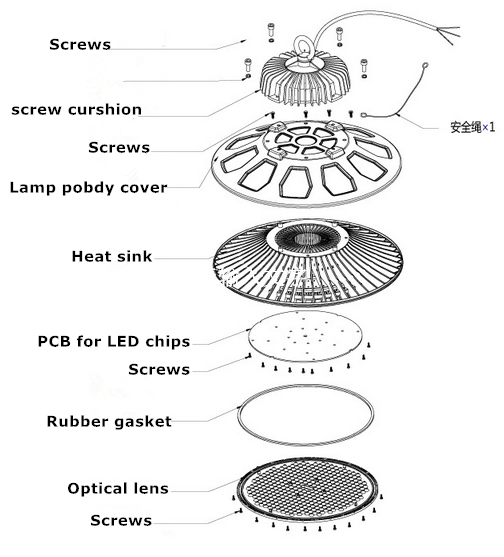

Product break down photos for 240W UFO LED high bay lights

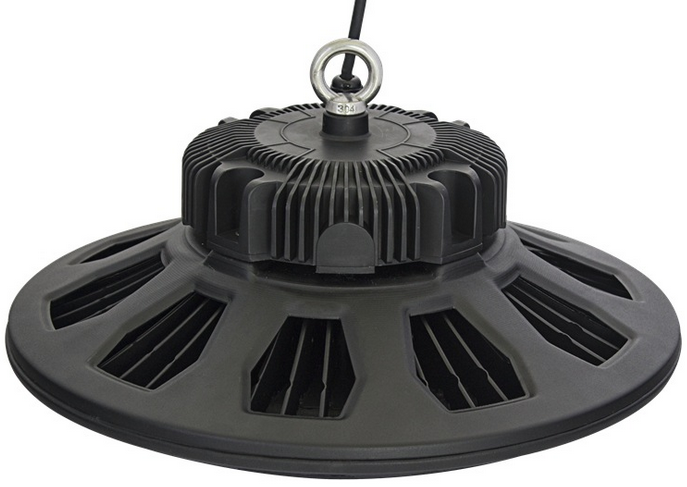

new designed 200W UFO LED high bay lights

new designed 200W UFO LED high bay lights



Features for new design IP65 200W UFO LED high bay lights



✓  Stamped aluminum alloy, with thermal conductivity over 220W/m.K, the best material now in LED lighting industry.

✓ Long lifespan, over 50,000 hours with small light decline, 1-2% per year, lighting time over 10 years without mal-function, free of maintenence, no replacement.,etc.

✓ Soft light, anti-glare, no light pollution, UGR<19, with even light distribution;

✓  60°, 90°, 120° Beam angle available.

✓  Top quality Meanwell HBG or MOSO LED driver, provide stable constant current to LED chips, with over heat protection, over voltage protection, short ciruit protection.,etc.

✓  Top grade LED chips, Osram 3030, Nichia 3030, Philips Lumileds Luxeon 2D 3030 chips optional, LM-80 rated.

✓  Sperated LED driver from heat sink body, lower temperature on LED driver to enlong its lifespan.

✓  Water proof IP65 design, can be used for outdoor lighting

✓  Comply with EU, US, AU quality standards, selling allover the world

✓  5 years warranty. Can be lighting for over 10 years



Specifiction for New design 240W UFO LED high bay lights



Item Name New design 240W UFO LED high bay lights
Model No. CL-UFO004E240-1
Power 240W
Total Lumen 28,800lm
Product Size(mm) Ф400*203.5
LED Qty 266pcs
LED Driver Meanwell HBG/MOSO
LED Chips Philips Lumileds Luxeon 2D 3030/Osram 3030
Input Voltage AC85-265V  50/60HZ
Power Factor > 0.95
THD <15%
Lightning Protection 6KV or 10KV optional
CCT 3000-6500K
CRI >75
Luminare Efficiency >110lm/w; 150lm/w optional
IP Rating IP65
Warranty 5 Years

Applications for New design 240W UFO LED high bay lights



✓  To directly replace 600-800W metal halide or HPS high bay lights

✓  Large indoor area lighting, like warehouse, industrial plant, logistic centers, under-ground parking lot,

gym, library, school, lectural hall, gas station, toll station, supermarket lighting.,etc.

✓  Outdoor LED lighting

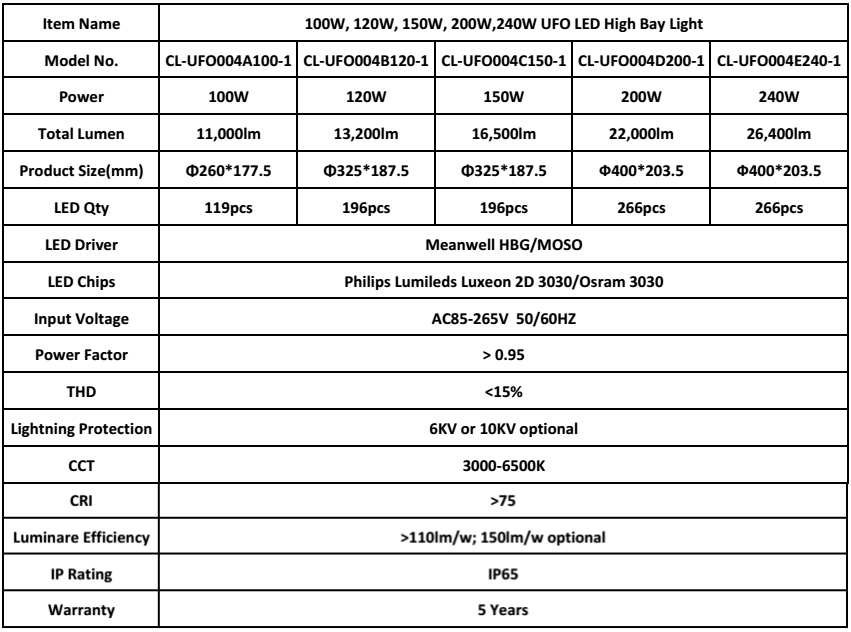

This series also have 100W, 120W, 150W, 200W optional

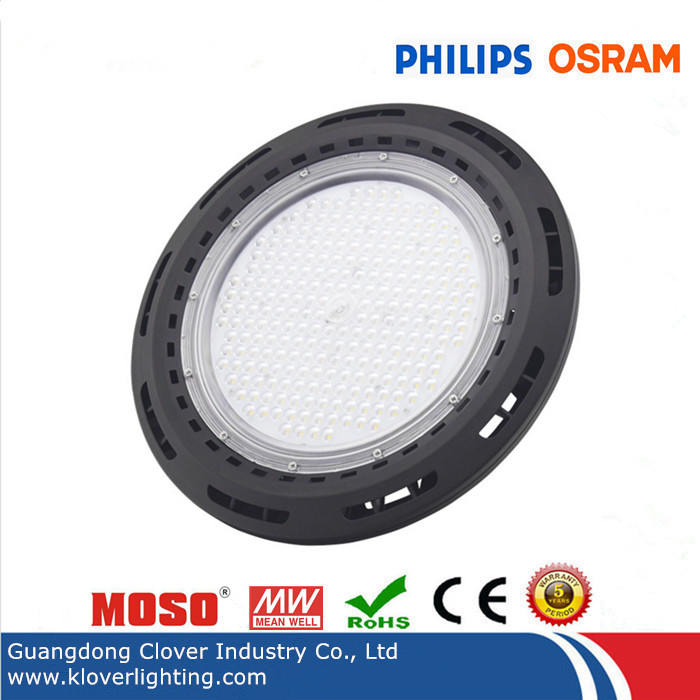

100W 120W 150W 200W 240W UFO LED HIGH BAY LIGHTS

100W 120W 150W 200W 240W UFO LED HIGH BAY LIGHTS
