IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

Home LED High Bay Lights IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

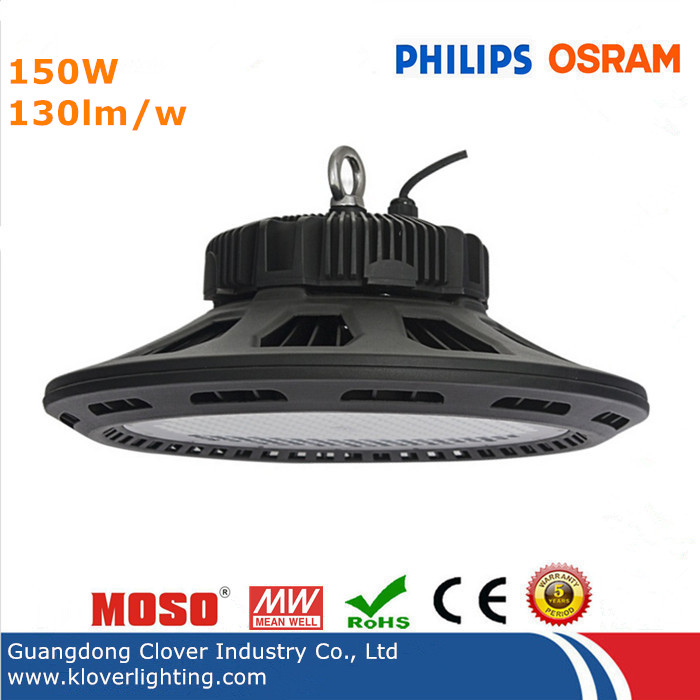

[caption id="attachment_678" align="alignnone" width="700"]New design Osram 3030 150W UFO LED high bay light New design Osram 3030 150W UFO LED high bay light[/caption][caption id="attachment_679" align="alignnone" width="700"]Osram 3030 150W UFO LED high bay lights Osram 3030 150W UFO LED high bay lights[/caption]

IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

Item Name: New Design 150W UFO LED High Bay Light

Model No.: CL-UFO004C150-1

Total Lumen: 18,000lm

Product Size: Φ325*187.5mm

LED Driver: Meanwell or Moso

LED chips: 196pcs SMD Philips or Osram 3030

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95    THD: <15%

IP rating: IP65 water proof

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

IP rating: IP65 can be installed outdoor

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

LED High Bay Lights, UFO LED High Bay Lights2017-06-14k705

Description

Product name: IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

Item number: CL-UFO004C150-1

Product pictures:

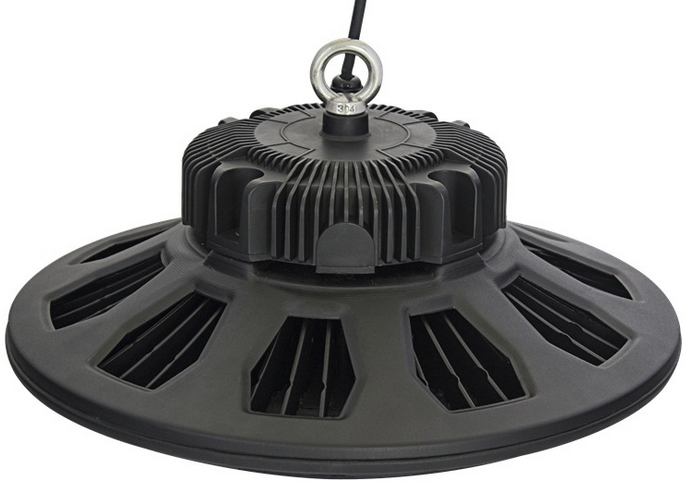

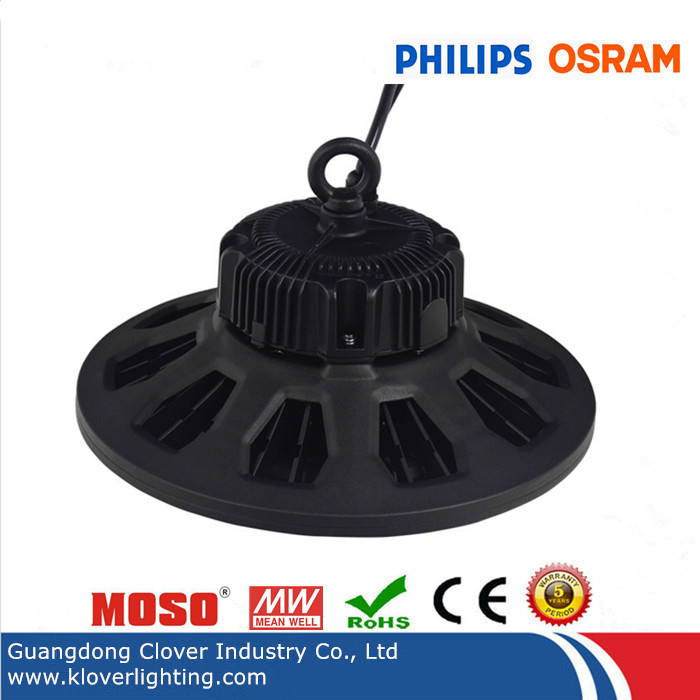

150W UFO LED high bay lights

150W UFO LED high bay lights

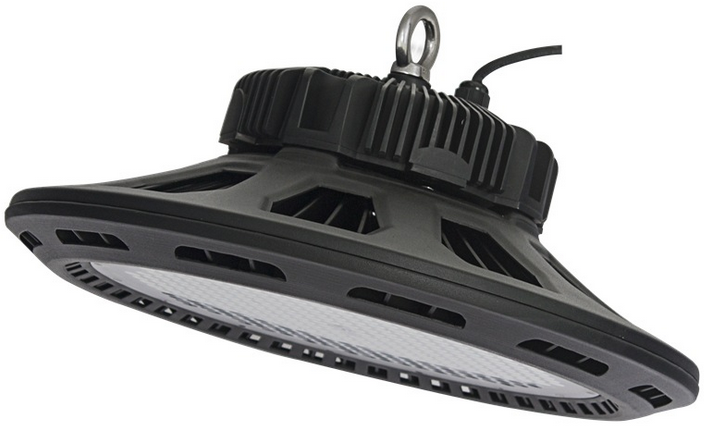

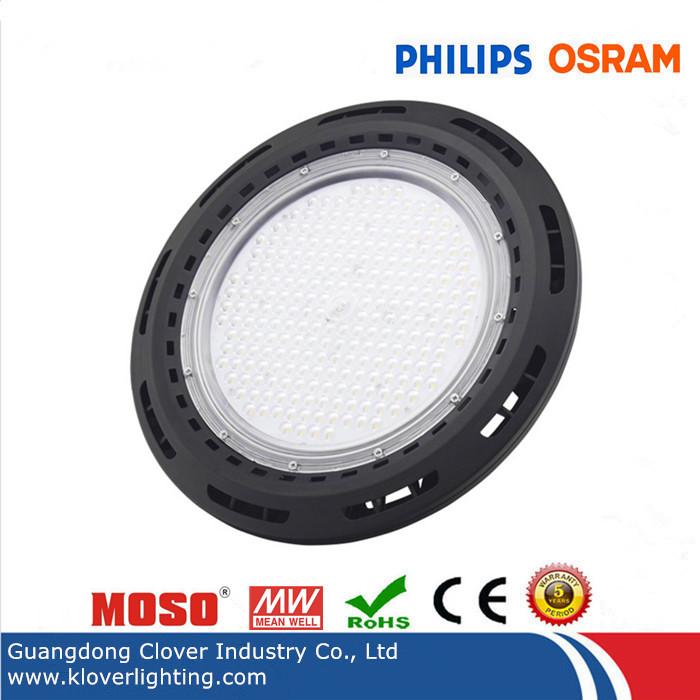

new design 150W UFO LED high bay lights

new design 150W UFO LED high bay lights



Features for IP65 Osram SMD3030 150W UFO LED high bay lights

✓ Excellent heat dissipation, for we are using stamped 1060 high purity aluminum alloy, heat conductivity reach 220W/m.K, the temperature rise is within 30°.

✓ Equipped with extra security steel rope, more safety.

✓  Water proof IP65 design, can be used in indoor our outdoor facilities.

✓  Anti-glare, soft light, no light pollution, professional designed optical lens with UGR<19.

✓  Top quality LED driver, Meanwell HBG or MOSO, with CE, CB, SAA, TUV, FCC, C-Tick.,etc.

✓  Top quality LED chips, Osram 3030 or Philips Lumileds Luxeon 3030, or Nichia 3030 LED chips, LM-80 listed.

✓  Long lifespan up to 50,000 hours, low light decline

✓  Comply with CE, RoHs, TUV, CB, SAA, TUV, UL.,etc.

✓  5 Years warranty, can be used for over 8 years without replacement nor maintenance, 150W can be used to replace 400-500W metal halide or HPS high bay light with more energy saved.

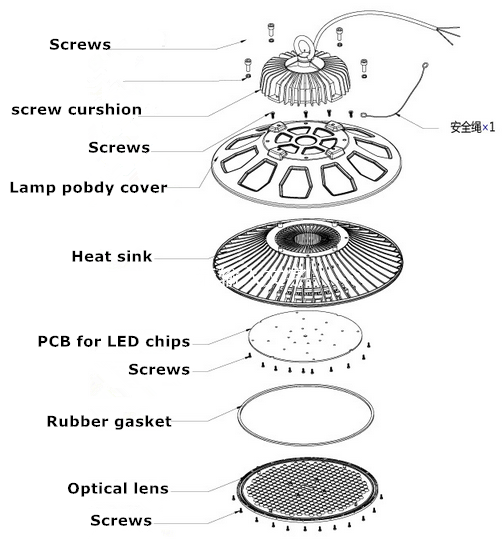

Product structure for new design 150W UFO LED high bay light



product breakdown for new design 150W UFO LED high bay lights

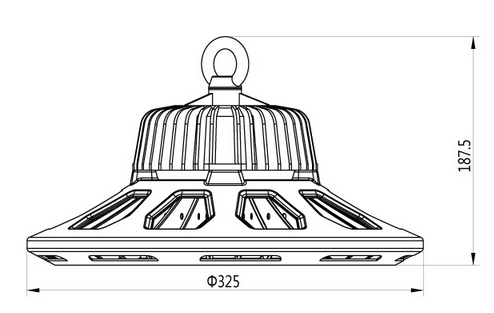

Product size for 150W UFO LED high bay light



Products parameters for 150W UFO LED high bay lights



Item Name New design 150W UFO LED high bay light
Model No. CL-UFO004C150-1
Power 150W
Total Lumen 18,000lm
Product Size(mm) Φ325*187.5
LED Qty 196pcs
LED Driver Meanwell HBG/MOSO
LED Chips Philips Lumileds Luxeon 2D 3030/Osram 3030
Input Voltage AC85-265V  50/60HZ
Power Factor > 0.95
THD <15%
Lightning Protection 6KV or 10KV optional
CCT 3000-6500K
CRI >75
Luminare Efficiency >110lm/w; 150lm/w optional
IP Rating IP65
Warranty 5 Years

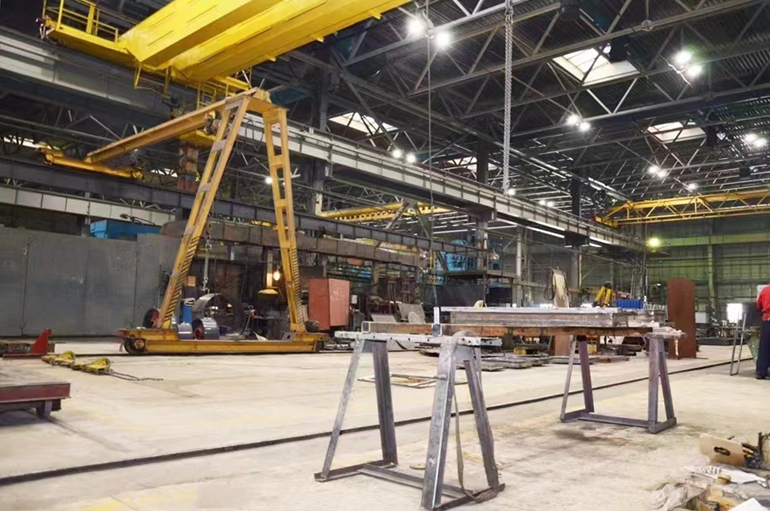

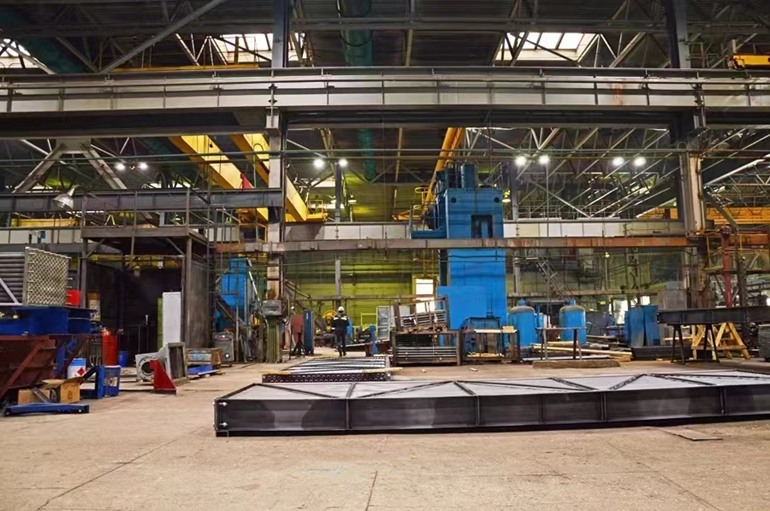

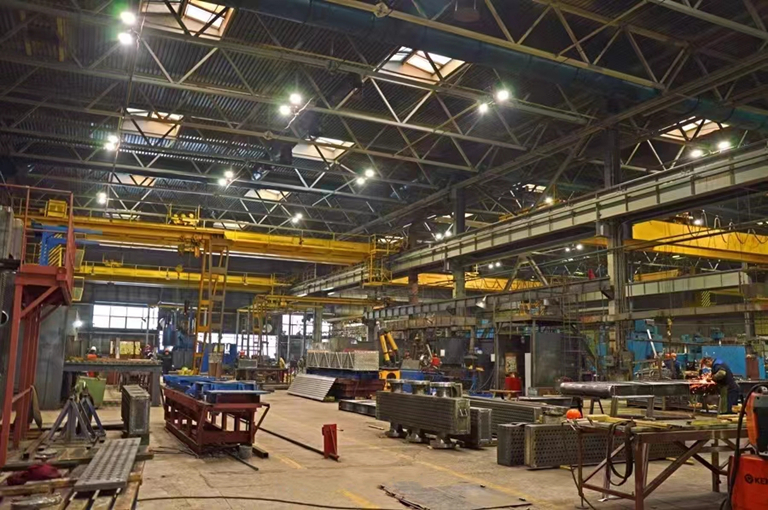

Application for new design 150W UFO LED high bay lights:



✓  Warehouse lighting

✓  Manufacturing facilities, industrial plants.

✓  Sports/Arena area lighting

✓  reading purpose, like library, school, study area, lecture hall lighting, Cinema lighting.

✓  Outdoor lighting

✓  Logistic center, shipyard lighting, car-parking lot lighting.,etc.



Full series for UFO004 series UFO LED high bay lights

004 Series UFO LED high bays is available in 100W, 120W, 150W, 200W and 240W.

120lm/w, Max 150lm/w, with Meanwell or MOSO LED driver, 5 years warranty.

Inquiry Us





Related Products

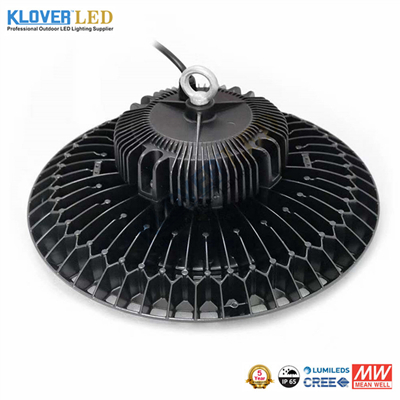

Osram 3030 100W UFO LED high bay light
