China factory wholesale outdoor IP65 high lumen 20W 30W 40W 50W solar street light

Home Solar LED Street Light China factory wholesale outdoor IP65 high lumen 20W 30W 40W 50W solar street light

China factory wholesale outdoor IP65 high lumen 20W 30W 40W 50W solar street light

Item Name:  40W separte solar LED street light

Item No.: CL-SSL0107

Total Lumen: 6000-6500LM;

Luminaire Efficiency: 150lm/w;

Solar panel: 18V 80W Mono-crystalline

Battery: LiFePo4 12.8V 32Ah

LED chips: Bridgelux Or Philips SMD5050

Beam Angle:  75*140°

IP rating: IP65

Color Temperature: 6000-6500K(customize optional)

Color Rending Index: Ra>70

Lifespan: >50,000 Hours

Warranty: 3 Years

Solar LED Street Light, Featured Products2022-04-17k705

Description

China factory wholesale aluminum outdoor IP65 high lumen 15W 20W 30W 50W solar street light

China factory wholesale aluminum outdoor IP65 high lumen 15W 20W 30W 50W solar street light

Quick specification

Model No. Rated Power LED chips Solar panel(Mono crystalline silicon) Battery(LiFePo4) Product size(mm)
SSL0107-15W 15W 50PCS Philips Lumileds 5050 18V 40W 12.8V 18Ah 610*230*130
SSL0107-20W 20W 18V 50W 12.8V 24Ah
SSL0107-30W 30W 18V 60W 3.2V 24Ah
SSL0107-40W 40W 18V 70W 12.8V 30Ah
SSL0107-50W 50W 18V 80W 12.8V 30Ah

Features for China factory wholesale aluminum outdoor IP65 high lumen 15W 20W 30W 50W solar street light

1. Solar panel can be adjusted upward and downward, also in vertical direction, can be adjusted to receive maximum solar power; solar panel is installed directly on the lamp body, easy installation.

2. Lamp body spigot can be adjusted 0-90 degree, for wider light output on the road.

3. Equipped with MTTP controller with built-in microwave sensor.

4. Battery and controller installed inside lamp body, better heat dissipation.

5. Heavy die-casting aluminum alloy housing,extra strong and robust.

6. LM-80 listed Bridgelux or Philips Lumileds 5050 chips, 8 big chips core inside, many times better than 3030 chips, high lumen output.

7. Brand new A1 class LiFePo4 battery, 2000 cycles and lifespan over 10 years.

8. Mono-crystalline with 157*157mm cell, charging efficiency over 21%

9. 5 years warranty.

Specification for China factory wholesale aluminum outdoor IP65 high lumen 15W 20W 30W 50W solar street light

Photos CL-SSL0107-15W Specification Parameter
Features:
1. The Lamp housing adopts ADC No.12 die-casting aluminum alloy patented product.
2. The direction and angle of the solar panel can be adjusted in vertical and horizontal direction.
3.The working mode adopts intelligent human body induction design(microwave sensor), long sensing distance.
4.Beam angle: 140*75 degrees, bat wing light distribution curve
5.Easy to install and maintenance,with automatic switching function.
6.Brand new A1 type LiFePo4 battery, Lumileds/Bridgelux 5050 chips, SRNE or Depower, extra long lifespan
LED Chips Lumileds Or Bridgelux5050(Life time 100000hours)
Lumen 2100-2200LM
Color Temperature 2700K ~6500K
LiFePo4 battery 230.4WH  12.8V 18Ah
Solar panels 18V 40W High efficiency solar panels
Suggested lamp arm diameter 60-65mm
Suggested Installation Height/spacing Suggest install height 4~5m and spacing 10-20m
Charging Time 6-8 hours in sunny weather
Discharge time 100%+30% brightness working, endure 3 Raining days
Rainy Day 4 Rainy Days
Material ADC12 die-casting aluminium
Lamp body Size 610*230*130mm
LED chips 50pcs Lumileds or Bridgelux 5050
With Microwave sensor or not Yes
Water proof IP65
Working Temperature -25ºC to 65ºC
Certification CE,ROHS
Warranty 3 years
Photos CL-SSL0107-20W Specification Parameter
Features:
1. The Lamp housing adopts ADC No.12 die-casting aluminum alloy patented product.
2. The direction and angle of the solar panel can be adjusted in vertical and horizontal direction.
3.The working mode adopts intelligent human body induction design(microwave sensor), long sensing distance.
4.Beam angle: 140*75 degrees, bat wing light distribution curve
5.Easy to install and maintenance,with automatic switching function.
6.Brand new A1 type LiFePo4 battery, Lumileds/Bridgelux 5050 chips, SRNE or Depower, extra long lifespan
LED Chips Lumileds Or Bridgelux5050(Life time 100000hours)
Lumen 2900-3000LM
Color Temperature 2700K ~6500K
LiFePo4 battery 307.2WH  12.8V 24Ah
Solar panels 18V 50W High efficiency solar panels
Suggested lamp arm diameter 60-65mm
Suggested Installation Height/spacing Suggest install height 5~6m and spacing 10-20m
Charging Time 6-8 hours in sunny weather
Discharge time 100%+30% brightness working, endure 3 Raining days
Rainy Day 4 Rainy Days
Material ADC12 die-casting aluminium
Lamp body Size 610*230*130mm
LED chips 50pcs Lumileds or Bridgelux 5050
With Microwave sensor or not Yes
Water proof IP65
Working Temperature -25ºC to 65ºC
Certification CE,ROHS
Warranty 3 years
Photos CL-SSL0107-30W Specification Parameter
Features:
1. The Lamp housing adopts ADC No.12 die-casting aluminum alloy patented product.
2. The direction and angle of the solar panel can be adjusted in vertical and horizontal direction.
3.The working mode adopts intelligent human body induction design(microwave sensor), long sensing distance.
4.Beam angle: 140*75 degrees, bat wing light distribution curve
5.Easy to install and maintenance,with automatic switching function.
6. Brand new A1 type LiFePo4 battery, Lumileds/Bridgelux 5050 chips, SRNE or Depower, extra long lifespan
LED Chips Lumileds Or Bridgelux5050(Life time 100000hours)
Lumen 3600-3700LM
Color Temperature 2700K ~6500K
LiFePo4 battery 307.2WH  12.8V 24Ah
Solar panels 18V 60W High efficiency solar panels
Suggested lamp arm diameter 60-65mm
Suggested Installation Height/spacing Suggest install height 5~6m and spacing 20-25m
Charging Time 6-8 hours in sunny weather
Discharge time 100%+30% brightness working, endure 3 Raining days
Rainy Day 4 Rainy Days
Material ADC12 die-casting aluminium
Lamp body Size 610*230*130mm
LED chips 50pcs Lumileds or Bridgelux 5050
With Microwave sensor or not Yes
Water proof IP65
Working Temperature -25ºC to 65ºC
Certification CE,ROHS
Warranty 3 years
Photos CL-SSL0107-40W Specification Parameter
Features:
1. The Lamp housing adopts ADC No.12 die-casting aluminum alloy patented product.
2. The direction and angle of the solar panel can be adjusted in vertical and horizontal direction.
3.The working mode adopts intelligent human body induction design(microwave sensor), long sensing distance.
4.Beam angle: 140*75 degrees, bat wing light distribution curve
5.Easy to install and maintenance,with automatic switching function.
6.Brand new A1 type LiFePo4 battery, Lumileds/Bridgelux 5050 chips, SRNE or Depower, extra long lifespan
LED Chips Lumileds Or Bridgelux5050(Life time 100000hours)
Lumen 4500-4600LM
Color Temperature 2700K ~6500K
LiFePo4 battery 384WH  12.8V 30Ah
Solar panels 18V 70W High efficiency solar panels
Suggested lamp arm diameter 60-65mm
Suggested Installation Height/spacing Suggest install height 6~7m and spacing 20-25m
Charging Time 6-8 hours in sunny weather
Discharge time 100%+30% brightness working, endure 3 Raining days
Rainy Day 4 Rainy Days
Material ADC12 die-casting aluminium
Lamp body Size 610*230*130mm
LED chips 50pcs Lumileds or Bridgelux 5050
With Microwave sensor or not Yes
Water proof IP65
Working Temperature -25ºC to 65ºC
Certification CE,ROHS
Warranty 3 years
Photos CL-SSL0107-50W Specification Parameter
Features:
1. The Lamp housing adopts ADC No.12 die-casting aluminum alloy patented product.
2. The direction and angle of the solar panel can be adjusted in vertical and horizontal direction.
3.The working mode adopts intelligent human body induction design(microwave sensor), long sensing distance.
4.Beam angle: 140*75 degrees, bat wing light distribution curve
5.Easy to install and maintenance,with automatic switching function.
6.Brand new A1 type LiFePo4 battery, Lumileds/Bridgelux 5050 chips, SRNE or Depower, extra long lifespan
LED Chips Lumileds Or Bridgelux5050(Life time 100000hours)
Lumen 6100-6200LM
Color Temperature 2700K ~6500K
LiFePo4 battery 384WH  12.8V 30Ah
Solar panels 18V 80W High efficiency solar panels
Suggested lamp arm diameter 60-65mm
Suggested Installation Height/spacing Suggest install height 7~8m and spacing 20-25m
Charging Time 6-8 hours in sunny weather
Discharge time 100%+30% brightness working, endure 3 Raining days
Rainy Day 4 Rainy Days
Material ADC12 die-casting aluminium
Lamp body Size 610*230*130mm
LED chips 50pcs Lumileds or Bridgelux 5050
With Microwave sensor or not Yes
Water proof IP65
Working Temperature -25ºC to 65ºC
Certification CE,ROHS
Warranty 3 years

The lighting output for China factory wholesale aluminum outdoor IP65 high lumen 15W 20W 30W 50W solar street light

Charging and discharge test for SSL0107 series solar street light

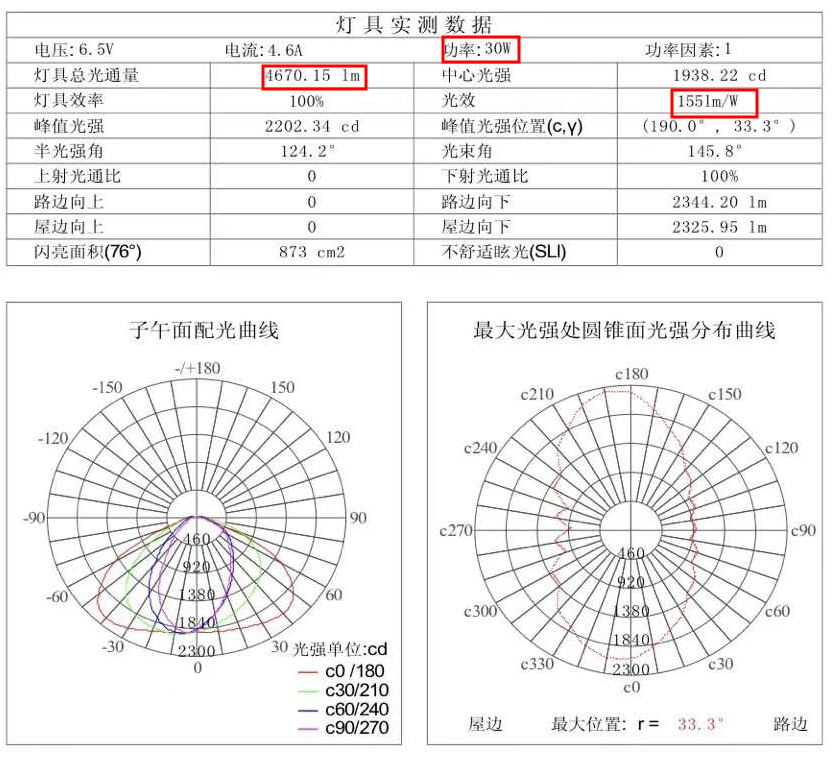

IES test report for China factory wholesale outdoor waterproof 40W 50W solar street light

30W solar street light, luminare efficiency is 155lm/w, equal to 50W AC street light 100lm/w, save city power

IES test report for High lumen 40W solar street light China supplier

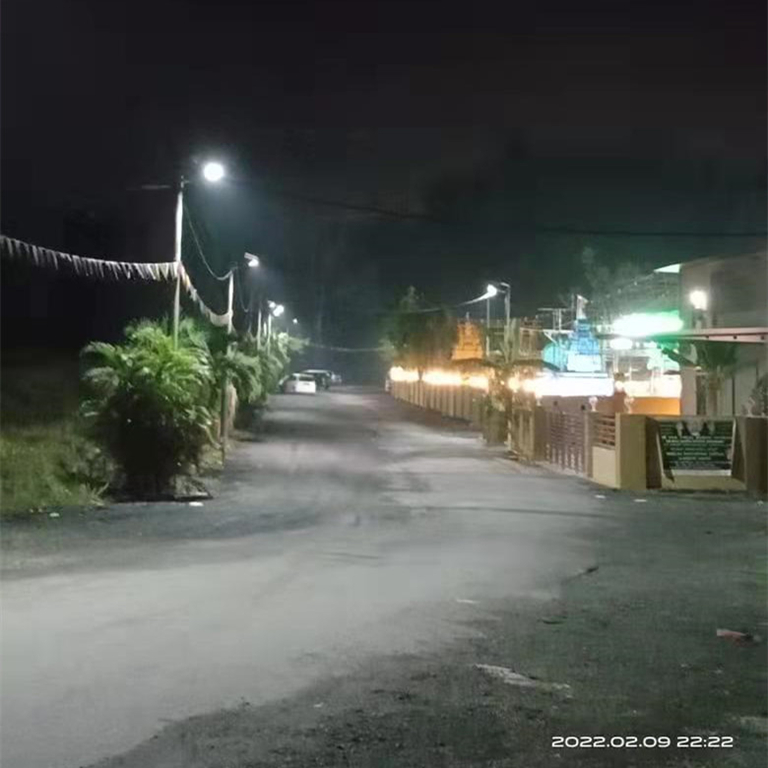

Philippines client feedback pictures for SSL0107 series solar street light
