20W 30W 40W Integrated All In One Solar Street Light with Microwave Sensor

Home Solar LED Street Light 20W 30W 40W Integrated All In One Solar Street Light with Microwave Sensor
[caption id="attachment_2410" align="alignnone" width="1000"]30W high lumen all in one solar street light China supplier for 20W all in one solar street light[/caption]

20W 30W 40W Integrated All In One Solar Street Light with Microwave Sensor

20W 30W 40W  Integrated All In One Solar Street Light with Microwave Sensor

Item Name:  20W solar LED street light

Item No.:CL-SSL08131-20W

Total Lumen: 3000-3500LM;

Luminaire Efficiency: 160lm/w;

Solar panel: 18V 40W Mono-crystalline

Battery: LiFePo4 12.8V 18AH

LED chips: Philips Lumileds 3030 50pcs

Lamp reflector:  75*140°

IP rating: IP65

Color Temperature: 6000-6500K(customize optional)

Color Rending Index: Ra>70

Lifespan: >50,000 Hours

Warranty: 3 Years

Solar LED Street Light2019-06-02k705

Description

China manufacturer for 20W 30W 40W integrated all in one solar street light with Microwave sensor

high lumen all in one solar street light

30W all in one solar street light manufacturer

20W 30W 40W integrated all in one solar street light with Microwave sensor

1. Heavy die-casting aluminum alloy, extra strong and robust.
2. LM-80 listed CREE 3030 LED chips, Osram/Phi-lips/Bridgelux/Epistar 3030 optional, maximum light source 200lm/w.
3. Monocrystalline solar panel, charging efficiency over 17%
4. Brand new A1 type LiFePo4 battery, Dod>80% after 2000 cycles, not recycled battery.
5. SRNE, Depower or Remote power controller, top quality.
6. Luminaire efficiency: 161lm/w
7. Adjustable end tail, for wider lighting output.
8. With optical lens, 150*75 degree, bat wing light transmission
9. Equipped with Microwave sensor or PIR sensor for more energy saving, enlong lighting time
10. Charging time 6-8hours, discharge time over 24 hours.

Nowadays too many suppliers are using car recycled battery as power bank, but we are using brand new LiFePo4 battery to guarantee our quality.
3 years warranty, but actual running at least 5 years.

high lumen 40W solar street light

battery for 40W solar street light, brand new, not recycled


20W 30W 40W solar street light

solar street light manufacturer


30W high lumen all in one solar street light

China supplier for 20W/30W/40W all in one solar street light

Specification for 20/30/40W all in one solar street light

Product Name 20W all in one solar street light 30W all in one solar street light 40W all in one solar street light
Model Number CL-SSL08131-20W CL-SSL08131-30W CL-SSL08131-40W
Rated Power 20W 30W 40W
Product Size(mm) 380*380*70 840*350*75 1090*350*75
Beam Angle 150*75 degree
LED Controller SRNE, Depower or Remote power
LED Chips CREE SMD3030/Osram SMD3030/Phi-lips Luxeon SMD3030/Bridgelux SMD3030
LED Quantity 50pcs 3030
Luminaire Effciency  150-160lm/w
Solar panel Mono-crystalline 18V 40W Mono-crystalline 18V 50W Mono-crystalline 18V 60W
Battery LiFePo4 12.8V 18Ah LiFePo4 12.8V 24Ah LiFePo4 12.8V 36Ah
Charging time 6-8 hours
Discharge time >24 hours
Installation height 3-4m 5-6m 6-7m
Light Color Warm White/Natural White/Cool White
Color Temperature 2700-3300K/4000-4500K/6000-6500K
CRI Ra>75, higher CRI available
UGR <19
IP Rating IP67
Working Temp  -30ºC To 60ºC
Material Die-casting aluminum alloy
Lifespan >50,000 hours
Warranty 3 years

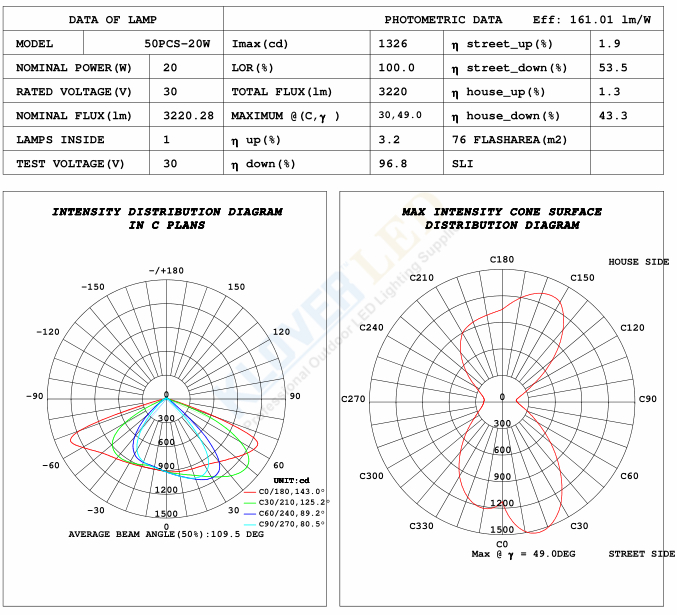

Test report for 20W all in one solar street light

high lumen 20W integrated solar street light

20W solar street light reach 160lm/w

Production for our all in one solar street light

production for all in one solar street light

production for our all in one solar street light


solar street light manufacturer

Klover lighting offer outdoor LED lights like solar street light, LED street light, LED flood lights, LED canopy light, LED high bay light.,etc
