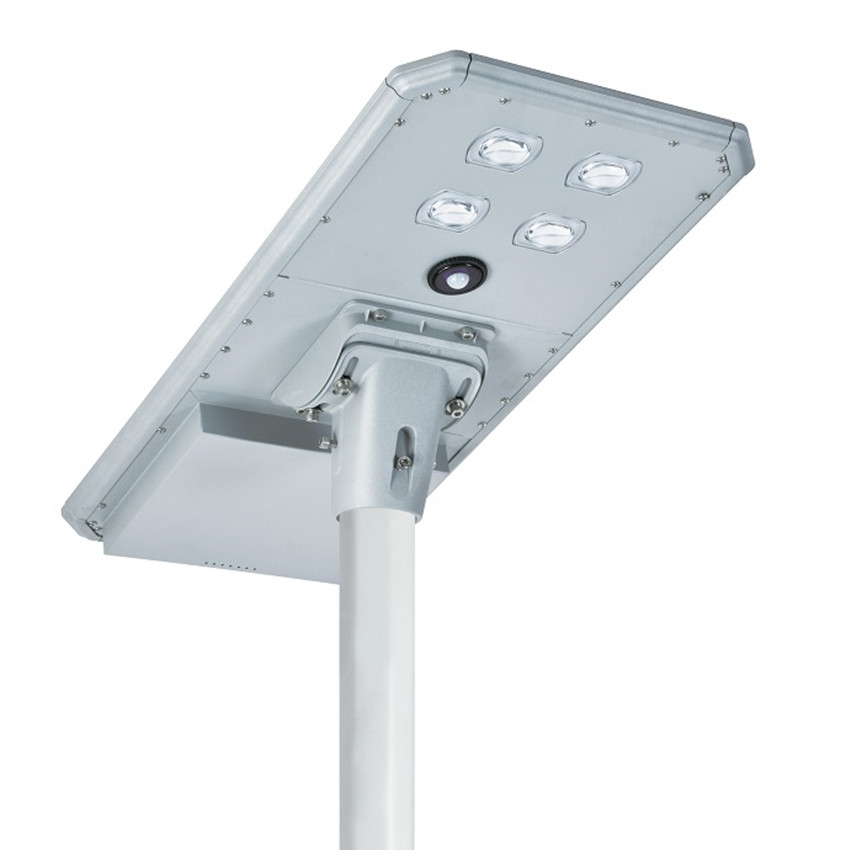

[caption id="attachment_2492" align="alignnone" width="850"] 20W all in one soar street light with PIR sensor

PIR Sensor or Microwave sensor all in one solar street light with removable battery box[/caption]

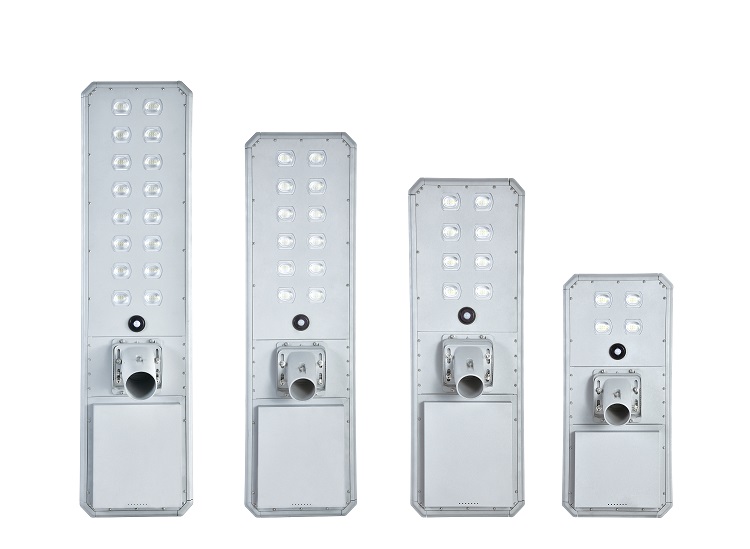

2022 New Design PIR Sensor 20W 30W 40W 60W All In One Solar LED Street Light

Item Name: 20W all in one solar LED street light

Item No.: CL-SSL0016-20W

Total Lumen: >3400LM;

Luminaire Efficiency: 170lm/w;

Solar panel: 18V 50W Mono-crystalline

Battery: LiFePo4 12.8V 24Ah

LED chips: Philips SMD3030 40pcs

Beam Angle: 75*140°

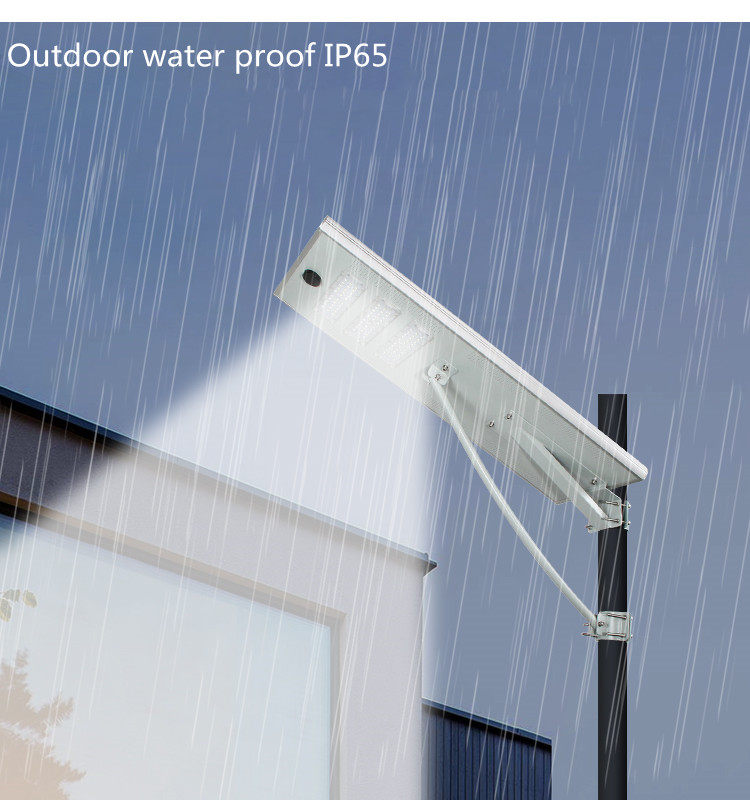

IP rating: IP65

Color Temperature: 6000-6500K(customize optional)

Color Rending Index: Ra>70

Lifespan: >50,000 Hours

Warranty: 3 Years

Solar LED Street Light, Featured Products

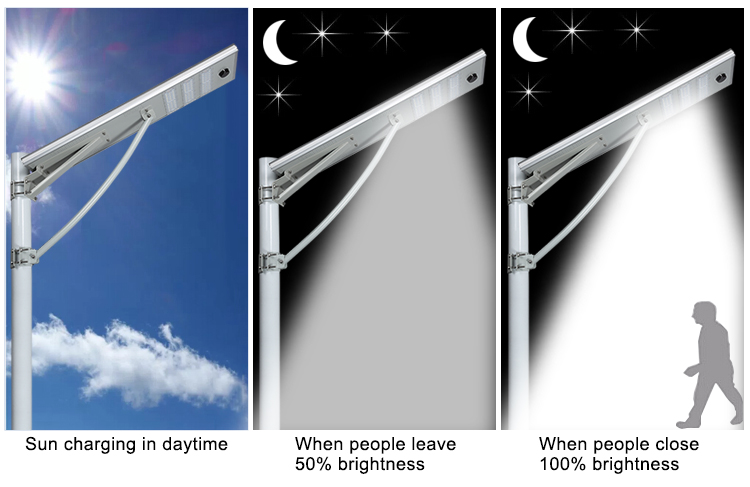

100% brightness when detect people, 30% brightness when normal lighting for energy saving

2022 New Design PIR Sensor All In One Solar LED Street Light

Power: 20/30/40/60W optional

Type: All in one

Key Features:

For materials:

For structure:

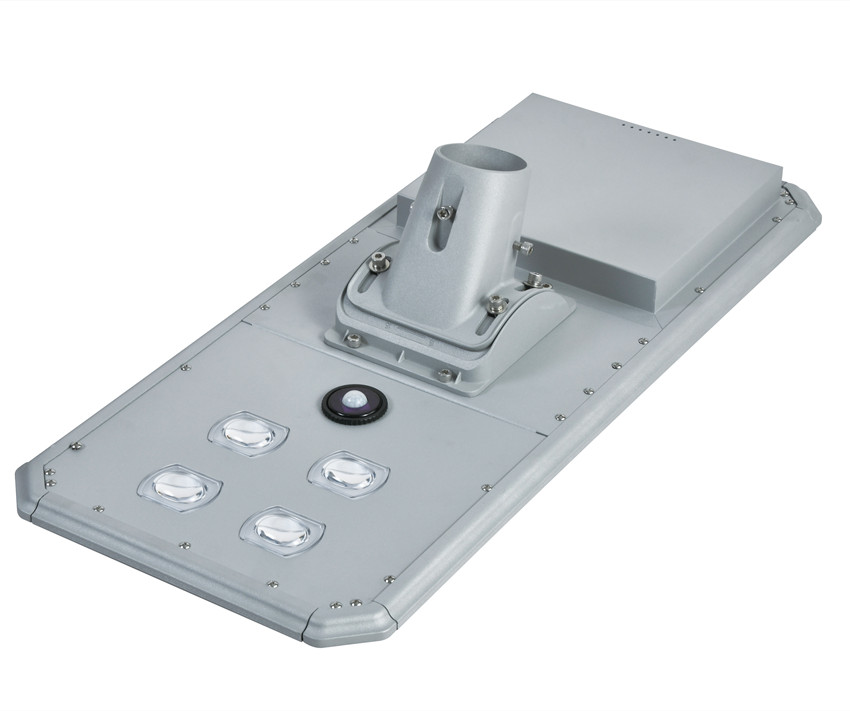

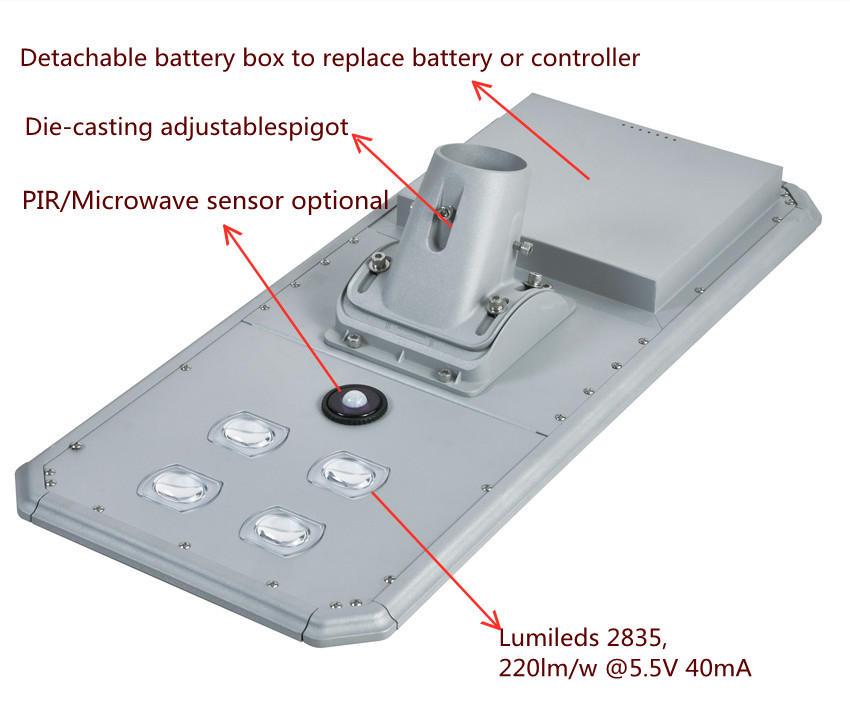

Easy open battery box for replace battery, different from traditional all in one type.
Adjustalbe die-casting aluminum alloy spigot.

For Lighting mode:

Turn on at dusk and turn off at dawn automatically.

3 working mode optional:

PIR sensor, or microwave sensor type, dimming type available.

Endure 5-6 rainy days

Quick specification

Product breakdown

180-190lm/w all in one solar street light

By using 128pcs Philips Lumileds high lumen 2835 chips, peak power 20W, one LEDs is 0.156W.

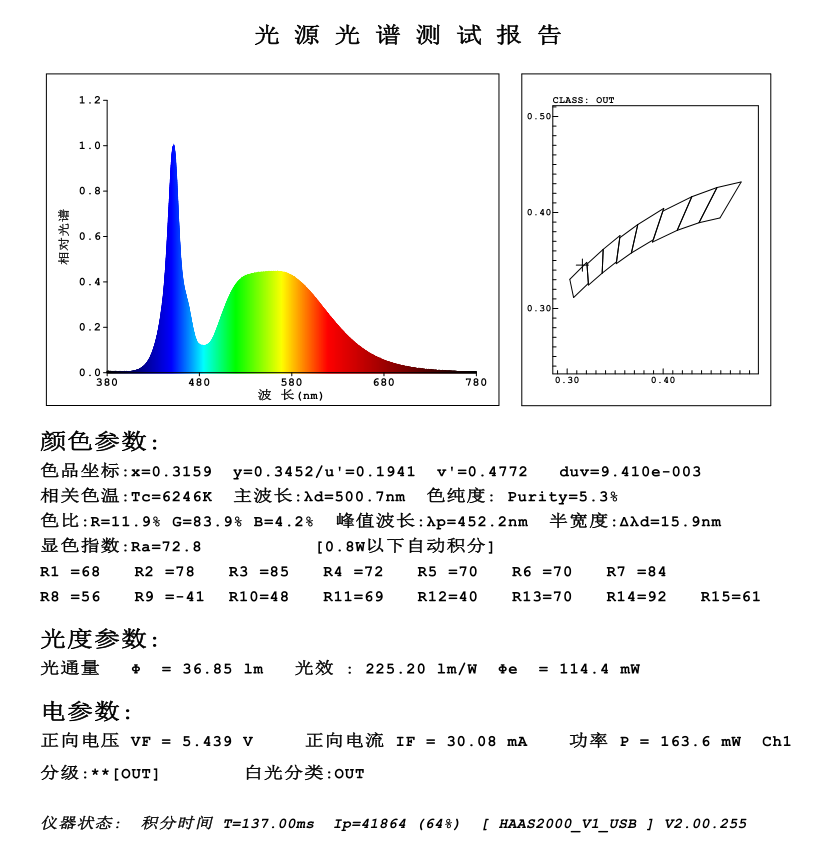

Philips Lumileds 2835 reach 225lm/w under condition @5.44V 30mA, 0.163W

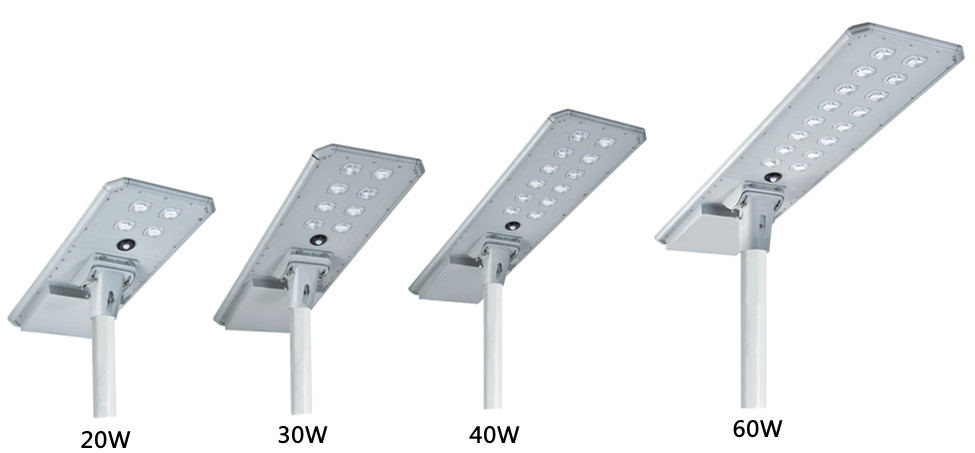

20w 30w 40w 60w all in one solar street light with detachable battery box

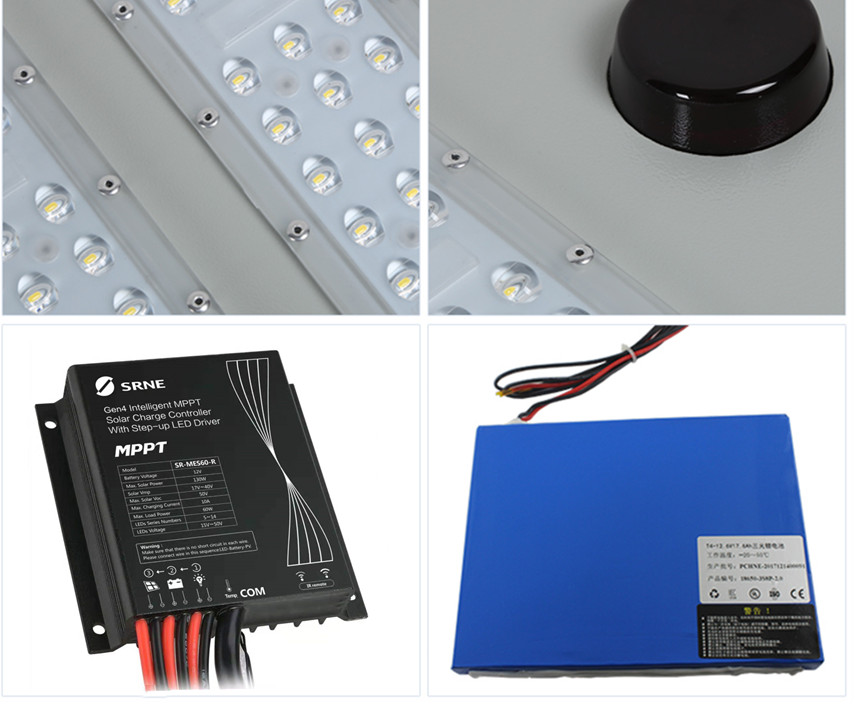

The main component for our all in one solar LED street light

High lumen Philips Lumileds 2835 chips

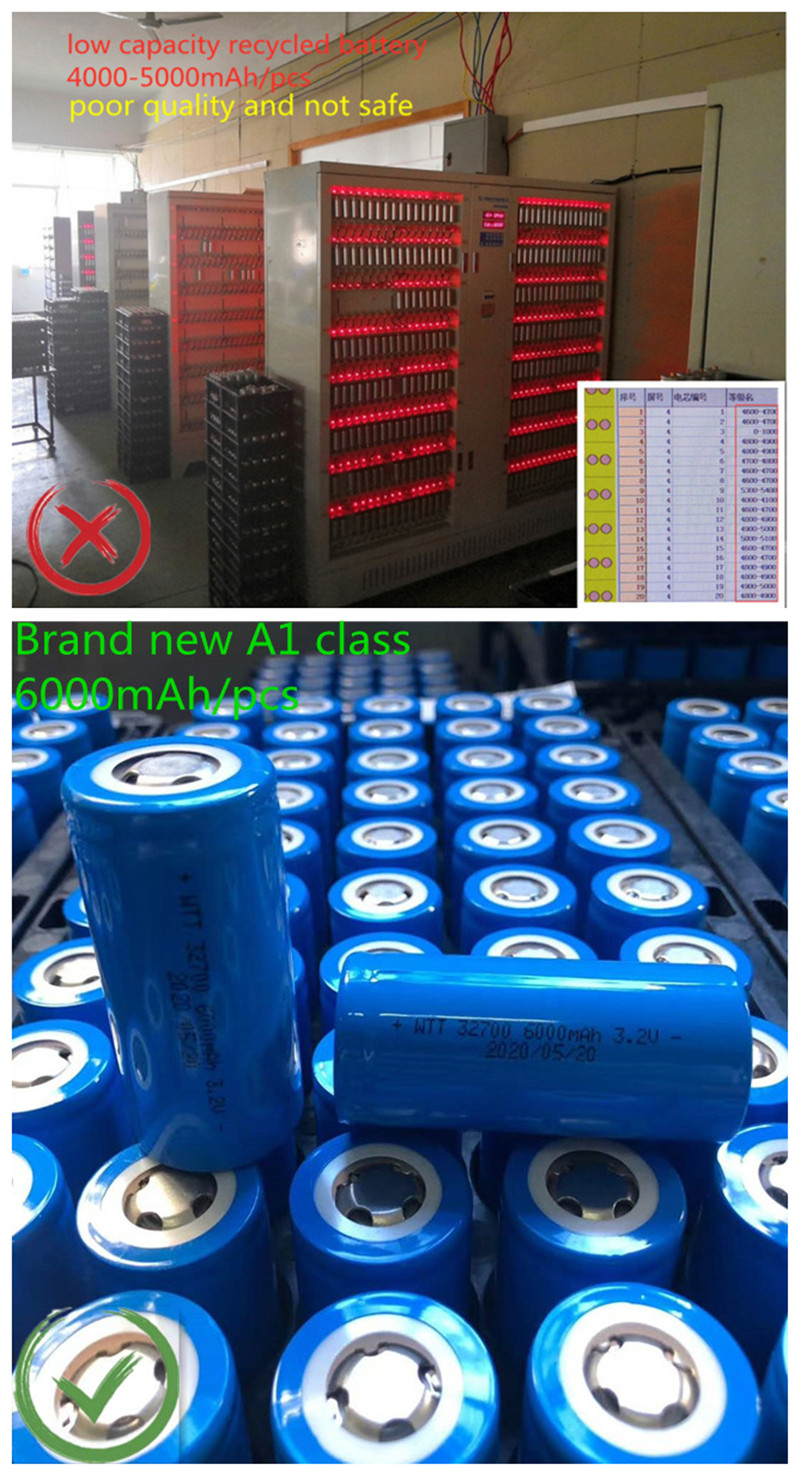

Brand new A1 class battery, not car recycled, more safety, higher capacity, longer lighting time, longer lifespan, quality guaranteed.
SRNE MPPT controller, charging efficiency is 40%-50% higher than normal PWM controller.

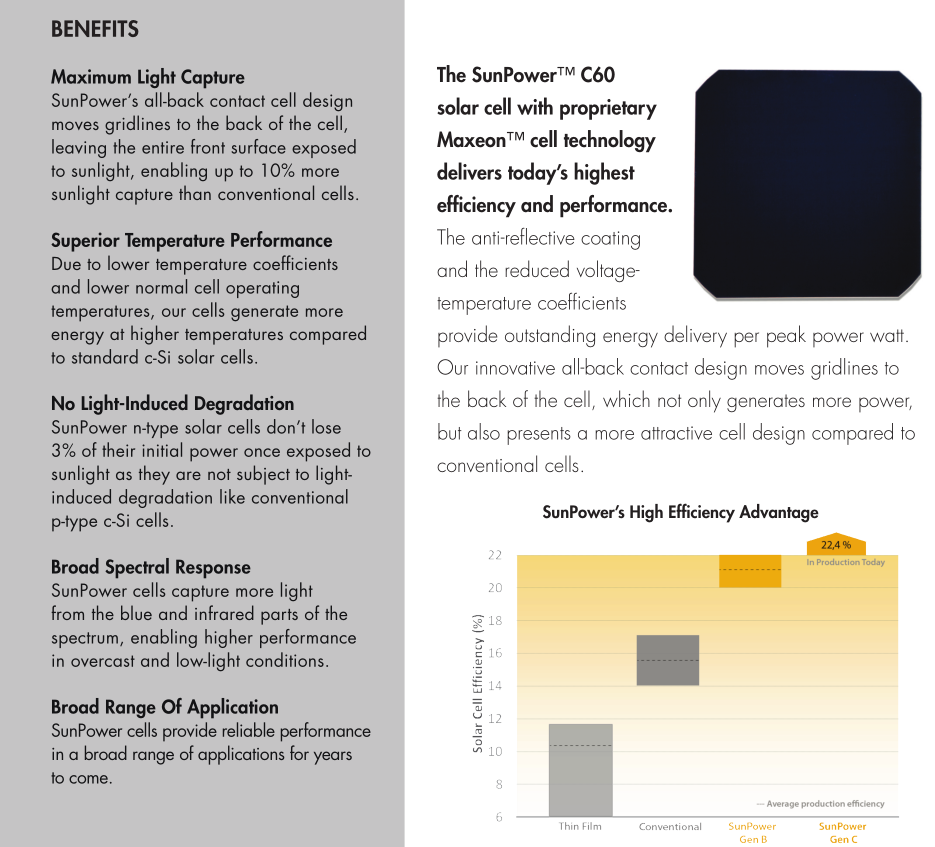

High quality mono-crystalline solar panel, Sunpower cell solar panel optional.
