High lumen Bridgelux COB 45mil 120W LED high bay lights

Home LED High Bay Lights High lumen Bridgelux COB 45mil 120W LED high bay lights
120W LED high bay lights

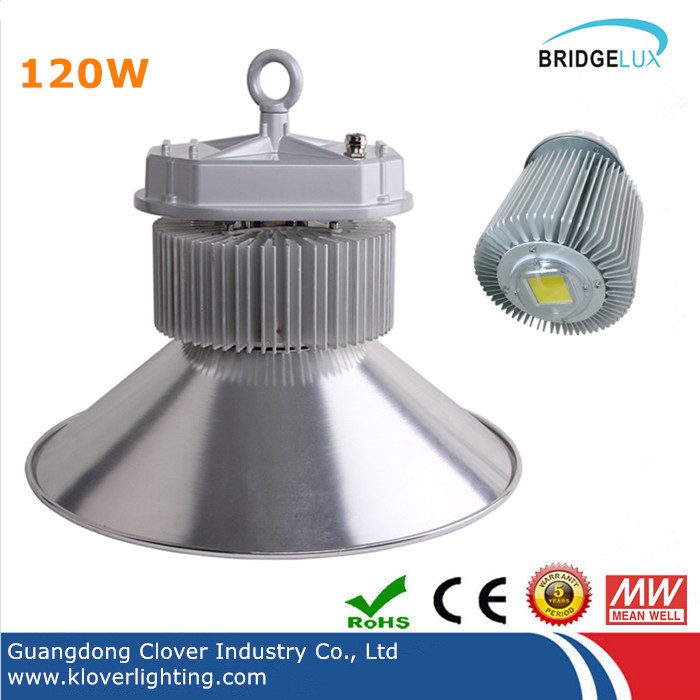

High lumen Bridgelux COB 45mil 120W LED high bay lights

Item Name: 120W LED high bay lights

Model No.: CL-HBL003A120-01

Total Lumen: >12,000lm, 100-110lm/w

LED Driver: Meanwell ELG/HLG, MOSO, SOSEN

LED chips: Bridgelux 45mil

Lamp reflector: 45°, 60°, 90°, 120°optional

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95  THD: <15%   Ra: >80

IP rating: IP44

Color Temperature: 2700-6500K optional

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

LED High Bay Lights, COB LED High Bay Lights2017-06-21k705

Description

High Lumen Bridgelux COB 45mil 120W LED high bay lights

Item Number: CL-HBL003A120-01

Bridgelux 45mil 120W LED high bay lights

high lumen 120WW LED high bay lights



Specifications for High lumen Bridgelux COB 120W LED high bay light

Item Name 120W LED High Bay Light
Model No. CL-HBL003A120-01
Power 120W
Total Lumen >1,200lm
Heat Radiator Size(mm) Φ 240*90
Beam Angle 45°, 60°, 90°, 120° for frosted aluminum,
Input Voltage AC85-265V  50/60HZ
Power Factor > 0.95
THD <15%
Lightning Protection 6KV or 10KV optional
CCT 3000-6500K
CRI >75
Luminare Efficiency >100lm/w
IP Rating IP65
LED Driver Meanwell ELG/HLG or MOSO
LED Chips High Lumen Bridgelux COB 45mil
Warranty 5 Years

Features for 120W LED high bay lights with Bridgelux COB chips



✓ High purity extruted 6063 aluminum alloy, with phrase change technology, the heat dissipation is much better than aluminum radiator.

✓ The lamp reflactor with 45°, 60°, 90°, 120°optional

✓ High power high lumen Bridgelux 45mil LED chips, the luminaire efficiency reach 110lm/w, with low light decline.

✓ Meanwell HLG, ELG, MOSO or SOSEN driver optional, stable performance, high power fector for more energy saving, all driver with CE, FCC, TUV, UL certifications.

✓ Comply with EU, AU, US standards.

✓ 5 years warranty

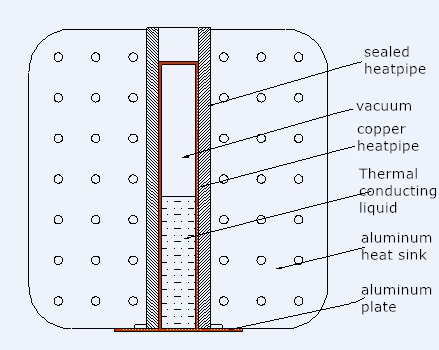

The phrase change technology for 120W LED high bay lights



new technology for high lumen 120W LED high bay lights

This design will allow thermal transmission much more efficent than normal extruted aluminum alloy.

Thus significantly reduce LED chips temperature and extend it’s lifespan, we are using the latest LED technology on board, with very low light decline,(1-2% per year), together this technology, to enlong LEDs lifespan largely.

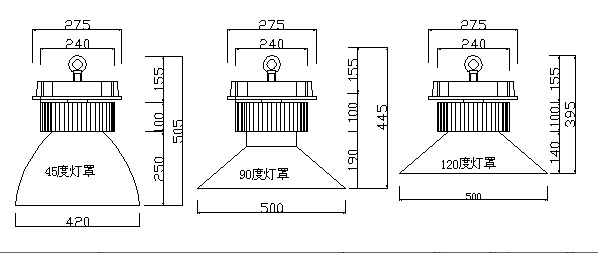

Product size for high lumen Bridgelux 45mil COB 120W LED high bay lights

120W LED high bay light size

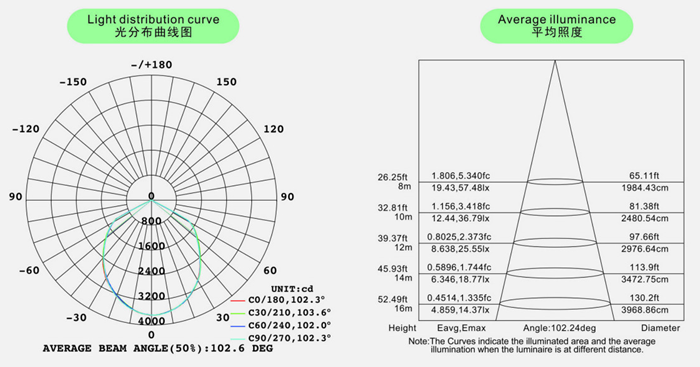

The light distribution curve for 120W LED high bay lights



120W LED high bay light light distribution curve
