200W Industrial LED high bay lighting

Home LED High Bay Lights 200W Industrial LED high bay lighting

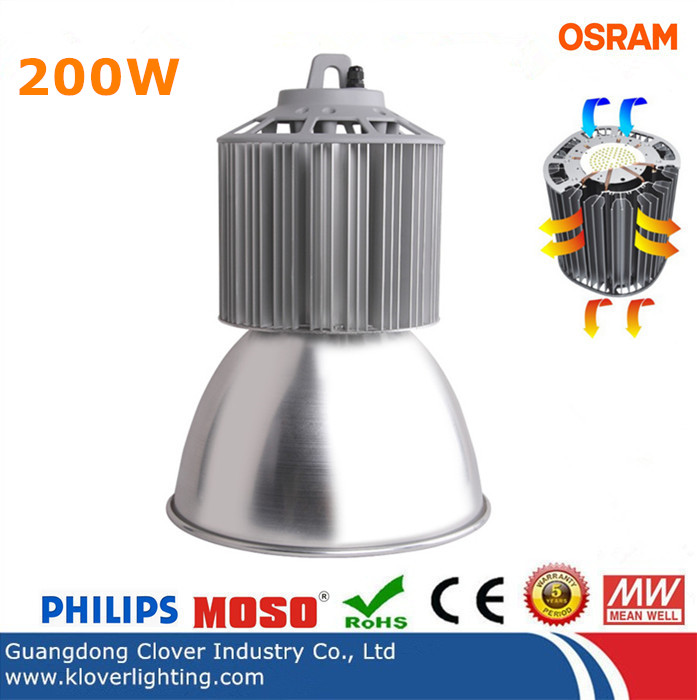

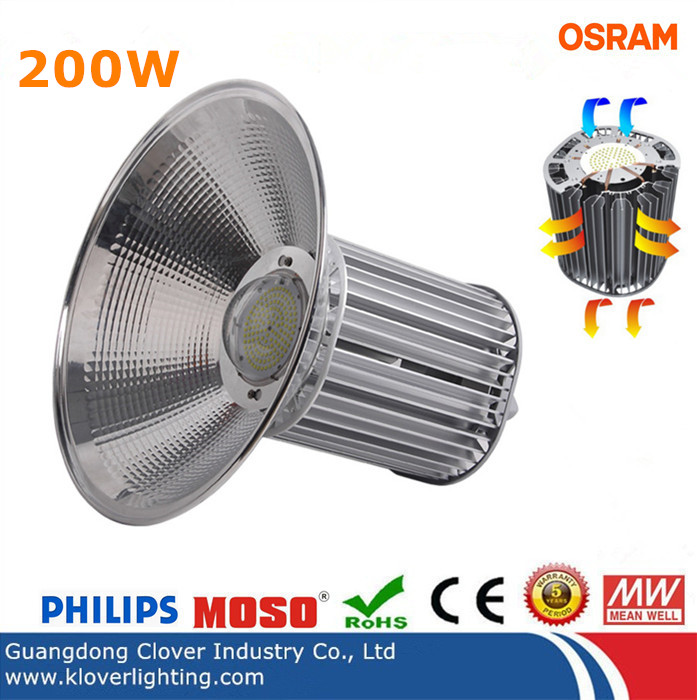

Factory wholesale 200W industrial LED high bay lightsphilips SMD3030 200W industrial LED high bay lightingOsram 3030 200W industrial LED high bay lights

200W Industrial LED high bay lighting

Item Name:  200W industrial LED high bay lighting

Item No.: CL-HBL002E200-01

Total Lumen: >22,000lm; 110lm/w; 150lm/w optional

LED Driver: Meanwell ELG/HLG, MOSO, SOSEN

LED chips: Osram or Philips SMD3030

Lamp reflector: 45°, 60°, 90°, 120°optional

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95 THD: <15%

IP rating: IP44

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

Certifications: CE, RoHs, CB, SAA, TUV

Lifespan: >50,000 Hours

Warranty: 5 Years

LED High Bay Lights, SMD LED High Bay Lights2017-06-27k705

Description

200W Industrial LED high bay lighting

Item Number: CL-HBL002E200-01

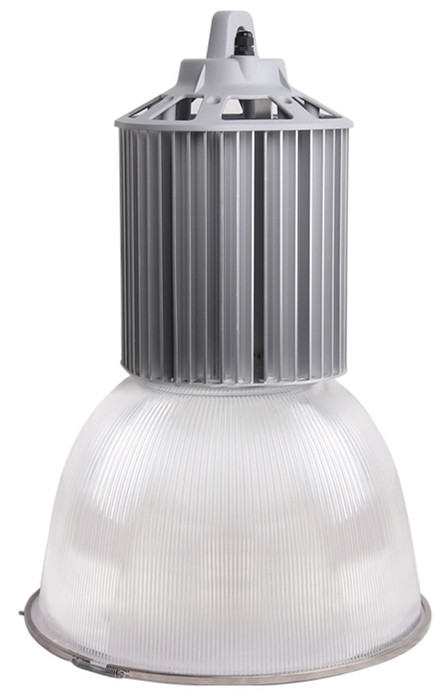

200W industrial LED high bay lighting

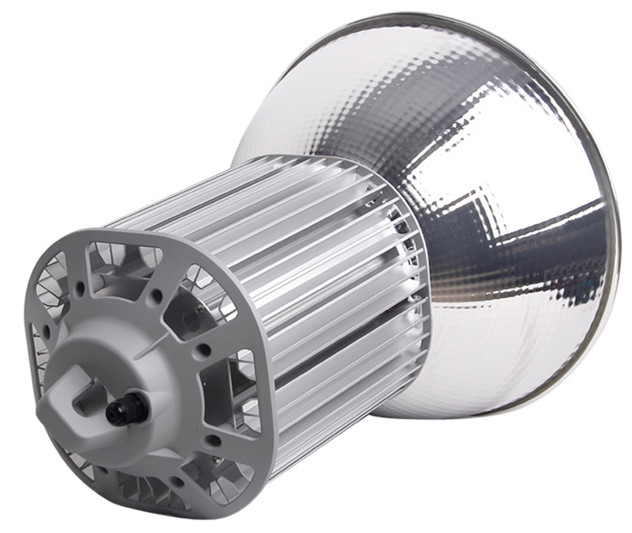

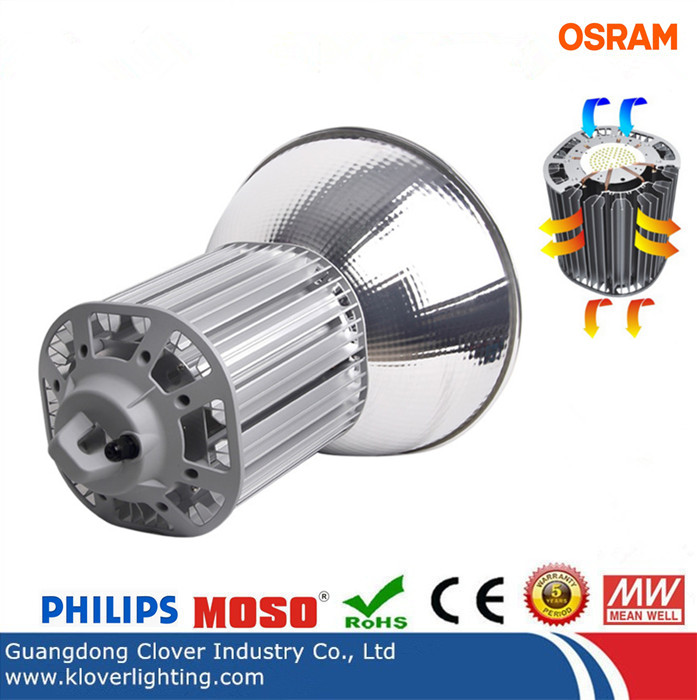

Osram 3030 200W industrial LED high bay lighting

Specification for 200W Industrial LED high bay lighting

Item Name 200W LED High Bay Light
Model No. CL-HBL002E200-01
Power 200W
LED Driver Meanwell ELG/HLG or MOSO
Input Voltage AC85-265V  50/60HZ
LED Chips Osram SMD3030 or Philips Lumileds 3030
Total Lumen >22,000lm
Luminare Efficiency >110lm/w, 150lm/w optional
Heat Radiator Size(mm) Φ225*H240
Beam Angle 45°, 60°, 90°, 120° optional
Power Factor > 0.95
THD <15%
Housing Copper heatpipe aluminum alloy
Power Cable CE, VDE, TUV, UL listed
Light Color Warm White Natural White Cool White
Color Temperature 2700-3300K 4000-4500K 6000-6500K
CRI >75, higher CRI optional
IP Rating IP44
Working Temperature  -35℃  to  60℃
Lifespan >50,000 hours
Certifications CE, ROHS
Warranty 5 Years

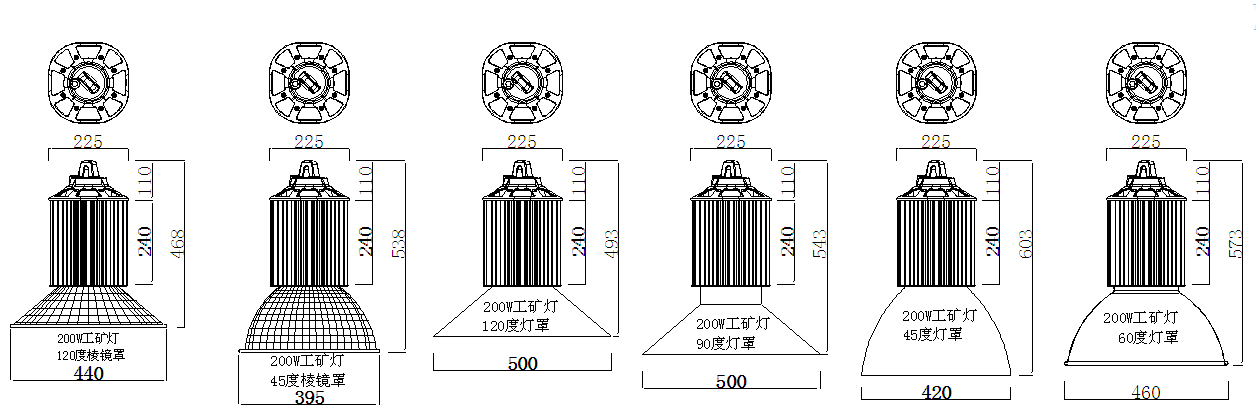

Product size for 200W Industrial LED high bay lighting

size for 200W industrial LED high bay lighting

Features for 200W Industrial LED high bay lighting

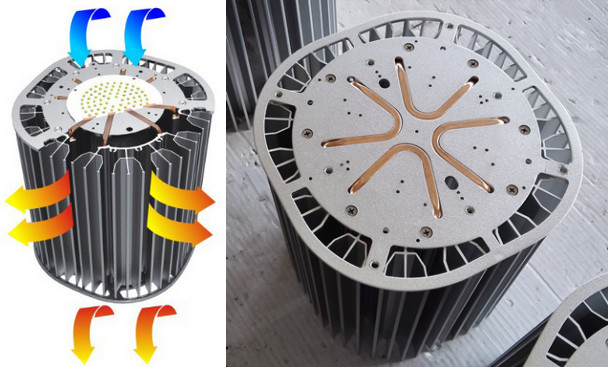

✓  Excellent heat dissipation, for using the latest copper heatpipe riveting technology and material.

LED high bay lighting materials

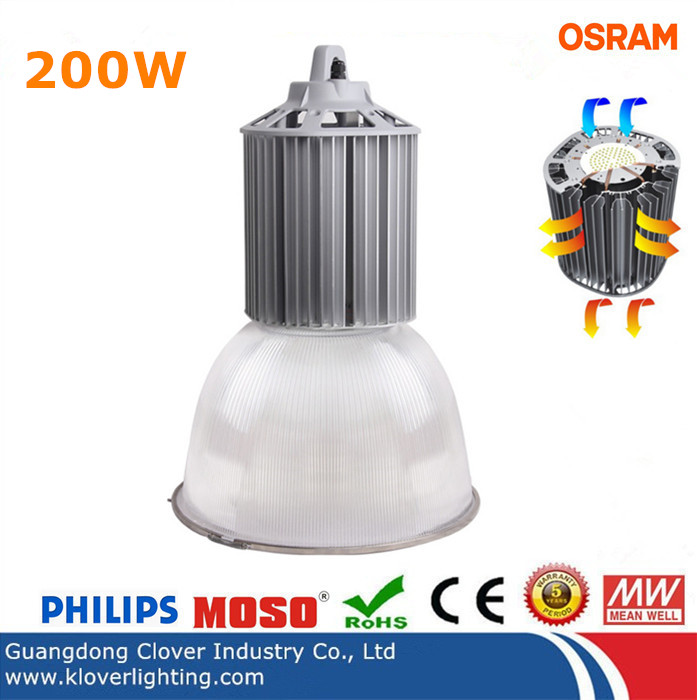

✓  Different High bay lighting reflector optional, in 45°, 60°, 90°, 120°; Normal frosted reflector and flake reflector optional; acrylic reflector optional in 45°.

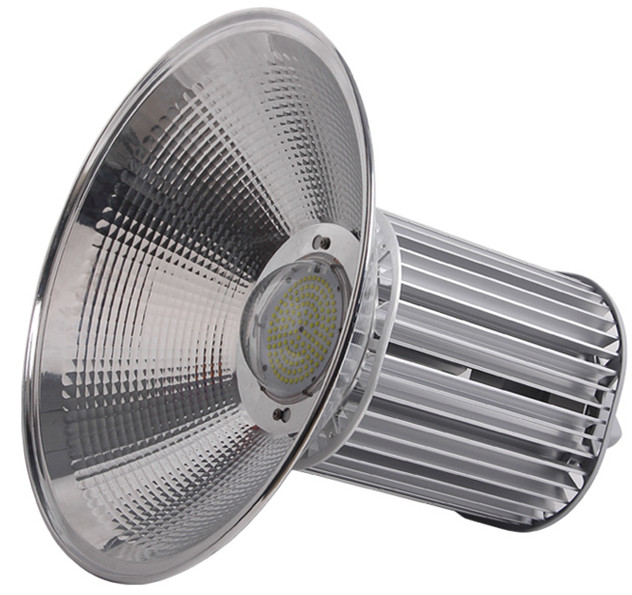

 200W industrial LED high bay lighting

✓  Osram or Philips SMD3030 LED chips optional, upto 120lm/w; Bridgelux SMD3030 with luminaire effciency 150lm/w, all light sources are LM-80 listed.

✓  Super bright and low light decay, in hot area/countries, about 2% light decline per year, normal temperature countries 1% light decline per year. remain 80% brightness after 10 years lighting.

✓  Free of replacement or maintenance, because we are using the best LED driver(Meanwell or MOSO).

✓  Comply with CE, EMC, LVD, FCC, TUV, CB, SAA.,etc

✓  5 year quality warranty



Benifits for 200W Industrial LED high bay lighting



✓  Eye protection, soft light, anti-glare, no light pollution, all LED chips with IEC62471, GROUP 1, photobiological safety.

✓  Anodised and chemically treated reflector give higher reflectance.

✓  Super brightness, good to replace 500-700W HPS or Metal Halide high bay lighting, with extremely lifespan.

✓  Extra long lifespan, 5 year warranty but actually can light up for over 10 years
